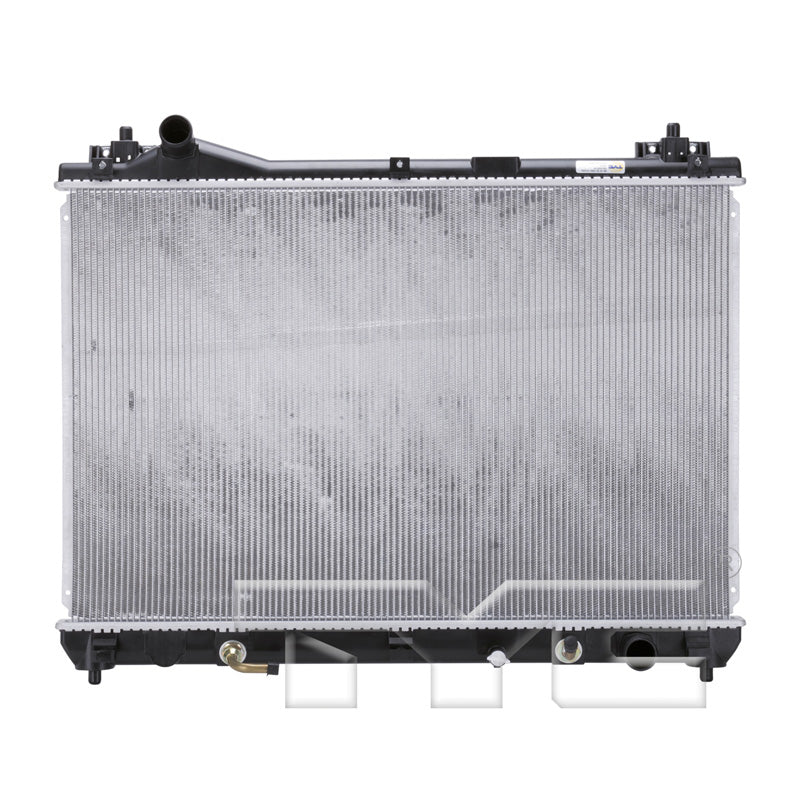

TYC 2920 Radiator Assembly for 2006-2010 Suzuki Grand Vitara

TYC 2920 Radiator Assembly for 2006-2010 Suzuki Grand Vitara
    TYC 2920 Radiator Assembly for 2006-2010 Suzuki Grand Vitara
TYC 2920 Radiator Assembly for 2006-2010 Suzuki Grand Vitara
Brand: TYC
$293.51 CAD
$293.51 CAD
Shipping calculated at checkout.

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.

2920
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Product Description

Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

  • Toc Inlet Type: Tube fitting
  • Fin Count (every 4"): 78
  • Core Material: Aluminum
  • Core Length (in): 17.72
  • Inlet Connection Type: Hose Clamp
  • Core Height (in): 27.07
  • Accessories Included: Pipe M14*P1.0*2
  • Toc Outlet Type: Tube fitting
  • Transmission Oil Cooler Included: Yes
  • Fin Wave Height (in): 0.2
  • Total Fin Row Count: 106
  • Tube Width X Height: 16x1.5
  • Engine Oil Cooler Included: No
  • Transmission Oil Cooler Type: Concentric Oil Cooler
  • Inlet Diameter (in): 1.34
  • Fin Wave Pitch: 2.6
  • Toc Distance (in): 13.78
  • TOC Inlet Diameter (IN): 0.39
  • Core Thickness (in): 0.63
  • Bottom Header: 2.02x28.32
  • Outlet Diameter (in): 1.36
  • Top Header: 2.02x28.32
  • Flow Configuration: Downflow
  • TOC Outlet Diameter (IN): 0.39
  • Tube Count (every 4"): 16
  • Total Tube Count: 105
  • No. Of Rows: 1
  • Outlet Connection Type: Hose Clamp

Package Details

  • Part Number: 2920
  • 06-10 SZ GRD VTARA 2.7/3.2L V6 A/MT 1R PA RAD
  • Package L x W x H: 25.20" x 5.31" x 29.72"
  • Package Weight: 10.86 lbs.

Interchanges

  • Suzuki: 17700-66J10
  • DENSO: 221-9410
  • CSF: 3443
  • Vista Pro: 434034
  • Silla Cooling: 7474
  • APDI: 8012920
  • Spectra Premium: CU2920
  • Partslink: SZ3010139

Vehicle Fitment Table

Year Make Model Position Fitment Precision Note
2006 Suzuki Grand Vitara Base; 2.7L V6 2737cc; Sport Utility; Automatic, Primary / Luxury; 2.7L V6 2737cc; Sport Utility; Automatic, Primary / XSport; 2.7L V6 2737cc; Sport Utility; Automatic, Primary
2006 Suzuki Grand Vitara Premium; 2.7L V6 2737cc; Sport Utility; Automatic, Primary
2007 Suzuki Grand Vitara Base; 2.7L V6 2737cc; Sport Utility; Automatic, Primary / Luxury; 2.7L V6 2737cc; Sport Utility; Automatic, Primary / XSport; 2.7L V6 2737cc; Sport Utility; Automatic, Primary
2008 Suzuki Grand Vitara Base; 2.7L V6 2737cc; Sport Utility; Automatic, Primary / Luxury; 2.7L V6 2737cc; Sport Utility; Automatic, Primary / XSport; 2.7L V6 2737cc; Sport Utility; Automatic, Primary
2009 Suzuki Grand Vitara Luxury; 3.2L V6 3195cc; Sport Utility; 3.2L V6 3195cc, Primary
2009 Suzuki Grand Vitara XSport; 3.2L V6 3195cc; Sport Utility; 3.2L V6 3195cc, Primary
2010 Suzuki Grand Vitara Limited; 3.2L V6 3195cc; Sport Utility; 3.2L V6 3195cc, Primary
2010 Suzuki Grand Vitara XSport; 3.2L V6 3195cc; Sport Utility; 3.2L V6 3195cc, Primary

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 2920.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
