Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

• Bottom Header: 1.69x16.87
• Core Thickness (in): 0.87
• Inlet Connection Type: Hose Clamp
• Fin Count (every 4"): 73
• Core Length (in): 26.38
• Tube Width X Height: 22x2
• TOC Inlet Diameter (IN): 0.39
• Top Header: 1.69x16.87
• Total Fin Row Count: 40
• Core Material: Aluminum
• Toc Outlet Type: Tube fitting
• Outlet Connection Type: Hose Clamp
• Flow Configuration: Crossflow
• Core Height (in): 15.67
• TOC Outlet Diameter (IN): 0.39
• Outlet Diameter (in): 1.48
• Total Tube Count: 39
• Toc Inlet Type: Tube fitting
• Tube Count (every 4"): 10
• Engine Oil Cooler Included: No
• Toc Distance (in): 10.83
• No. Of Rows: 1
• Inlet Diameter (in): 1.48
• Fin Wave Height (in): 0.31
• Transmission Oil Cooler Type: Plate Oil Cooler
• Fin Wave Pitch: 2.8
• Transmission Oil Cooler Included: Yes

Package Details

• Part Number: 2892

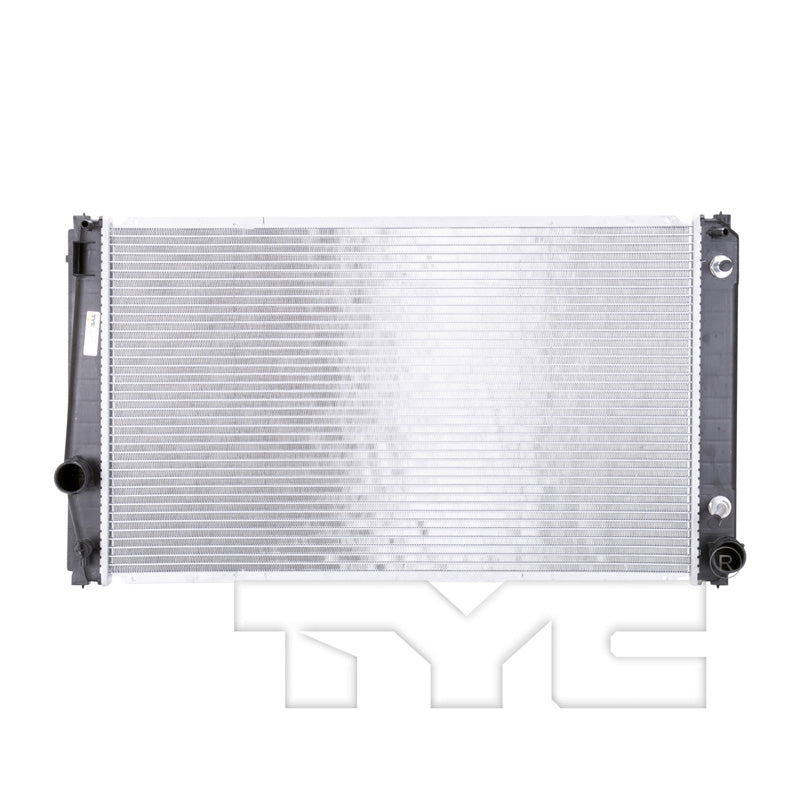

• 06-09 TY RAV-4 3.5L V6 1R PA (w/o TOW) RAD
• Package L x W x H: 18.90" x 5.31" x 32.68"
• Package Weight: 10.61 lbs.

Interchanges

• Toyota: 16400-0P230
• Toyota: 16400-31420
• DENSO: 221-3162
• CSF: 3316
• APDI: 8012892
• Spectra Premium: CU2892
• Reach Cooling: REA41-2892A
• Partslink: TO3010307

Vehicle Fitment Table

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 2892.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
