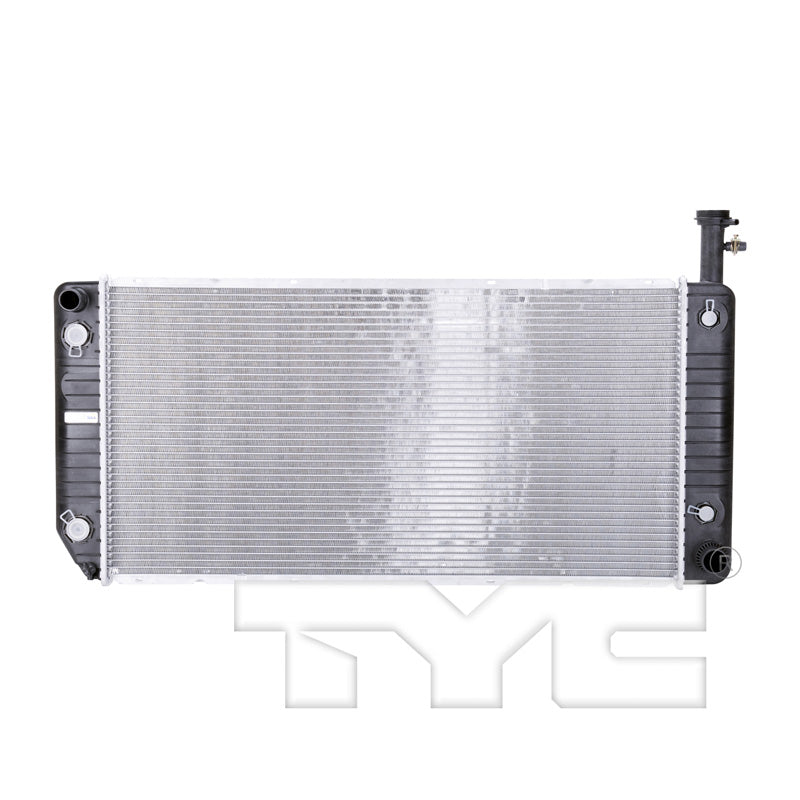

TYC 2866 Radiator Assembly for 2005-2008 Chevrolet Express 2500

TYC 2866 Radiator Assembly for 2005-2008 Chevrolet Express 2500
    TYC 2866 Radiator Assembly for 2005-2008 Chevrolet Express 2500
TYC 2866 Radiator Assembly for 2005-2008 Chevrolet Express 2500
Brand: TYC
$457.83 CAD
$457.83 CAD
Shipping calculated at checkout.

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.

2866
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Product Description

Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

  • Inlet Connection Type: Hose Clamp
  • Inlet Diameter (in): 1.3
  • Fin Wave Pitch: 2.8
  • Total Fin Row Count: 40
  • Core Height (in): 17.24
  • Engine Oil Cooler Type: Plate Oil Cooler
  • Total Tube Count: 39
  • Outlet Diameter (in): 1.54
  • Fin Count (every 4"): 73
  • Core Length (in): 34.02
  • Bottom Header: 3.16x18.5
  • Fin Wave Height (in): 0.35
  • Flow Configuration: Crossflow
  • Engine Oil Cooler Included: Yes
  • Outlet Connection Type: Quick Connect (Spring Lock)
  • Toc Distance (in): 11.50
  • Accessories Included: 1 x TOC hose clamp(red),1 x TOC hose clamp(blue)
  • Tube Width X Height: 26x2
  • Transmission Oil Cooler Included: Yes
  • Core Material: Aluminum
  • Tube Count (every 4"): 10
  • No. Of Rows: 1
  • EOC Distance (IN): 11.50
  • Core Thickness (in): 1.02
  • Transmission Oil Cooler Type: Plate Oil Cooler
  • Top Header: 3.16x18.5

Package Details

  • Part Number: 2866
  • 04-14 CV XPRES VAN 6.0L 1R PA (w/ TOC) RAD
  • Package L x W x H: 24.41" x 6.69" x 42.52"
  • Package Weight: 18.96 lbs.

Interchanges

  • ACDelco: 21687
  • DENSO: 221-9019
  • Performance Radiator: 2993
  • CSF: 3255
  • Vista Pro: 438064
  • APDI: 8012791
  • Chevrolet: 84494240
  • GMC: 84494240
  • Visteon: 9488
  • Silla Cooling: 9520
  • Spectra Premium: CU2866
  • Partslink: GM3010502

Vehicle Fitment Table

Year Make Model Position Fitment Precision Note
2005 Chevrolet Express 2500 Base; 4.8L V8 294ci; Extended Cargo Van / Base; 4.8L V8 294ci; Standard Cargo Van / Base; 6.0L V8 5967cc 364ci; Extended Cargo Van / Base; 6.0L V8 5967cc 364ci; Standard Cargo Van / LS; 6.0L V8 5967cc 364ci; Standard Passenger Van
2005 Chevrolet Express 2500 Base; 4.8L V8 294ci; Extended Passenger Van / Base; 4.8L V8 294ci; Standard Passenger Van / Base; 6.0L V8 5967cc 364ci; Extended Passenger Van / Base; 6.0L V8 5967cc 364ci; Standard Passenger Van
2005 Chevrolet Express 2500 LS; 4.8L V8 294ci; Extended Passenger Van / LS; 4.8L V8 294ci; Standard Passenger Van / LS; 6.0L V8 5967cc 364ci; Extended Passenger Van
2006 Chevrolet Express 2500 Base; 4.8L V8 294ci; Extended Cargo Van / Base; 4.8L V8 294ci; Standard Cargo Van / Base; 6.0L V8 5967cc 364ci; Extended Cargo Van / Base; 6.0L V8 5967cc 364ci; Standard Cargo Van / LS; 6.0L V8 5967cc 364ci; Standard Passenger Van
2006 Chevrolet Express 2500 LS; 4.8L V8 294ci; Extended Passenger Van / LS; 4.8L V8 294ci; Standard Passenger Van / LS; 6.0L V8 5967cc 364ci; Extended Passenger Van
2006 Chevrolet Express 2500 LT; 4.8L V8 294ci; Extended Passenger Van / LT; 4.8L V8 294ci; Standard Passenger Van / LT; 6.0L V8 5967cc 364ci; Extended Passenger Van
2006 Chevrolet Express 2500 LT; 6.0L V8 5967cc 364ci; Standard Passenger Van
2007 Chevrolet Express 2500 Base; 4.8L V8 294ci; Extended Cargo Van / Base; 4.8L V8 294ci; Standard Cargo Van / Base; 6.0L V8 5967cc 364ci; Extended Cargo Van / Base; 6.0L V8 5967cc 364ci; Standard Cargo Van / LS; 6.0L V8 5967cc 364ci; Standard Passenger Van
2007 Chevrolet Express 2500 LT; 6.0L V8 5967cc 364ci; Standard Passenger Van
2008 Chevrolet Express 2500 Base; 4.8L V8 294ci; Extended Cargo Van / Base; 4.8L V8 294ci; Standard Cargo Van / Base; 6.0L V8 5967cc 364ci; Extended Cargo Van / Base; 6.0L V8 5967cc 364ci; Standard Cargo Van / LS; 6.0L V8 5967cc 364ci; Standard Passenger Van
2008 Chevrolet Express 2500 LT; 6.0L V8 5967cc 364ci; Standard Passenger Van
2005 Chevrolet Express 3500 Base; 4.8L V8 294ci; Cutaway Van / Base; 4.8L V8 294ci; Extended Cargo Van / Base; 4.8L V8 294ci; Standard Cargo Van / Base; 6.0L V8 5967cc 364ci; Cutaway Van / Base; 6.0L V8 5967cc 364ci; Extended Cargo Van / Base; 6.0L V8 5967cc 364ci; Standard Cargo Van / LS; 6.0L V8 5967cc 364ci; Extended Passenger Van / LS; 6.0L V8 5967cc 364ci; Standard Passenger Van
2005 Chevrolet Express 3500 Base; 4.8L V8 294ci; Extended Passenger Van / Base; 4.8L V8 294ci; Standard Passenger Van / Base; 6.0L V8 5967cc 364ci; Extended Passenger Van / Base; 6.0L V8 5967cc 364ci; Standard Passenger Van / LS; 4.8L V8 294ci; Extended Passenger Van / LS; 4.8L V8 294ci; Standard Passenger Van
2006 Chevrolet Express 3500 Base; 4.8L V8 294ci; Cutaway Van / Base; 4.8L V8 294ci; Extended Cargo Van / Base; 4.8L V8 294ci; Standard Cargo Van / Base; 6.0L V8 5967cc 364ci; Cutaway Van / Base; 6.0L V8 5967cc 364ci; Extended Cargo Van / Base; 6.0L V8 5967cc 364ci; Standard Cargo Van / LS; 6.0L V8 5967cc 364ci; Extended Passenger Van / LS; 6.0L V8 5967cc 364ci; Standard Passenger Van
2006 Chevrolet Express 3500 LT; 6.0L V8 5967cc 364ci; Extended Passenger Van / LT; 6.0L V8 5967cc 364ci; Standard Passenger Van
2007 Chevrolet Express 3500 Base; 4.8L V8 294ci; Cutaway Van / Base; 4.8L V8 294ci; Extended Cargo Van / Base; 4.8L V8 294ci; Standard Cargo Van / Base; 6.0L V8 5967cc 364ci; Cutaway Van / Base; 6.0L V8 5967cc 364ci; Extended Cargo Van / Base; 6.0L V8 5967cc 364ci; Standard Cargo Van / LS; 6.0L V8 5967cc 364ci; Extended Passenger Van / LS; 6.0L V8 5967cc 364ci; Standard Passenger Van
2007 Chevrolet Express 3500 LT; 6.0L V8 5967cc 364ci; Extended Passenger Van / LT; 6.0L V8 5967cc 364ci; Standard Passenger Van
2008 Chevrolet Express 3500 Base; 4.8L V8 294ci; Cutaway Van / Base; 4.8L V8 294ci; Extended Cargo Van / Base; 4.8L V8 294ci; Standard Cargo Van / Base; 6.0L V8 5967cc 364ci; Cutaway Van / Base; 6.0L V8 5967cc 364ci; Extended Cargo Van / Base; 6.0L V8 5967cc 364ci; Standard Cargo Van / LS; 6.0L V8 5967cc 364ci; Extended Passenger Van / LS; 6.0L V8 5967cc 364ci; Standard Passenger Van
2008 Chevrolet Express 3500 LT; 6.0L V8 5967cc 364ci; Extended Passenger Van / LT; 6.0L V8 5967cc 364ci; Standard Passenger Van
2005 GMC Savana 2500 Base; 4.8L V8 294ci; Extended Cargo Van / Base; 4.8L V8 294ci; Standard Cargo Van / Base; 6.0L V8 5967cc 364ci; Extended Cargo Van / Base; 6.0L V8 5967cc 364ci; Standard Cargo Van
2005 GMC Savana 2500 Base; 4.8L V8 294ci; Extended Passenger Van / Base; 6.0L V8 5967cc 364ci; Extended Passenger Van / SLE; 4.8L V8 294ci; Extended Passenger Van / SLE; 4.8L V8 294ci; Standard Passenger Van / SLE; 6.0L V8 5967cc 364ci; Extended Passenger Van / SLE; 6.0L V8 5967cc 364ci; Standard Passenger Van
2005 GMC Savana 2500 Base; 4.8L V8 294ci; Standard Passenger Van / Base; 6.0L V8 5967cc 364ci; Standard Passenger Van
2006 GMC Savana 2500 Base; 4.8L V8 294ci; Extended Cargo Van / Base; 4.8L V8 294ci; Standard Cargo Van / Base; 6.0L V8 5967cc 364ci; Extended Cargo Van / Base; 6.0L V8 5967cc 364ci; Standard Cargo Van
2006 GMC Savana 2500 Base; 4.8L V8 294ci; Standard Passenger Van / Base; 6.0L V8 5967cc 364ci; Standard Passenger Van
2007 GMC Savana 2500 Base; 4.8L V8 294ci; Extended Cargo Van / Base; 4.8L V8 294ci; Standard Cargo Van / Base; 6.0L V8 5967cc 364ci; Extended Cargo Van / Base; 6.0L V8 5967cc 364ci; Standard Cargo Van
2007 GMC Savana 2500 LS; 6.0L V8 5967cc 364ci; Standard Passenger Van / LT; 6.0L V8 5967cc 364ci; Standard Passenger Van
2008 GMC Savana 2500 Base; 4.8L V8 294ci; Extended Cargo Van / Base; 4.8L V8 294ci; Standard Cargo Van / Base; 6.0L V8 5967cc 364ci; Extended Cargo Van / Base; 6.0L V8 5967cc 364ci; Standard Cargo Van
2008 GMC Savana 2500 LS; 6.0L V8 5967cc 364ci; Standard Passenger Van / LT; 6.0L V8 5967cc 364ci; Standard Passenger Van
2005 GMC Savana 3500 Base; 4.8L V8 294ci; Cutaway Van / Base; 4.8L V8 294ci; Extended Cargo Van / Base; 4.8L V8 294ci; Standard Cargo Van / Base; 6.0L V8 5967cc 364ci; Cutaway Van / Base; 6.0L V8 5967cc 364ci; Extended Cargo Van / Base; 6.0L V8 5967cc 364ci; Standard Cargo Van
2005 GMC Savana 3500 Base; 4.8L V8 294ci; Extended Passenger Van / Base; 4.8L V8 294ci; Standard Passenger Van / Base; 6.0L V8 5967cc 364ci; Extended Passenger Van / Base; 6.0L V8 5967cc 364ci; Standard Passenger Van / SLE; 4.8L V8 294ci; Extended Passenger Van / SLE; 4.8L V8 294ci; Standard Passenger Van / SLE; 6.0L V8 5967cc 364ci; Extended Passenger Van / SLE; 6.0L V8 5967cc 364ci; Standard Passenger Van
2006 GMC Savana 3500 Base; 4.8L V8 294ci; Cutaway Van / Base; 4.8L V8 294ci; Extended Cargo Van / Base; 4.8L V8 294ci; Standard Cargo Van / Base; 6.0L V8 5967cc 364ci; Cutaway Van / Base; 6.0L V8 5967cc 364ci; Extended Cargo Van / Base; 6.0L V8 5967cc 364ci; Standard Cargo Van
2006 GMC Savana 3500 LS; 6.0L V8 5967cc 364ci; Extended Passenger Van / LS; 6.0L V8 5967cc 364ci; Standard Passenger Van / LT; 6.0L V8 5967cc 364ci; Extended Passenger Van / LT; 6.0L V8 5967cc 364ci; Standard Passenger Van
2007 GMC Savana 3500 Base; 4.8L V8 294ci; Cutaway Van / Base; 4.8L V8 294ci; Extended Cargo Van / Base; 4.8L V8 294ci; Standard Cargo Van / Base; 6.0L V8 5967cc 364ci; Cutaway Van / Base; 6.0L V8 5967cc 364ci; Extended Cargo Van / Base; 6.0L V8 5967cc 364ci; Standard Cargo Van
2007 GMC Savana 3500 LS; 6.0L V8 5967cc 364ci; Extended Passenger Van / LS; 6.0L V8 5967cc 364ci; Standard Passenger Van / LT; 6.0L V8 5967cc 364ci; Extended Passenger Van / LT; 6.0L V8 5967cc 364ci; Standard Passenger Van
2008 GMC Savana 3500 Base; 4.8L V8 294ci; Cutaway Van / Base; 4.8L V8 294ci; Extended Cargo Van / Base; 4.8L V8 294ci; Standard Cargo Van / Base; 6.0L V8 5967cc 364ci; Cutaway Van / Base; 6.0L V8 5967cc 364ci; Extended Cargo Van / Base; 6.0L V8 5967cc 364ci; Standard Cargo Van
2008 GMC Savana 3500 LS; 6.0L V8 5967cc 364ci; Extended Passenger Van / LS; 6.0L V8 5967cc 364ci; Standard Passenger Van / LT; 6.0L V8 5967cc 364ci; Extended Passenger Van / LT; 6.0L V8 5967cc 364ci; Standard Passenger Van

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 2866.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
