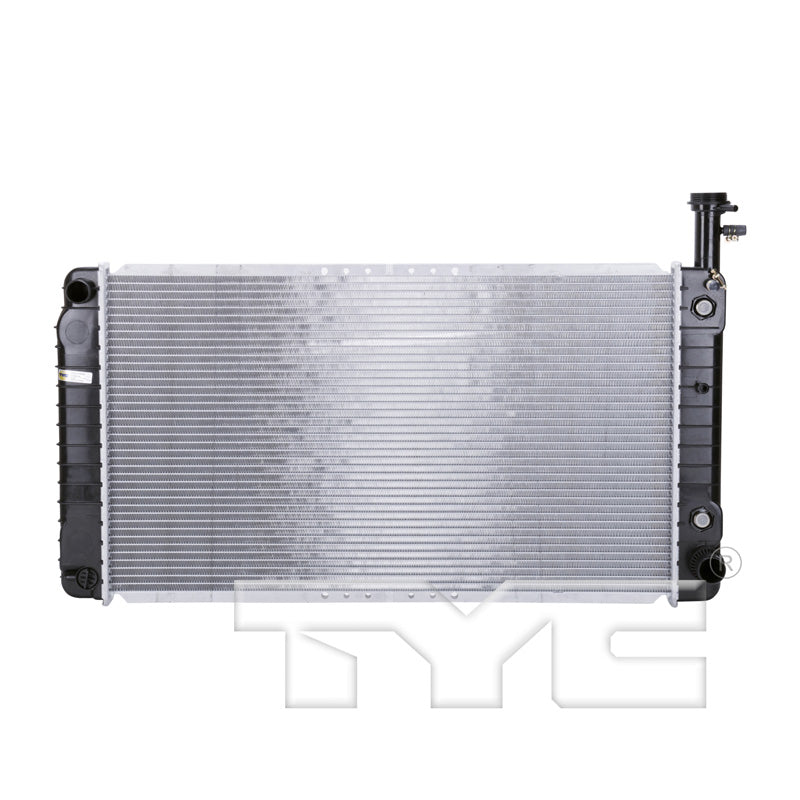

TYC 2792 Radiator Assembly for 2004-2014 Chevrolet Express 1500

TYC 2792 Radiator Assembly for 2004-2014 Chevrolet Express 1500
    TYC 2792 Radiator Assembly for 2004-2014 Chevrolet Express 1500
TYC 2792 Radiator Assembly for 2004-2014 Chevrolet Express 1500
Brand: TYC
$330.51 CAD
$330.51 CAD
Shipping calculated at checkout.

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.

2792
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Product Description

Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

  • Total Tube Count: 39
  • Outlet Connection Type: Quick Connect (Spring Lock)
  • Flow Configuration: Crossflow
  • Core Height (in): 17.24
  • Engine Oil Cooler Included: No
  • Core Material: Aluminum
  • Top Header: 2.43x18.73
  • Fin Count (every 4"): 56
  • Fin Wave Pitch: 3.6
  • No. Of Rows: 1
  • Inlet Diameter (in): 1.34
  • Toc Distance (in): 11.50
  • Outlet Diameter (in): 1.54
  • Tube Count (every 4"): 10
  • Core Length (in): 30.51
  • Inlet Connection Type: Hose Clamp
  • Transmission Oil Cooler Type: Plate Oil Cooler
  • Bottom Header: 2.43x18.73
  • Total Fin Row Count: 40
  • Core Thickness (in): 1.02
  • Accessories Included: Hose Rubber and clamp (Diam. 8.) x 1
  • Tube Width X Height: 26x2
  • Fin Wave Height (in): 0.35
  • Transmission Oil Cooler Included: Yes

Package Details

  • Part Number: 2792
  • 04-08 CV XPRES 4.3/5.3L V6/V8 AT 1R PA RAD
  • Package L x W x H: 24.21" x 6.10" x 39.17"
  • Package Weight: 13.40 lbs.

Interchanges

  • CSF: 2147
  • DENSO: 221-9401
  • GMC: 22795303
  • Chevrolet: 22795303
  • Performance Radiator: 2797
  • Performance Radiator: 2992
  • Vista Pro: 431430
  • Vista Pro: 434029
  • APDI: 8012793
  • Visteon: 9488
  • Visteon: 9491
  • Spectra Premium: CU2792
  • Partslink: GM3010482
  • Delphi: RA10026
  • Delphi: RA10033

Vehicle Fitment Table

Year Make Model Position Fitment Precision Note
2004 Chevrolet Express 1500 Base; 5.3L V8 5328cc 325ci; Standard Cargo Van; 5.3L V8 5328cc 325ci, Primary / Base; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary / LS; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary w/ Quick Disconnect
2005 Chevrolet Express 1500 Base; 5.3L V8 5328cc 325ci; Standard Cargo Van; 5.3L V8 5328cc 325ci, Primary / LS; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary
2005 Chevrolet Express 1500 Base; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary
2006 Chevrolet Express 1500 Base; 5.3L V8 5328cc 325ci; Standard Cargo Van; 5.3L V8 5328cc 325ci, Primary / LS; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary
2006 Chevrolet Express 1500 LT; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary
2007 Chevrolet Express 1500 Base; 5.3L V8 5328cc 325ci; Standard Cargo Van; 5.3L V8 5328cc 325ci, Primary / LS; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary
2007 Chevrolet Express 1500 LT; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary
2008 Chevrolet Express 1500 Base; 5.3L V8 5328cc 325ci; Standard Cargo Van; 5.3L V8 5328cc 325ci, Primary / LS; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary
2008 Chevrolet Express 1500 LT; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary
2009 Chevrolet Express 1500 Base; 5.3L V8 5328cc 325ci; Standard Cargo Van; 5.3L V8 5328cc 325ci, Primary / LS; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary
2009 Chevrolet Express 1500 LT; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary
2010 Chevrolet Express 1500 Base; 5.3L V8 5328cc 325ci; Standard Cargo Van; 5.3L V8 5328cc 325ci, Primary / LS; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary
2010 Chevrolet Express 1500 LT; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary
2011 Chevrolet Express 1500 Base; 5.3L V8 5328cc 325ci; Standard Cargo Van; 5.3L V8 5328cc 325ci, Primary / LS; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary
2011 Chevrolet Express 1500 LT; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary
2012 Chevrolet Express 1500 Base; 5.3L V8 5328cc 325ci; Standard Cargo Van; 5.3L V8 5328cc 325ci, Primary / LS; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary
2012 Chevrolet Express 1500 LT; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary
2013 Chevrolet Express 1500 Base; 5.3L V8 5328cc 325ci; Standard Cargo Van; 5.3L V8 5328cc 325ci, Primary / LS; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary
2013 Chevrolet Express 1500 LT; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary
2014 Chevrolet Express 1500 Base; 5.3L V8 5328cc 325ci; Standard Cargo Van; 5.3L V8 5328cc 325ci, Primary / LS; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary
2014 Chevrolet Express 1500 LT; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary
2004 Chevrolet Express 2500 Base; 5.3L V8 5328cc 325ci; Extended Cargo Van; 5.3L V8 5328cc 325ci, Primary / Base; 5.3L V8 5328cc 325ci; Extended Passenger Van; 5.3L V8 5328cc 325ci, Primary / Base; 5.3L V8 5328cc 325ci; Standard Cargo Van; 5.3L V8 5328cc 325ci, Primary / Base; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary / LS; 5.3L V8 5328cc 325ci; Extended Passenger Van; 5.3L V8 5328cc 325ci, Primary / LS; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary w/ Quick Disconnect
2005 Chevrolet Express 2500 Base; 5.3L V8 5328cc 325ci; Extended Cargo Van; 5.3L V8 5328cc 325ci, Primary / Base; 5.3L V8 5328cc 325ci; Extended Passenger Van; 5.3L V8 5328cc 325ci, Primary / Base; 5.3L V8 5328cc 325ci; Standard Cargo Van; 5.3L V8 5328cc 325ci, Primary / Base; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary / LS; 5.3L V8 5328cc 325ci; Extended Passenger Van; 5.3L V8 5328cc 325ci, Primary / LS; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary
2005 GMC Savana 1500 Base; 5.3L V8 5328cc 325ci; Standard Cargo Van; 5.3L V8 5328cc 325ci, Primary
2005 GMC Savana 1500 Base; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary
2005 GMC Savana 1500 SLE; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary
2006 GMC Savana 1500 Base; 5.3L V8 5328cc 325ci; Standard Cargo Van; 5.3L V8 5328cc 325ci, Primary
2006 GMC Savana 1500 LS; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary / LT; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary
2006 GMC Savana 1500 SLE; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary
2007 GMC Savana 1500 Base; 5.3L V8 5328cc 325ci; Standard Cargo Van; 5.3L V8 5328cc 325ci, Primary
2007 GMC Savana 1500 LS; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary / LT; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary
2007 GMC Savana 1500 SLE; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary
2008 GMC Savana 1500 Base; 5.3L V8 5328cc 325ci; Standard Cargo Van; 5.3L V8 5328cc 325ci, Primary
2008 GMC Savana 1500 LS; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary / LT; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary
2008 GMC Savana 1500 SLE; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary
2009 GMC Savana 1500 Base; 5.3L V8 5328cc 325ci; Standard Cargo Van; 5.3L V8 5328cc 325ci, Primary
2009 GMC Savana 1500 LS; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary / LT; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary
2009 GMC Savana 1500 SLE; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary
2010 GMC Savana 1500 Base; 5.3L V8 5328cc 325ci; Standard Cargo Van; 5.3L V8 5328cc 325ci, Primary
2010 GMC Savana 1500 LS; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary / LT; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary
2010 GMC Savana 1500 SLE; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary
2011 GMC Savana 1500 Base; 5.3L V8 5328cc 325ci; Standard Cargo Van; 5.3L V8 5328cc 325ci, Primary
2011 GMC Savana 1500 LS; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary / LT; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary
2011 GMC Savana 1500 SLE; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary
2012 GMC Savana 1500 Base; 5.3L V8 5328cc 325ci; Standard Cargo Van; 5.3L V8 5328cc 325ci, Primary
2012 GMC Savana 1500 LS; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary / LT; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary
2012 GMC Savana 1500 SLE; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary
2013 GMC Savana 1500 Base; 5.3L V8 5328cc 325ci; Standard Cargo Van; 5.3L V8 5328cc 325ci, Primary
2013 GMC Savana 1500 LS; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary / LT; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary
2013 GMC Savana 1500 SLE; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary
2014 GMC Savana 1500 Base; 5.3L V8 5328cc 325ci; Standard Cargo Van; 5.3L V8 5328cc 325ci, Primary
2014 GMC Savana 1500 LS; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary / LT; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary
2004 GMC Savana 2500 Base; 5.3L V8 5328cc 325ci; Extended Cargo Van; 5.3L V8 5328cc 325ci, Primary / Base; 5.3L V8 5328cc 325ci; Extended Passenger Van; 5.3L V8 5328cc 325ci, Primary / Base; 5.3L V8 5328cc 325ci; Standard Cargo Van; 5.3L V8 5328cc 325ci, Primary / Base; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary / SLE; 5.3L V8 5328cc 325ci; Extended Passenger Van; 5.3L V8 5328cc 325ci, Primary / SLE; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary w/ Quick Disconnect
2005 GMC Savana 2500 Base; 5.3L V8 5328cc 325ci; Extended Cargo Van; 5.3L V8 5328cc 325ci, Primary / Base; 5.3L V8 5328cc 325ci; Extended Passenger Van; 5.3L V8 5328cc 325ci, Primary / Base; 5.3L V8 5328cc 325ci; Standard Cargo Van; 5.3L V8 5328cc 325ci, Primary / Base; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary / SLE; 5.3L V8 5328cc 325ci; Extended Passenger Van; 5.3L V8 5328cc 325ci, Primary / SLE; 5.3L V8 5328cc 325ci; Standard Passenger Van; 5.3L V8 5328cc 325ci, Primary

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 2792.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
