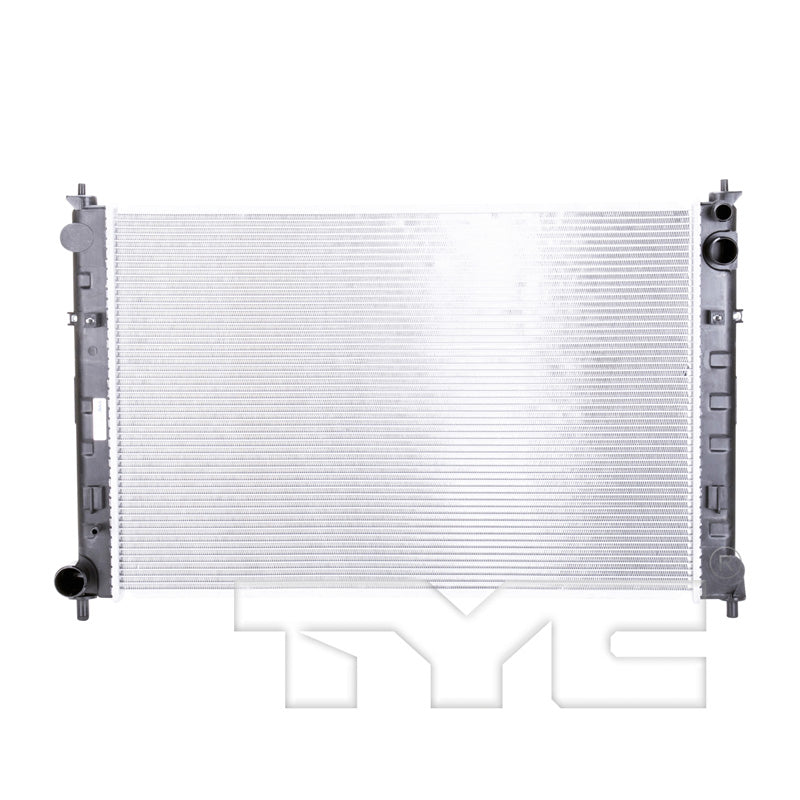

TYC 2768 Radiator Assembly for 2002-2005 Mazda MPV

TYC 2768 Radiator Assembly for 2002-2005 Mazda MPV
    TYC 2768 Radiator Assembly for 2002-2005 Mazda MPV
TYC 2768 Radiator Assembly for 2002-2005 Mazda MPV
Brand: TYC
$294.18 CAD
$294.18 CAD
Shipping calculated at checkout.

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.

2768
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Product Description

Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

  • Core Thickness (in): 1.02
  • Total Fin Row Count: 55
  • Outlet Diameter (in): 1.26
  • Inlet Diameter (in): 1.54
  • Fin Wave Height (in): 0.25
  • Fin Wave Pitch: 2.6
  • Core Height (in): 17.89
  • Engine Oil Cooler Included: No
  • Top Header: 1.99x19.16
  • Tube Width X Height: 26x2
  • Toc Distance (in): 11.81
  • Outlet Connection Type: Hose Clamp
  • Fin Count (every 4"): 78
  • Total Tube Count: 54
  • Bottom Header: 1.99x19.16
  • Flow Configuration: Crossflow
  • Core Length (in): 27.17
  • Transmission Oil Cooler Type: Concentric Oil Cooler
  • Inlet Connection Type: Hose Clamp
  • Tube Count (every 4"): 12
  • No. Of Rows: 1
  • Transmission Oil Cooler Included: Yes
  • Core Material: Aluminum

Package Details

  • Part Number: 2768
  • 02-05 MZ M.P.V 3.0L V6 AT 1R PA (w/o TOW) RAD
  • Package L x W x H: 22.24" x 5.71" x 34.45"
  • Package Weight: 13.09 lbs.

Interchanges

  • DENSO: 221-4501
  • CSF: 3302
  • Vista Pro: 432637
  • Vista Pro: 438209
  • APDI: 8012768
  • Visteon: 9991
  • Mazda: AJ51-15-200B
  • Spectra Premium: CU2768
  • Partslink: MA3010197

Vehicle Fitment Table

Year Make Model Position Fitment Precision Note
2002 Mazda MPV ES; 3.0L V6 2968cc 181ci; Standard Passenger Van; 3.0L V6 2968cc 181ci, Primary / LX; 3.0L V6 2968cc 181ci; Standard Passenger Van; 3.0L V6 2968cc 181ci, Primary w/o Towing Pkg
2003 Mazda MPV ES; 3.0L V6 2968cc 181ci; Standard Passenger Van; 3.0L V6 2968cc 181ci, Primary / LX; 3.0L V6 2968cc 181ci; Standard Passenger Van; 3.0L V6 2968cc 181ci, Primary w/o Towing Pkg
2004 Mazda MPV ES; 3.0L V6 2968cc 181ci; Mini Passenger Van; 3.0L V6 2968cc 181ci, Primary / LX; 3.0L V6 2968cc 181ci; Mini Passenger Van; 3.0L V6 2968cc 181ci, Primary w/o Towing Pkg
2005 Mazda MPV ES; 3.0L V6 2968cc 181ci; Mini Passenger Van; 3.0L V6 2968cc 181ci, Primary / LX; 3.0L V6 2968cc 181ci; Mini Passenger Van; 3.0L V6 2968cc 181ci, Primary w/o Towing Pkg

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 2768.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
