Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

• Core Thickness (in): 1.02
• Toc Distance (in): 17.38
• Outlet Connection Type: Hose Clamp
• Flow Configuration: Downflow
• TOC Inlet Diameter (IN): 0.31
• Outlet Diameter (in): 1.38
• Inlet Diameter (in): 1.38
• Top Header: 1.99x28.78
• Fin Wave Height (in): 0.31
• Tube Width X Height: 26x2
• No. Of Rows: 1
• Inlet Connection Type: Hose Clamp
• TOC Outlet Diameter (IN): 0.31
• Total Tube Count: 71
• Transmission Oil Cooler Included: Yes
• Core Length (in): 15.75
• Total Fin Row Count: 72
• Fin Wave Pitch: 3
• Core Material: Aluminum
• Toc Outlet Type: Tube fitting
• Toc Inlet Type: Tube fitting
• Bottom Header: 1.99x28.78
• Engine Oil Cooler Included: No
• Transmission Oil Cooler Type: Concentric Oil Cooler
• Tube Count (every 4"): 10
• Core Height (in): 28.27
• Fin Count (every 4"): 68

Package Details

• Part Number: 2759

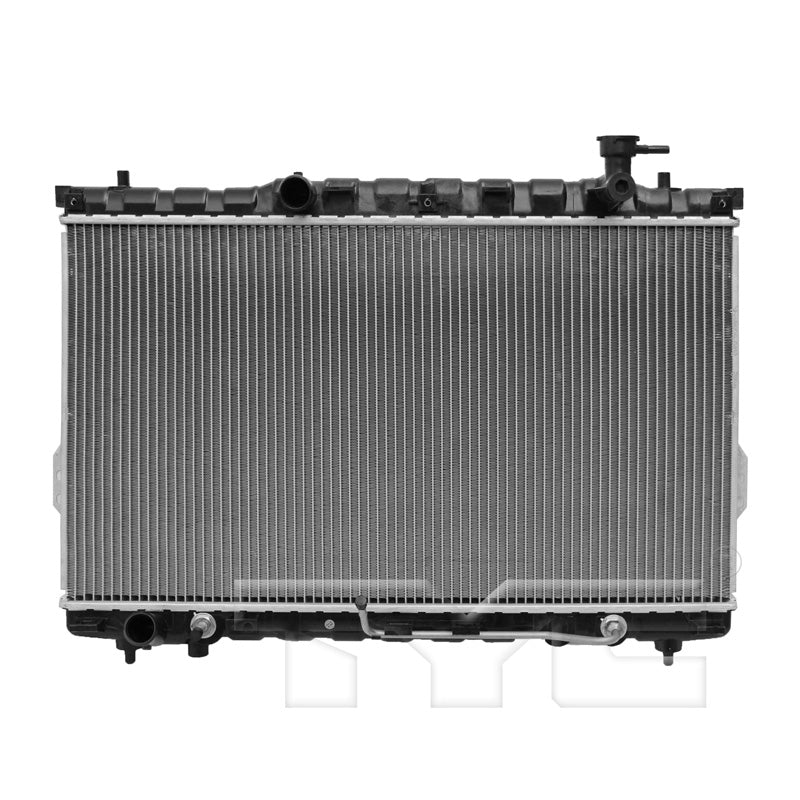

• 03-06 HY SNTA FE 3.5L V6 1R PA RAD
• Package L x W x H: 23.82" x 6.69" x 31.69"
• Package Weight: 13.05 lbs.

Interchanges

• Hyundai: 25310-26300
• DPI (DataPoint Inc): 2759
• OSC: 2759
• APDI: 8012759
• Spectra Premium: CU2759
• Partslink: HY3010148

Vehicle Fitment Table

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 2759.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
