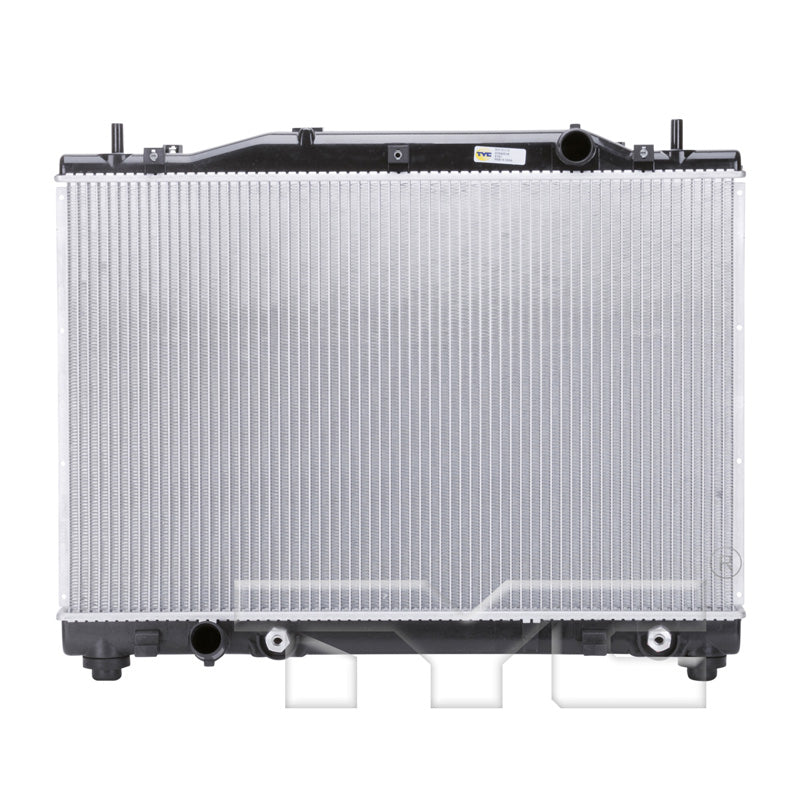

TYC 2731 Radiator Assembly for 2004-2007 Cadillac CTS

TYC 2731 Radiator Assembly for 2004-2007 Cadillac CTS
    TYC 2731 Radiator Assembly for 2004-2007 Cadillac CTS
TYC 2731 Radiator Assembly for 2004-2007 Cadillac CTS
Brand: TYC
$329.25 CAD
$329.25 CAD
Shipping calculated at checkout.

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.

2731
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Product Description

Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

  • Transmission Oil Cooler Type: Plate Oil Cooler
  • Inlet Diameter (in): 1.36
  • Tube Count (every 4"): 10
  • Fin Wave Pitch: 3.2
  • Toc Inlet Type: Quick Connect
  • Core Length (in): 16.73
  • Fin Count (every 4"): 64
  • Outlet Diameter (in): 1.36
  • Total Fin Row Count: 66
  • Bottom Header: 2.28x26.87
  • Inlet Connection Type: Hose Clamp
  • Core Material: Aluminum
  • Core Height (in): 25.91
  • Core Thickness (in): 1.02
  • Toc Outlet Type: Quick Connect
  • Fin Wave Height (in): 0.31
  • Top Header: 2.01x26.87
  • Flow Configuration: Downflow
  • Tube Width X Height: 26x2
  • Toc Distance (in): 14.76
  • No. Of Rows: 1
  • Outlet Connection Type: Hose Clamp
  • TOC Inlet Diameter (IN): 0.37
  • Transmission Oil Cooler Included: Yes
  • Total Tube Count: 65
  • TOC Outlet Diameter (IN): 0.37
  • Engine Oil Cooler Included: No

Package Details

  • Part Number: 2731
  • 04-07 CD C.T.S 2.8/3.6L V6 A/MT 1R PA(w/TOC)RAD
  • Package L x W x H: 23.23" x 5.71" x 28.15"
  • Package Weight: 11.66 lbs.

Interchanges

  • Cadillac: 19258627
  • ACDelco: 21494
  • DENSO: 221-9394
  • CSF: 3467
  • Vista Pro: 434014
  • APDI: 8012731
  • Visteon: 9485
  • Silla Cooling: 9628
  • Spectra Premium: CU2731
  • Partslink: GM3010453

Vehicle Fitment Table

Year Make Model Position Fitment Precision Note
2004 Cadillac CTS Base; 3.6L V6 3564cc 217ci; Sedan; 3.6L V6 3564cc 217ci, Primary
2005 Cadillac CTS Base; 2.8L V6 2792cc 170ci; Sedan; 2.8L V6 2792cc 170ci, Primary
2005 Cadillac CTS Base; 3.6L V6 3564cc 217ci; Sedan; 3.6L V6 3564cc 217ci, Primary
2006 Cadillac CTS Base; 2.8L V6 2792cc 170ci; Sedan; 2.8L V6 2792cc 170ci, Primary
2006 Cadillac CTS Base; 3.6L V6 3564cc 217ci; Sedan; 3.6L V6 3564cc 217ci, Primary
2007 Cadillac CTS Base; 2.8L V6 2792cc 170ci; Sedan; 2.8L V6 2792cc 170ci, Primary
2007 Cadillac CTS Base; 3.6L V6 3564cc 217ci; Sedan; 3.6L V6 3564cc 217ci, Primary

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 2731.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
