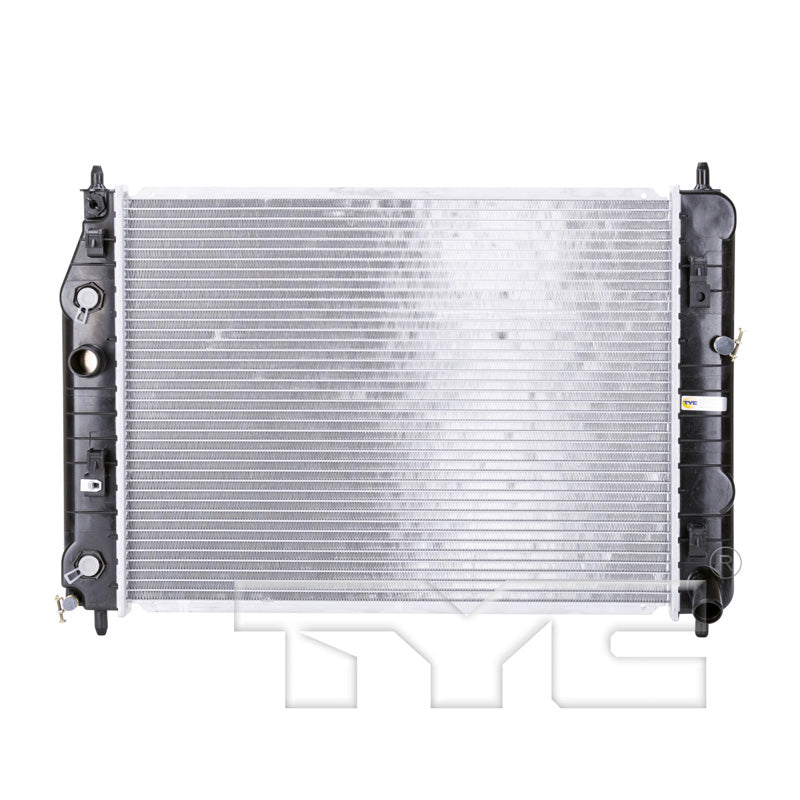

TYC 2715 Radiator Assembly for 2004-2009 Cadillac XLR

TYC 2715 Radiator Assembly for 2004-2009 Cadillac XLR
    TYC 2715 Radiator Assembly for 2004-2009 Cadillac XLR
TYC 2715 Radiator Assembly for 2004-2009 Cadillac XLR
Brand: TYC
$322.74 CAD
$322.74 CAD
Shipping calculated at checkout.

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.

2715
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Product Description

Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

  • Bottom Header: 2.43x18.73
  • Engine Oil Cooler Included: No
  • Tube Width X Height: 26x2
  • Outlet Diameter (in): 1.3
  • Fin Wave Height (in): 0.35
  • Total Fin Row Count: 40
  • Top Header: 2.43x18.73
  • Fin Wave Pitch: 3
  • Core Length (in): 23.43
  • Transmission Oil Cooler Type: Plate Oil Cooler
  • Total Tube Count: 39
  • Core Material: Aluminum
  • Outlet Connection Type: Hose Clamp
  • Core Thickness (in): 1.02
  • Transmission Oil Cooler Included: Yes
  • Flow Configuration: Crossflow
  • Tube Count (every 4"): 10
  • Inlet Connection Type: Hose Clamp
  • No. Of Rows: 1
  • Toc Distance (in): 11.50
  • Inlet Diameter (in): 1.3
  • Core Height (in): 17.24
  • Fin Count (every 4"): 68

Package Details

  • Part Number: 2715
  • 04-08 CD X.L.R V8 AT 1R PA RAD
  • Package L x W x H: 21.85" x 6.50" x 30.51"
  • Package Weight: 11.59 lbs.

Interchanges

  • Cadillac: 10346017
  • ACDelco: 21633
  • DENSO: 221-9393
  • Vista Pro: 438215
  • APDI: 8012715
  • Silla Cooling: 9548
  • Spectra Premium: CU2715
  • Partslink: GM3010506
  • Delphi: RA20116

Vehicle Fitment Table

Year Make Model Position Fitment Precision Note
2004 Cadillac XLR Base; 4.6L V8 281ci; Convertible; 4.6L V8 281ci, Primary
2005 Cadillac XLR Base; 4.6L V8 281ci; Convertible; 4.6L V8 281ci, Primary
2006 Cadillac XLR Base; 4.6L V8 281ci; Convertible; 4.6L V8 281ci, Primary
2006 Cadillac XLR V; 4.4L V8 4371cc 267ci; Convertible; 4.4L V8 4371cc 267ci, Primary
2007 Cadillac XLR Base; 4.6L V8 281ci; Convertible; 4.6L V8 281ci, Primary
2007 Cadillac XLR V; 4.4L V8 4371cc 267ci; Convertible; 4.4L V8 4371cc 267ci, Primary
2008 Cadillac XLR Base; 4.6L V8 281ci; Convertible; 4.6L V8 281ci, Primary
2008 Cadillac XLR Platinum; 4.6L V8 281ci; Convertible; 4.6L V8 281ci, Primary
2008 Cadillac XLR V; 4.4L V8 4371cc 267ci; Convertible; 4.4L V8 4371cc 267ci, Primary
2009 Cadillac XLR Platinum; 4.6L V8 281ci; Convertible; 4.6L V8 281ci, Primary
2009 Cadillac XLR V; 4.4L V8 4371cc 267ci; Convertible; 4.4L V8 4371cc 267ci, Primary

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 2715.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
