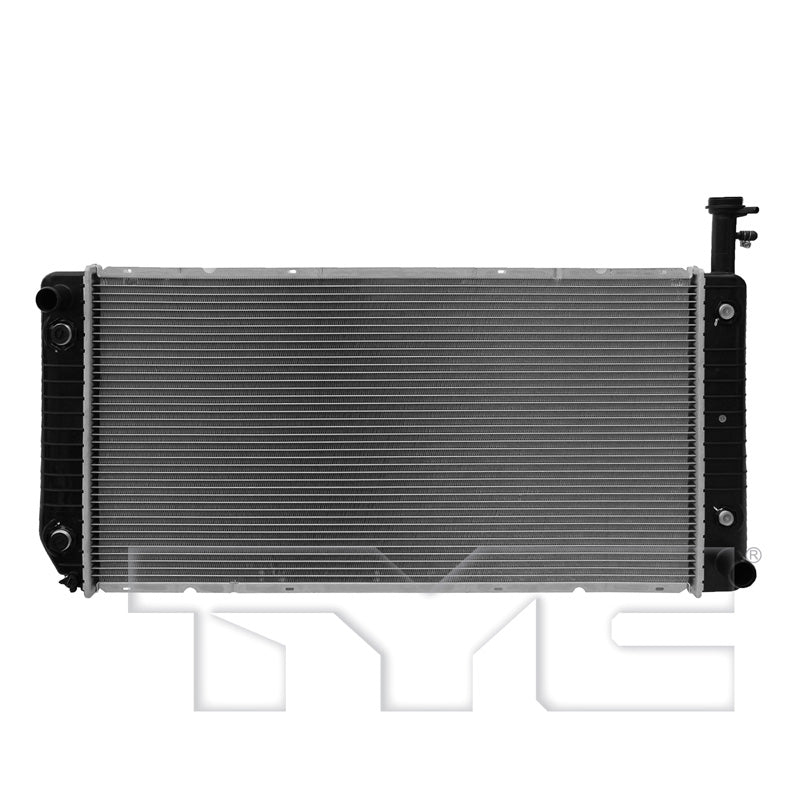

TYC 2713 Radiator Assembly for 2003-2004 Chevrolet Express 2500

TYC 2713 Radiator Assembly for 2003-2004 Chevrolet Express 2500
    TYC 2713 Radiator Assembly for 2003-2004 Chevrolet Express 2500
TYC 2713 Radiator Assembly for 2003-2004 Chevrolet Express 2500
Brand: TYC
$468.81 CAD
$468.81 CAD
Shipping calculated at checkout.

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.

2713
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Product Description

Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

  • Core Height (in): 17.13
  • TOC Outlet Diameter (IN): 0.37
  • EOC Inlet Diameter (mm): 9.5
  • Total Tube Count: 45
  • Fin Wave Height (in): 0.3
  • Total Fin Row Count: 46
  • Flow Configuration: Crossflow
  • EOC Outlet Diameter (IN): 0.37
  • TOC Inlet Diameter (IN): 0.37
  • EOC Distance (IN): 11.50
  • No. Of Rows: 1
  • Engine Oil Cooler Type: Plate Oil Cooler
  • Top Header: 3.16x18.5
  • Outlet Connection Type: Hose Clamp
  • Tube Count (every 4"): 11
  • Transmission Oil Cooler Type: Plate Oil Cooler
  • Transmission Oil Cooler Included: Yes
  • Inlet Connection Type: Hose Clamp
  • Toc Outlet Type: Quick Connect
  • Core Length (in): 34.02
  • Outlet Diameter (in): 1.54
  • EOC Outlet Type: Quick Connect
  • Core Material: Aluminum
  • EOC Inlet Diameter (IN): 0.37
  • Engine Oil Cooler Included: Yes
  • Inlet Diameter (in): 1.3
  • EOC Inlet Type: Quick Connect
  • Toc Inlet Type: Quick Connect
  • Core Thickness (in): 1.02
  • Fin Wave Pitch: 2.8
  • Bottom Header: 3.16x18.5
  • Toc Distance (in): 11.50
  • Tube Width X Height: 26x2
  • Fin Count (every 4"): 73

Package Details

  • Part Number: 2713
  • 03-04 CV XPRES/GC SVANA 4.8/6.0L V8 AT 1R PA RAD
  • Package L x W x H: 24.41" x 6.69" x 42.52"
  • Package Weight: 19.22 lbs.

Interchanges

  • ACDelco: 21487
  • DENSO: 221-9124
  • CSF: 2320
  • Performance Radiator: 2857
  • Vista Pro: 433831
  • APDI: 8012713
  • GMC: 89019165
  • Chevrolet: 89019165
  • Visteon: 9487
  • Silla Cooling: 9514
  • Spectra Premium: CU2713
  • Partslink: GM3010480
  • Delphi: RA10040
  • Reach Cooling: REA41-2713A

Vehicle Fitment Table

Year Make Model Position Fitment Precision Note
2003 Chevrolet Express 2500 Base; 4.8L V8 294ci; Extended Cargo Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Extended Passenger Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Standard Cargo Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Standard Passenger Van; 4.8L V8 294ci, Primary / Base; 6.0L V8 5967cc 364ci; Extended Cargo Van; 6.0L V8 5967cc 364ci, Primary / Base; 6.0L V8 5967cc 364ci; Extended Passenger Van; 6.0L V8 5967cc 364ci, Primary / Base; 6.0L V8 5967cc 364ci; Standard Cargo Van; 6.0L V8 5967cc 364ci, Primary / Base; 6.0L V8 5967cc 364ci; Standard Passenger Van; 6.0L V8 5967cc 364ci, Primary / LS; 4.8L V8 294ci; Extended Passenger Van; 4.8L V8 294ci, Primary / LS; 4.8L V8 294ci; Standard Passenger Van; 4.8L V8 294ci, Primary / LS; 6.0L V8 5967cc 364ci; Extended Passenger Van; 6.0L V8 5967cc 364ci, Primary / LS; 6.0L V8 5967cc 364ci; Standard Passenger Van; 6.0L V8 5967cc 364ci, Primary
2004 Chevrolet Express 2500 Base; 4.8L V8 294ci; Extended Cargo Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Extended Passenger Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Standard Cargo Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Standard Passenger Van; 4.8L V8 294ci, Primary / Base; 6.0L V8 5967cc 364ci; Extended Cargo Van; 6.0L V8 5967cc 364ci, Primary / Base; 6.0L V8 5967cc 364ci; Extended Passenger Van; 6.0L V8 5967cc 364ci, Primary / Base; 6.0L V8 5967cc 364ci; Standard Cargo Van; 6.0L V8 5967cc 364ci, Primary / Base; 6.0L V8 5967cc 364ci; Standard Passenger Van; 6.0L V8 5967cc 364ci, Primary / LS; 4.8L V8 294ci; Extended Passenger Van; 4.8L V8 294ci, Primary / LS; 4.8L V8 294ci; Standard Passenger Van; 4.8L V8 294ci, Primary / LS; 6.0L V8 5967cc 364ci; Extended Passenger Van; 6.0L V8 5967cc 364ci, Primary / LS; 6.0L V8 5967cc 364ci; Standard Passenger Van; 6.0L V8 5967cc 364ci, Primary w/o Quick Disconnect
2003 Chevrolet Express 3500 Base; 4.8L V8 294ci; Cutaway Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Extended Cargo Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Extended Passenger Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Standard Cargo Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Standard Passenger Van; 4.8L V8 294ci, Primary / Base; 6.0L V8 5967cc 364ci; Cutaway Van; 6.0L V8 5967cc 364ci, Primary / Base; 6.0L V8 5967cc 364ci; Extended Cargo Van; 6.0L V8 5967cc 364ci, Primary / Base; 6.0L V8 5967cc 364ci; Extended Passenger Van; 6.0L V8 5967cc 364ci, Primary / Base; 6.0L V8 5967cc 364ci; Standard Cargo Van; 6.0L V8 5967cc 364ci, Primary / Base; 6.0L V8 5967cc 364ci; Standard Passenger Van; 6.0L V8 5967cc 364ci, Primary / LS; 4.8L V8 294ci; Extended Passenger Van; 4.8L V8 294ci, Primary / LS; 4.8L V8 294ci; Standard Passenger Van; 4.8L V8 294ci, Primary / LS; 6.0L V8 5967cc 364ci; Extended Passenger Van; 6.0L V8 5967cc 364ci, Primary / LS; 6.0L V8 5967cc 364ci; Standard Passenger Van; 6.0L V8 5967cc 364ci, Primary
2004 Chevrolet Express 3500 Base; 4.8L V8 294ci; Cutaway Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Extended Cargo Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Extended Passenger Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Standard Cargo Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Standard Passenger Van; 4.8L V8 294ci, Primary / Base; 6.0L V8 5967cc 364ci; Cutaway Van; 6.0L V8 5967cc 364ci, Primary / Base; 6.0L V8 5967cc 364ci; Extended Cargo Van; 6.0L V8 5967cc 364ci, Primary / Base; 6.0L V8 5967cc 364ci; Extended Passenger Van; 6.0L V8 5967cc 364ci, Primary / Base; 6.0L V8 5967cc 364ci; Standard Cargo Van; 6.0L V8 5967cc 364ci, Primary / Base; 6.0L V8 5967cc 364ci; Standard Passenger Van; 6.0L V8 5967cc 364ci, Primary / LS; 4.8L V8 294ci; Extended Passenger Van; 4.8L V8 294ci, Primary / LS; 4.8L V8 294ci; Standard Passenger Van; 4.8L V8 294ci, Primary / LS; 6.0L V8 5967cc 364ci; Extended Passenger Van; 6.0L V8 5967cc 364ci, Primary / LS; 6.0L V8 5967cc 364ci; Standard Passenger Van; 6.0L V8 5967cc 364ci, Primary w/o Quick Disconnect
2003 GMC Savana 2500 Base; 4.8L V8 294ci; Extended Cargo Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Extended Passenger Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Standard Cargo Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Standard Passenger Van; 4.8L V8 294ci, Primary / Base; 6.0L V8 5967cc 364ci; Extended Cargo Van; 6.0L V8 5967cc 364ci, Primary / Base; 6.0L V8 5967cc 364ci; Extended Passenger Van; 6.0L V8 5967cc 364ci, Primary / Base; 6.0L V8 5967cc 364ci; Standard Cargo Van; 6.0L V8 5967cc 364ci, Primary / Base; 6.0L V8 5967cc 364ci; Standard Passenger Van; 6.0L V8 5967cc 364ci, Primary / SLE; 4.8L V8 294ci; Extended Passenger Van; 4.8L V8 294ci, Primary / SLE; 4.8L V8 294ci; Standard Passenger Van; 4.8L V8 294ci, Primary / SLE; 6.0L V8 5967cc 364ci; Extended Passenger Van; 6.0L V8 5967cc 364ci, Primary / SLE; 6.0L V8 5967cc 364ci; Standard Passenger Van; 6.0L V8 5967cc 364ci, Primary
2004 GMC Savana 2500 Base; 4.8L V8 294ci; Extended Cargo Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Extended Passenger Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Standard Cargo Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Standard Passenger Van; 4.8L V8 294ci, Primary / Base; 6.0L V8 5967cc 364ci; Extended Cargo Van; 6.0L V8 5967cc 364ci, Primary / Base; 6.0L V8 5967cc 364ci; Extended Passenger Van; 6.0L V8 5967cc 364ci, Primary / Base; 6.0L V8 5967cc 364ci; Standard Cargo Van; 6.0L V8 5967cc 364ci, Primary / Base; 6.0L V8 5967cc 364ci; Standard Passenger Van; 6.0L V8 5967cc 364ci, Primary / SLE; 4.8L V8 294ci; Extended Passenger Van; 4.8L V8 294ci, Primary / SLE; 4.8L V8 294ci; Standard Passenger Van; 4.8L V8 294ci, Primary / SLE; 6.0L V8 5967cc 364ci; Extended Passenger Van; 6.0L V8 5967cc 364ci, Primary / SLE; 6.0L V8 5967cc 364ci; Standard Passenger Van; 6.0L V8 5967cc 364ci, Primary w/o Quick Disconnect
2003 GMC Savana 3500 Base; 4.8L V8 294ci; Cutaway Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Extended Cargo Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Extended Passenger Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Standard Cargo Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Standard Passenger Van; 4.8L V8 294ci, Primary / Base; 6.0L V8 5967cc 364ci; Cutaway Van; 6.0L V8 5967cc 364ci, Primary / Base; 6.0L V8 5967cc 364ci; Extended Cargo Van; 6.0L V8 5967cc 364ci, Primary / Base; 6.0L V8 5967cc 364ci; Extended Passenger Van; 6.0L V8 5967cc 364ci, Primary / Base; 6.0L V8 5967cc 364ci; Standard Cargo Van; 6.0L V8 5967cc 364ci, Primary / Base; 6.0L V8 5967cc 364ci; Standard Passenger Van; 6.0L V8 5967cc 364ci, Primary / SLE; 4.8L V8 294ci; Extended Passenger Van; 4.8L V8 294ci, Primary / SLE; 4.8L V8 294ci; Standard Passenger Van; 4.8L V8 294ci, Primary / SLE; 6.0L V8 5967cc 364ci; Extended Passenger Van; 6.0L V8 5967cc 364ci, Primary / SLE; 6.0L V8 5967cc 364ci; Standard Passenger Van; 6.0L V8 5967cc 364ci, Primary
2004 GMC Savana 3500 Base; 4.8L V8 294ci; Cutaway Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Extended Cargo Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Extended Passenger Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Standard Cargo Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Standard Passenger Van; 4.8L V8 294ci, Primary / Base; 6.0L V8 5967cc 364ci; Cutaway Van; 6.0L V8 5967cc 364ci, Primary / Base; 6.0L V8 5967cc 364ci; Extended Cargo Van; 6.0L V8 5967cc 364ci, Primary / Base; 6.0L V8 5967cc 364ci; Extended Passenger Van; 6.0L V8 5967cc 364ci, Primary / Base; 6.0L V8 5967cc 364ci; Standard Cargo Van; 6.0L V8 5967cc 364ci, Primary / Base; 6.0L V8 5967cc 364ci; Standard Passenger Van; 6.0L V8 5967cc 364ci, Primary / SLE; 4.8L V8 294ci; Extended Passenger Van; 4.8L V8 294ci, Primary / SLE; 4.8L V8 294ci; Standard Passenger Van; 4.8L V8 294ci, Primary / SLE; 6.0L V8 5967cc 364ci; Extended Passenger Van; 6.0L V8 5967cc 364ci, Primary / SLE; 6.0L V8 5967cc 364ci; Standard Passenger Van; 6.0L V8 5967cc 364ci, Primary w/o Quick Disconnect

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 2713.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
