Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

• Engine Oil Cooler Included: No
• Fin Wave Pitch: 2.6
• Fin Wave Height (in): 0.25
• Outlet Connection Type: Hose Clamp
• Inlet Diameter (in): 1.38
• Flow Configuration: Downflow
• Transmission Oil Cooler Type: Concentric Oil Cooler
• Transmission Oil Cooler Included: Yes
• Tube Width X Height: 16x2
• Total Tube Count: 87
• Core Material: Aluminum
• Total Fin Row Count: 88
• Top Header: 1.99x29.94
• No. Of Rows: 1
• Fin Count (every 4"): 78
• Toc Distance (in): 13.78
• Core Thickness (in): 0.63
• Inlet Connection Type: Hose Clamp
• Bottom Header: 1.99x29.94
• Core Height (in): 28.68
• Outlet Diameter (in): 1.38
• Core Length (in): 15.75
• Tube Count (every 4"): 12

Package Details

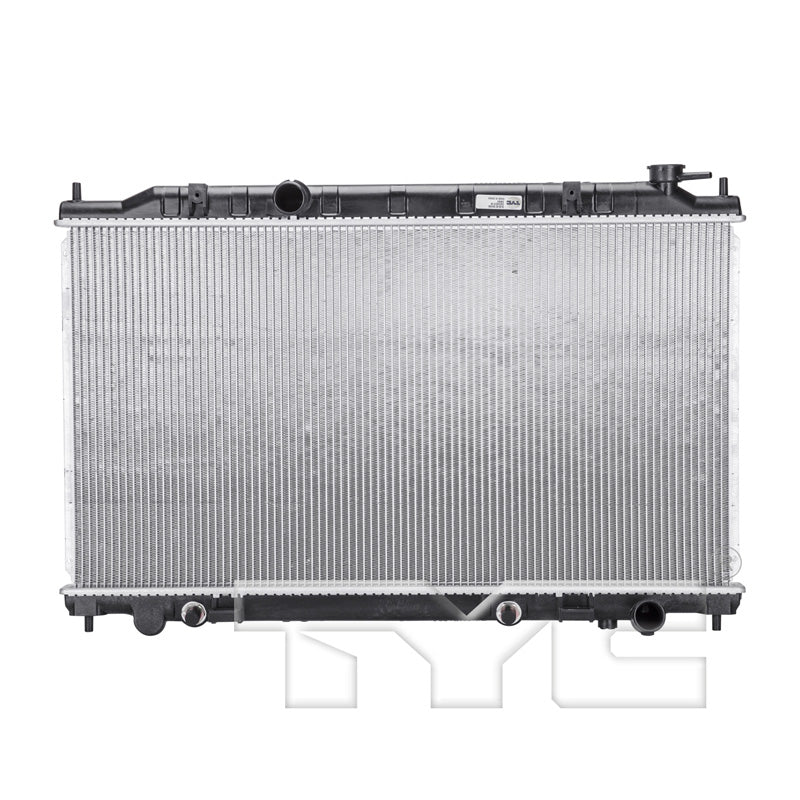

• Part Number: 2693
• 04-04 NS MAXMA 3.5L V6 AT 1R PA (w/ 4SPD) RAD
• Package L x W x H: 22.44" x 5.12" x 31.30"
• Package Weight: 9.70 lbs.

Interchanges

• CSF: 1736
• Nissan: 21460-8Y100
• Vista Pro: 432688
• Silla Cooling: 7173
• APDI: 8012693
• Spectra Premium: CU2693
• Tong Yang: DS37042A
• Partslink: NI3010195
• Delphi: NI3010203

Vehicle Fitment Table

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 2693.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
