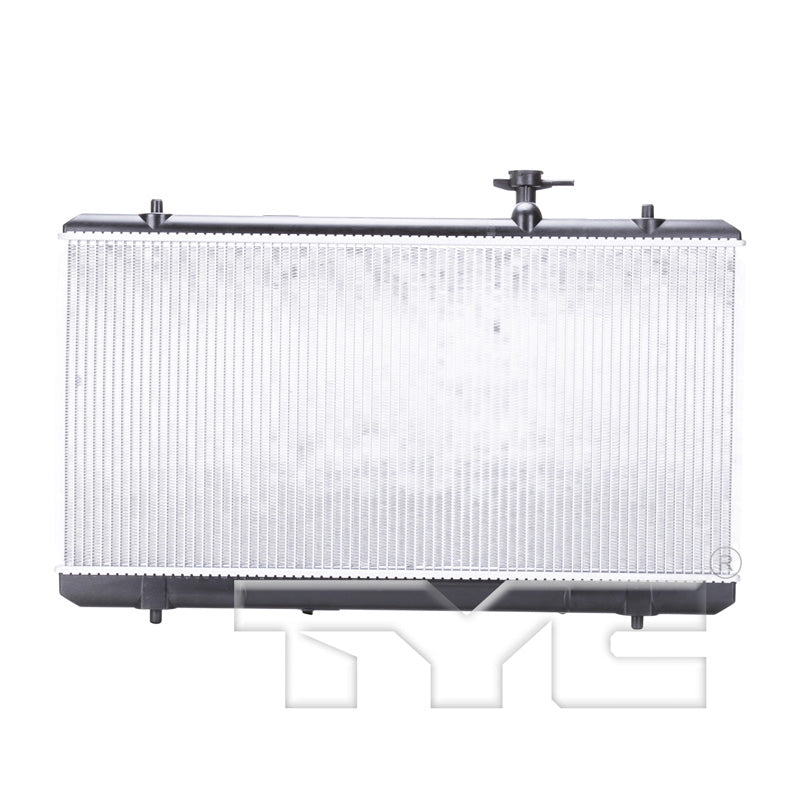

TYC 2451 Radiator Assembly for 2002-2007 Suzuki Aerio

TYC 2451 Radiator Assembly for 2002-2007 Suzuki Aerio
    TYC 2451 Radiator Assembly for 2002-2007 Suzuki Aerio
TYC 2451 Radiator Assembly for 2002-2007 Suzuki Aerio
Brand: TYC
$215.30 CAD
$215.30 CAD
Shipping calculated at checkout.

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.

2451
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Product Description

Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

  • No. Of Rows: 1
  • Total Tube Count: 71
  • Fin Count (every 4"): 64
  • Toc Inlet Type: Tube fitting
  • TOC Outlet Diameter (IN): 0.39
  • Core Thickness (in): 1.02
  • Core Length (in): 13.78
  • Transmission Oil Cooler Type: Concentric Oil Cooler
  • Bottom Header: 2.01x29.13
  • Fin Wave Pitch: 3.2
  • Core Height (in): 28.27
  • Transmission Oil Cooler Included: Yes
  • Inlet Connection Type: Hose Clamp
  • TOC Inlet Diameter (IN): 0.39
  • Toc Distance (in): 11.81
  • Top Header: 2.01x29.13
  • Tube Width X Height: 26x2
  • Toc Outlet Type: Tube fitting
  • Total Fin Row Count: 72
  • Engine Oil Cooler Included: No
  • Core Material: Aluminum
  • Outlet Connection Type: Hose Clamp
  • Fin Wave Height (in): 0.31
  • Tube Count (every 4"): 10
  • Inlet Diameter (in): 1.34
  • Flow Configuration: Downflow
  • Outlet Diameter (in): 1.34

Package Details

  • Part Number: 2451
  • 02-07 SZ A-ERIO 2.0L L4 AT 1R PA RAD
  • Package L x W x H: 21.06" x 6.30" x 30.31"
  • Package Weight: 10.74 lbs.

Interchanges

  • Suzuki: 17700-54G20
  • DENSO: 221-9378
  • CSF: 2436
  • Vista Pro: 432639
  • Silla Cooling: 7433
  • APDI: 8012451
  • Spectra Premium: CU2451
  • Partslink: SZ3010133

Vehicle Fitment Table

Year Make Model Position Fitment Precision Note
2002 Suzuki Aerio GS; 2.0L L4 2000cc; Sedan; Automatic, Primary / S; 2.0L L4 2000cc; Sedan; Automatic, Primary / SX; 2.0L L4 2000cc; Wagon; Automatic, Primary
2003 Suzuki Aerio GS; 2.0L L4 2000cc; Sedan; Automatic, Primary / S; 2.0L L4 2000cc; Sedan; Automatic, Primary / SX; 2.0L L4 2000cc; Wagon; Automatic, Primary
2004 Suzuki Aerio LX; 2.3L L4 2290cc 140ci; Sedan; Automatic, Primary / S; 2.3L L4 2290cc 140ci; Sedan; Automatic, Primary
2004 Suzuki Aerio SX; 2.3L L4 2290cc 140ci; Wagon; Automatic, Primary
2005 Suzuki Aerio LX; 2.3L L4 2290cc 140ci; Sedan; Automatic, Primary / S; 2.3L L4 2290cc 140ci; Sedan; Automatic, Primary
2005 Suzuki Aerio SX; 2.3L L4 2290cc 140ci; Wagon; Automatic, Primary
2006 Suzuki Aerio Base; 2.3L L4 2290cc 140ci; Sedan; Automatic, Primary / Premium; 2.3L L4 2290cc 140ci; Sedan; Automatic, Primary
2006 Suzuki Aerio SX Premium; 2.3L L4 2290cc 140ci; Wagon; Automatic, Primary
2006 Suzuki Aerio SX; 2.3L L4 2290cc 140ci; Wagon; Automatic, Primary
2007 Suzuki Aerio Base; 2.3L L4 2290cc 140ci; Sedan; Automatic, Primary / Premium; 2.3L L4 2290cc 140ci; Sedan; Automatic, Primary

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 2451.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
