Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

• Tube Count (every 4"): 10
• Core Material: Aluminum
• Outlet Connection Type: Hose Clamp
• Total Fin Row Count: 75
• Flow Configuration: Crossflow
• Toc Distance (in): 11.50
• Fin Wave Height (in): 0.35
• Core Height (in): 16.38
• Tube Width X Height: 16x2
• Transmission Oil Cooler Included: Yes
• Transmission Oil Cooler Type: Concentric Oil Cooler
• Engine Oil Cooler Included: No
• Fin Count (every 4"): 73
• Top Header: 2.3x17.56
• Inlet Connection Type: Hose Clamp
• No. Of Rows: 1
• Core Length (in): 27.68
• Inlet Diameter (in): 1.38
• Outlet Diameter (in): 1.38
• Bottom Header: 2.3x17.56
• Fin Wave Pitch: 2.8
• Total Tube Count: 74
• Core Thickness (in): 1.42

Package Details

• Part Number: 2442

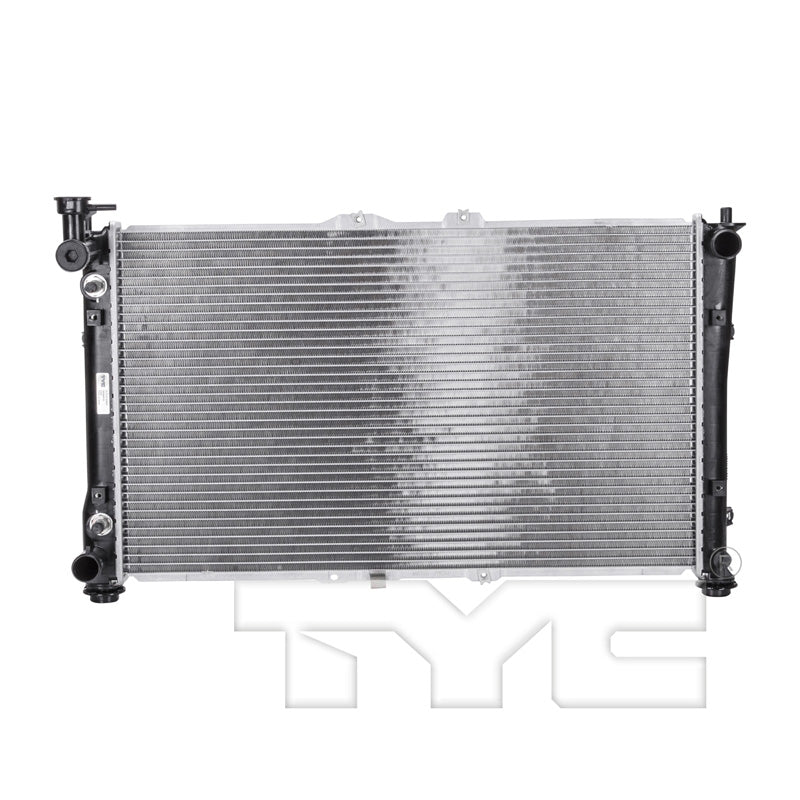

• 02-05 KA SDONA 3.5L V6 AT 1R PA (w/ TOC) RAD
• Package L x W x H: 21.85" x 9.65" x 34.65"
• Package Weight: 14.76 lbs.

Interchanges

• Kia: 0K52Y 15200D
• Vista Pro: 432536
• APDI: 8012442
• Spectra Premium: CU2442
• Partslink: KI3010113

Vehicle Fitment Table

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 2442.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
