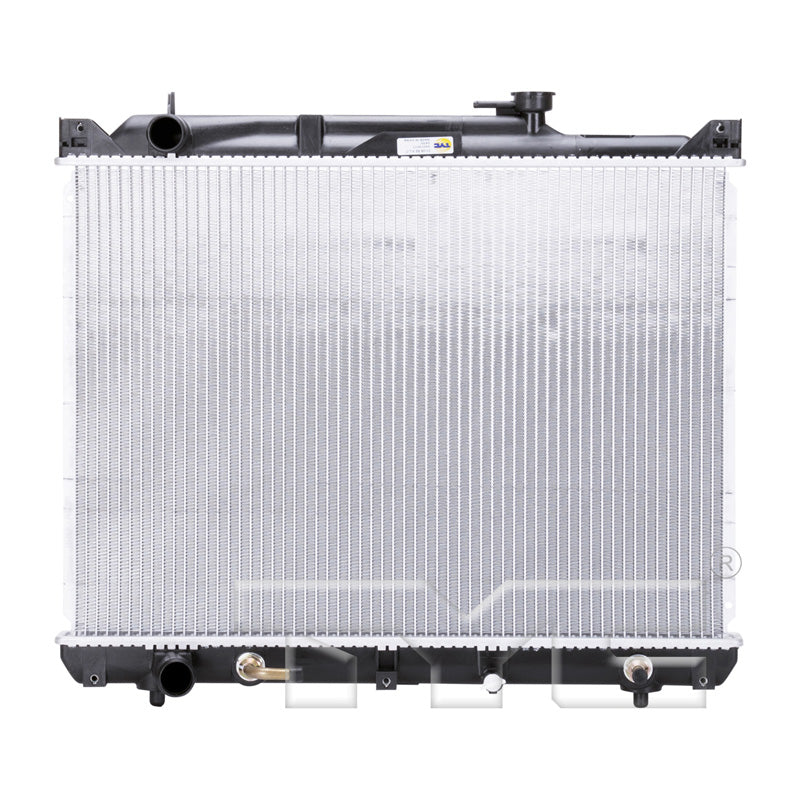

TYC 2430 Radiator Assembly for 2001-2005 Suzuki Grand Vitara

TYC 2430 Radiator Assembly for 2001-2005 Suzuki Grand Vitara
    TYC 2430 Radiator Assembly for 2001-2005 Suzuki Grand Vitara
TYC 2430 Radiator Assembly for 2001-2005 Suzuki Grand Vitara
Brand: TYC
$233.67 CAD
$233.67 CAD
Shipping calculated at checkout.

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.

2430
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Product Description

Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

  • Tube Count (every 4"): 10
  • Core Thickness (in): 1.02
  • Total Tube Count: 58
  • Outlet Diameter (in): 1.34
  • Core Material: Aluminum
  • Flow Configuration: Downflow
  • Inlet Diameter (in): 1.34
  • Toc Distance (in): 13.78
  • TOC Inlet Diameter (IN): 0.39
  • Fin Wave Pitch: 3
  • Toc Outlet Type: Tube fitting
  • Core Length (in): 16.73
  • Engine Oil Cooler Included: No
  • Top Header: 2.02x24.54
  • TOC Outlet Diameter (IN): 0.39
  • Toc Inlet Type: Tube fitting
  • Fin Wave Height (in): 0.31
  • Total Fin Row Count: 59
  • Transmission Oil Cooler Type: Concentric Oil Cooler
  • Outlet Connection Type: Hose Clamp
  • Tube Width X Height: 26x2
  • Inlet Connection Type: Hose Clamp
  • Bottom Header: 2.02x24.54
  • No. Of Rows: 1
  • Transmission Oil Cooler Included: Yes
  • Fin Count (every 4"): 68
  • Core Height (in): 23.15

Package Details

  • Part Number: 2430
  • 01-06 SZ X.L-7 2.7L V6 AT 1R PA RAD
  • Package L x W x H: 23.62" x 5.91" x 26.18"
  • Package Weight: 9.05 lbs.

Interchanges

  • Suzuki: 17700-52D11
  • DENSO: 221-4800
  • CSF: 3004
  • CSF: 3005
  • Vista Pro: 432457
  • Vista Pro: 432652
  • Silla Cooling: 7466
  • APDI: 8012430
  • Visteon: 8857
  • Spectra Premium: CU2430
  • Partslink: SZ3010121

Vehicle Fitment Table

Year Make Model Position Fitment Precision Note
2001 Suzuki Grand Vitara JLS Plus SE; 2.5L V6 2500cc; Sport Utility; RWD; Automatic, Primary / JLS Plus; 2.5L V6 2500cc; Sport Utility; RWD; Automatic, Primary / JLS; 2.5L V6 2500cc; Sport Utility; RWD; Automatic, Primary / Limited; 2.5L V6 2500cc; Sport Utility; RWD; Automatic, Primary From VIN 14155426
2001 Suzuki Grand Vitara JLX Plus SE; 2.5L V6 2500cc; Sport Utility; 4WD; Automatic, Primary / JLX Plus; 2.5L V6 2500cc; Sport Utility; 4WD; Automatic, Primary / JLX; 2.5L V6 2500cc; Sport Utility; 4WD; Automatic, Primary / Limited; 2.5L V6 2500cc; Sport Utility; 4WD; Automatic, Primary From VIN 14167643
2002 Suzuki Grand Vitara JLS; 2.5L V6 2500cc; Sport Utility; Automatic, Primary / JLX; 2.5L V6 2500cc; Sport Utility; Automatic, Primary / Limited; 2.5L V6 2500cc; Sport Utility; Automatic, Primary
2003 Suzuki Grand Vitara Base; 2.5L V6 2500cc; Sport Utility; Automatic, Primary
2004 Suzuki Grand Vitara EX; 2.5L V6 2500cc; Sport Utility; Automatic, Primary / LX; 2.5L V6 2500cc; Sport Utility; Automatic, Primary
2005 Suzuki Grand Vitara EX; 2.5L V6 2500cc; Sport Utility; Automatic, Primary / LX; 2.5L V6 2500cc; Sport Utility; Automatic, Primary
2002 Suzuki XL-7 Base; 2.7L V6 2737cc; Sport Utility; Automatic, Primary / Plus; 2.7L V6 2737cc; Sport Utility; Automatic, Primary
2002 Suzuki XL-7 Limited; 2.7L V6 2737cc; Sport Utility; Automatic, Primary / Touring; 2.7L V6 2737cc; Sport Utility; Automatic, Primary
2003 Suzuki XL-7 Limited; 2.7L V6 2737cc; Sport Utility; Automatic, Primary / Touring; 2.7L V6 2737cc; Sport Utility; Automatic, Primary

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 2430.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
