Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

• Transmission Oil Cooler Type: Concentric Oil Cooler
• Tube Count (every 4"): 10
• Toc Outlet Type: Tube fitting
• Fin Count (every 4"): 68
• Outlet Connection Type: Hose Clamp
• Core Material: Aluminum
• Fin Wave Height (in): 0.35
• Flow Configuration: Downflow
• Inlet Connection Type: Hose Clamp
• Total Tube Count: 62
• Toc Distance (in): 12.80
• Core Length (in): 13.78
• TOC Outlet Diameter (IN): 0.39
• Inlet Diameter (in): 1.26
• Total Fin Row Count: 63
• Fin Wave Pitch: 3
• TOC Inlet Diameter (IN): 0.39
• Core Thickness (in): 0.63
• Core Height (in): 27.2
• Bottom Header: 2.01x28.37
• Toc Inlet Type: Tube fitting
• Top Header: 2.01x28.37
• No. Of Rows: 1
• Tube Width X Height: 16x2
• Outlet Diameter (in): 1.26
• Transmission Oil Cooler Included: Yes
• Engine Oil Cooler Included: No

Package Details

• Part Number: 2412

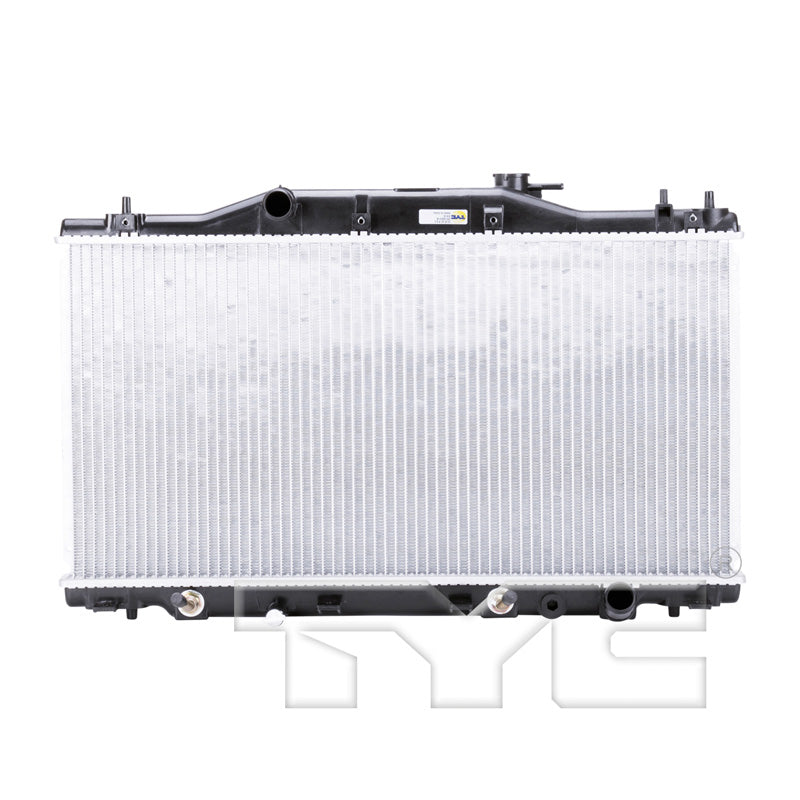

• 02-06 AC R.S.X 2.0L L4 A/MT 1R PA RAD
• Package L x W x H: 19.88" x 5.91" x 29.72"
• Package Weight: 8.34 lbs.

Interchanges

• Acura: 19010-PND-901
• DENSO: 221-9377
• CSF: 2915
• Vista Pro: 432622
• Silla Cooling: 7307
• APDI: 8012412
• Visteon: 9697
• Partslink: AC3010133
• Spectra Premium: CU2412

Vehicle Fitment Table

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 2412.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
