Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

• TOC Inlet Diameter (IN): 0.39
• No. Of Rows: 1
• Core Height (in): 25.04
• Total Tube Count: 57
• Flow Configuration: Downflow
• Toc Inlet Type: Tube fitting
• Outlet Connection Type: Hose Clamp
• Toc Distance (in): 10.83
• Outlet Diameter (in): 1.22
• Total Fin Row Count: 58
• Tube Count (every 4"): 10
• Toc Outlet Type: Tube fitting
• Fin Count (every 4"): 73
• Tube Width X Height: 26x2
• Transmission Oil Cooler Type: Concentric Oil Cooler
• Core Material: Aluminum
• TOC Outlet Diameter (IN): 0.39
• Inlet Connection Type: Hose Clamp
• Core Length (in): 13.78
• Engine Oil Cooler Included: No
• Fin Wave Pitch: 2.8
• Transmission Oil Cooler Included: Yes
• Core Thickness (in): 1.02
• Fin Wave Height (in): 0.35
• Top Header: 1.99x26.54
• Inlet Diameter (in): 1.22
• Bottom Header: 1.99x26.54

Package Details

• Part Number: 2392

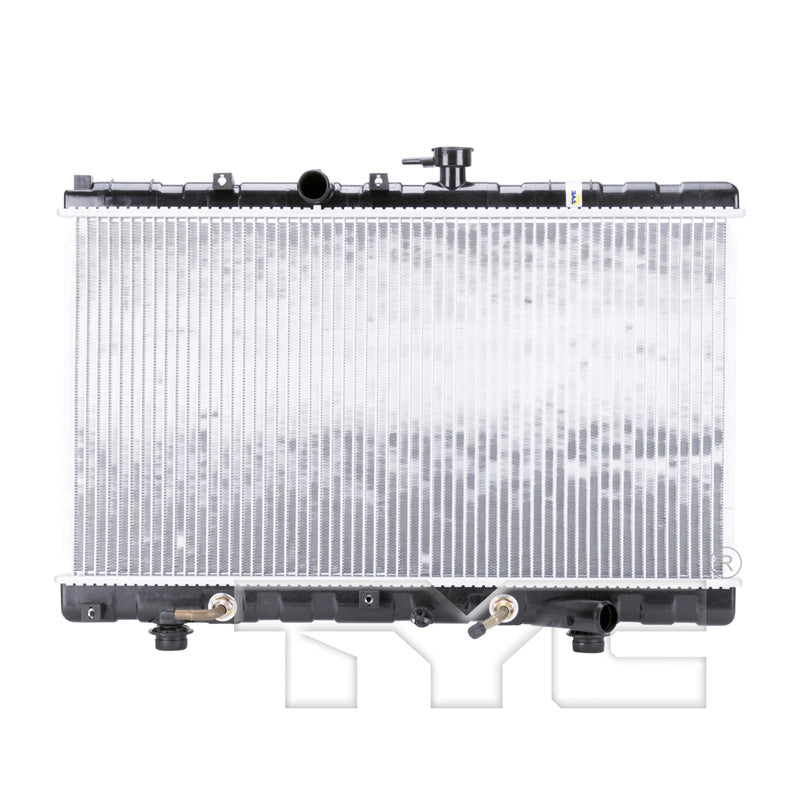

• 01-02 KA R-IO 1.5L A/MT 1R PA RAD
• Package L x W x H: 21.06" x 5.71" x 29.33"
• Package Weight: 9.59 lbs.

Interchanges

• Kia: 0K31F 15200E
• APDI: 8012392
• Spectra Premium: CU2392
• Partslink: KI3010102

Vehicle Fitment Table

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 2392.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
