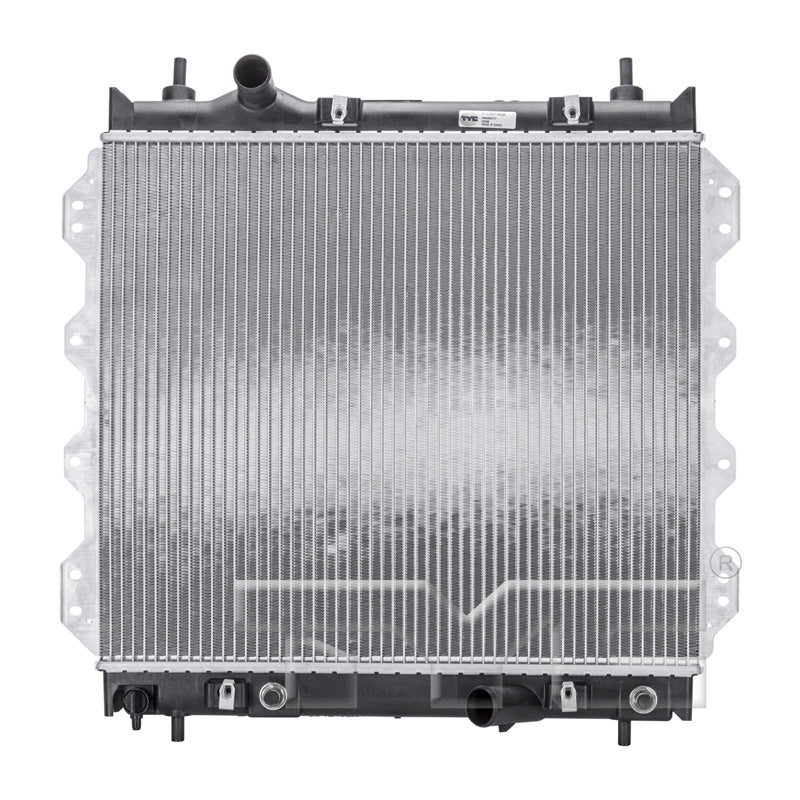

TYC 2298 Radiator Assembly for 2001-2010 Chrysler PT Cruiser

TYC 2298 Radiator Assembly for 2001-2010 Chrysler PT Cruiser
    TYC 2298 Radiator Assembly for 2001-2010 Chrysler PT Cruiser
TYC 2298 Radiator Assembly for 2001-2010 Chrysler PT Cruiser
Brand: TYC
$203.74 CAD
$203.74 CAD
Shipping calculated at checkout.

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.

2298
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Product Description

Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

  • Engine Oil Cooler Included: No
  • Total Tube Count: 52
  • Flow Configuration: Downflow
  • Fin Count (every 4"): 73
  • Toc Distance (in): 12.80
  • Outlet Connection Type: Hose Clamp
  • Inlet Diameter (in): 1.3
  • Core Material: Aluminum
  • Transmission Oil Cooler Type: Concentric Oil Cooler
  • Tube Count (every 4"): 10
  • No. Of Rows: 1
  • Fin Wave Height (in): 0.31
  • Core Length (in): 18.11
  • Bottom Header: 2.13x20.94
  • Tube Width X Height: 26x2
  • Outlet Diameter (in): 1.38
  • Core Height (in): 20.79
  • Fin Wave Pitch: 2.8
  • Core Thickness (in): 1.02
  • Transmission Oil Cooler Included: Yes
  • Top Header: 2.13x20.94
  • Inlet Connection Type: Hose Clamp
  • Total Fin Row Count: 53

Package Details

  • Part Number: 2298
  • 01-10 CR P CRUSR L4 A/MT 1R PA (w/o TUR) RAD
  • Package L x W x H: 25.59" x 5.51" x 26.18"
  • Package Weight: 10.74 lbs.

Interchanges

  • DENSO: 221-7007
  • Silla Cooling: 2298
  • Performance Radiator: 2298
  • CSF: 2972
  • CSF: 3109
  • Vista Pro: 431461
  • Chrysler: 5017404AD
  • APDI: 8012298
  • Visteon: 9908
  • Partslink: CH3010116
  • Tong Yang: CR37001A
  • Spectra Premium: CU2298
  • Reach Cooling: REA41-2298A

Vehicle Fitment Table

Year Make Model Position Fitment Precision Note
2001 Chrysler PT Cruiser Base; 2.4L L4 2429cc 148ci; Wagon; 2.4L L4 2429cc 148ci, Primary / Limited; 2.4L L4 2429cc 148ci; Wagon; 2.4L L4 2429cc 148ci, Primary / Touring; 2.4L L4 2429cc 148ci; Wagon; 2.4L L4 2429cc 148ci, Primary
2002 Chrysler PT Cruiser Base; 2.4L L4 2429cc 148ci; Wagon; 2.4L L4 2429cc 148ci, Primary / Limited; 2.4L L4 2429cc 148ci; Wagon; 2.4L L4 2429cc 148ci, Primary / Touring; 2.4L L4 2429cc 148ci; Wagon; 2.4L L4 2429cc 148ci, Primary
2002 Chrysler PT Cruiser Dream; 2.4L L4 2429cc 148ci; Wagon; 2.4L L4 2429cc 148ci, Primary
2003 Chrysler PT Cruiser Base; 2.4L L4 2429cc 148ci; Naturally Aspirated; Wagon; 2.4L L4 2429cc 148ci, Primary / Touring; 2.4L L4 2429cc 148ci; Naturally Aspirated; Wagon; 2.4L L4 2429cc 148ci, Primary
2003 Chrysler PT Cruiser Limited; 2.4L L4 2429cc 148ci; Naturally Aspirated; Wagon; 2.4L L4 2429cc 148ci, Primary
2004 Chrysler PT Cruiser Base; 2.4L L4 2429cc 148ci; Naturally Aspirated; Wagon; 2.4L L4 2429cc 148ci, Primary / Touring; 2.4L L4 2429cc 148ci; Naturally Aspirated; Wagon; 2.4L L4 2429cc 148ci, Primary
2004 Chrysler PT Cruiser Limited; 2.4L L4 2429cc 148ci; Naturally Aspirated; Wagon; 2.4L L4 2429cc 148ci, Primary
2005 Chrysler PT Cruiser Base; 2.4L L4 2429cc 148ci; Naturally Aspirated; Wagon; 2.4L L4 2429cc 148ci, Primary / Touring; 2.4L L4 2429cc 148ci; Naturally Aspirated; Wagon; 2.4L L4 2429cc 148ci, Primary
2005 Chrysler PT Cruiser Limited; 2.4L L4 2429cc 148ci; Naturally Aspirated; Wagon; 2.4L L4 2429cc 148ci, Primary
2005 Chrysler PT Cruiser Touring; 2.4L L4 2429cc 148ci; Naturally Aspirated; Convertible; 2.4L L4 2429cc 148ci, Primary
2006 Chrysler PT Cruiser Base; 2.4L L4 2429cc 148ci; Naturally Aspirated; Convertible; 2.4L L4 2429cc 148ci, Primary
2006 Chrysler PT Cruiser Base; 2.4L L4 2429cc 148ci; Naturally Aspirated; Wagon; 2.4L L4 2429cc 148ci, Primary / Touring; 2.4L L4 2429cc 148ci; Naturally Aspirated; Wagon; 2.4L L4 2429cc 148ci, Primary
2006 Chrysler PT Cruiser Limited; 2.4L L4 2429cc 148ci; Naturally Aspirated; Wagon; 2.4L L4 2429cc 148ci, Primary
2006 Chrysler PT Cruiser Street Cruiser; 2.4L L4 2429cc 148ci; Naturally Aspirated; Wagon; 2.4L L4 2429cc 148ci, Primary
2006 Chrysler PT Cruiser Touring; 2.4L L4 2429cc 148ci; Naturally Aspirated; Convertible; 2.4L L4 2429cc 148ci, Primary
2007 Chrysler PT Cruiser Base; 2.4L L4 2429cc 148ci; Naturally Aspirated; Convertible; 2.4L L4 2429cc 148ci, Primary
2007 Chrysler PT Cruiser Base; 2.4L L4 2429cc 148ci; Naturally Aspirated; Wagon; 2.4L L4 2429cc 148ci, Primary / Touring; 2.4L L4 2429cc 148ci; Naturally Aspirated; Wagon; 2.4L L4 2429cc 148ci, Primary
2007 Chrysler PT Cruiser Limited; 2.4L L4 2429cc 148ci; Naturally Aspirated; Wagon; 2.4L L4 2429cc 148ci, Primary
2007 Chrysler PT Cruiser Touring; 2.4L L4 2429cc 148ci; Naturally Aspirated; Convertible; 2.4L L4 2429cc 148ci, Primary
2008 Chrysler PT Cruiser Base; 2.4L L4 2429cc 148ci; Naturally Aspirated; Convertible; 2.4L L4 2429cc 148ci, Primary
2008 Chrysler PT Cruiser Base; 2.4L L4 2429cc 148ci; Naturally Aspirated; Wagon; 2.4L L4 2429cc 148ci, Primary / Touring; 2.4L L4 2429cc 148ci; Naturally Aspirated; Wagon; 2.4L L4 2429cc 148ci, Primary
2008 Chrysler PT Cruiser Limited; 2.4L L4 2429cc 148ci; Naturally Aspirated; Wagon; 2.4L L4 2429cc 148ci, Primary
2008 Chrysler PT Cruiser LX; 2.4L L4 2429cc 148ci; Naturally Aspirated; Wagon; 2.4L L4 2429cc 148ci, Primary
2008 Chrysler PT Cruiser Touring; 2.4L L4 2429cc 148ci; Naturally Aspirated; Convertible; 2.4L L4 2429cc 148ci, Primary
2009 Chrysler PT Cruiser Base; 2.4L L4 2429cc 148ci; Naturally Aspirated; Wagon; 2.4L L4 2429cc 148ci, Primary / Touring; 2.4L L4 2429cc 148ci; Naturally Aspirated; Wagon; 2.4L L4 2429cc 148ci, Primary
2009 Chrysler PT Cruiser LX; 2.4L L4 2429cc 148ci; Naturally Aspirated; Wagon; 2.4L L4 2429cc 148ci, Primary
2010 Chrysler PT Cruiser Classic; 2.4L L4 2429cc 148ci; Wagon; 2.4L L4 2429cc 148ci, Primary / Couture Edition; 2.4L L4 2429cc 148ci; Wagon; 2.4L L4 2429cc 148ci, Primary

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 2298.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
