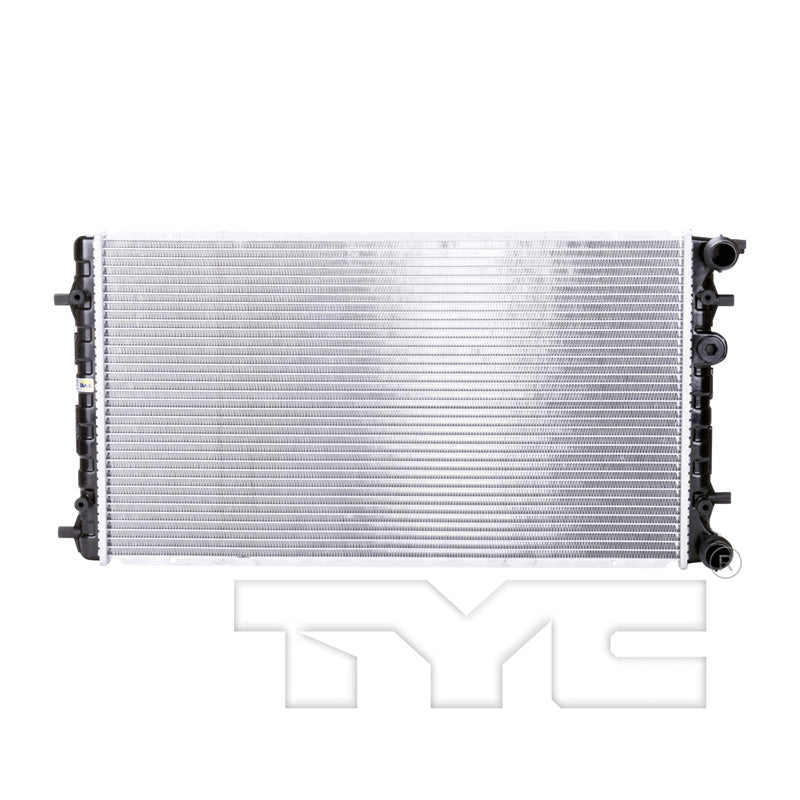

TYC 2241 Radiator Assembly for 1998-2007 Volkswagen Beetle

TYC 2241 Radiator Assembly for 1998-2007 Volkswagen Beetle
    TYC 2241 Radiator Assembly for 1998-2007 Volkswagen Beetle
TYC 2241 Radiator Assembly for 1998-2007 Volkswagen Beetle
Brand: TYC
$192.10 CAD
$192.10 CAD
Shipping calculated at checkout.

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.

2241
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Product Description

Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

  • Outlet Connection Type: Quick Connect (Spring Lock)
  • Engine Oil Cooler Included: No
  • Inlet Connection Type: Quick Connect (Spring Lock)
  • Top Header: 2.01x15.02
  • No. Of Rows: 1
  • Transmission Oil Cooler Included: No
  • Core Thickness (in): 1.26
  • Flow Configuration: Crossflow
  • Tube Count (every 4"): 10
  • Total Tube Count: 35
  • Outlet Diameter (in): 1.26
  • Bottom Header: 2.01x15.02
  • Core Height (in): 14.09
  • Core Length (in): 25.51
  • Inlet Diameter (in): 1.26
  • Fin Wave Height (in): 0.31
  • Fin Count (every 4"): 64
  • Core Material: Aluminum
  • Total Fin Row Count: 36
  • Fin Wave Pitch: 3.2
  • Tube Width X Height: 32x2

Package Details

  • Part Number: 2241
  • 98-07 VW NEW BEETL 1.8T/1.9/2.0L A/MT 1R PA RAD
  • Package L x W x H: 16.54" x 5.31" x 31.89"
  • Package Weight: 9.57 lbs.

Interchanges

  • Volkswagen: 1C0 121 253 A
  • Vista Pro: 432608
  • APDI: 8012241
  • Spectra Premium: CU2241
  • Partslink: VW3010112

Vehicle Fitment Table

Year Make Model Position Fitment Precision Note
1998 Volkswagen Beetle Base; 2.0L L4 1984cc 121ci; Hatchback; 2.0L L4 1984cc 121ci, Primary
1998 Volkswagen Beetle TDI; 1.9L L4 1896cc 116ci; Hatchback; 1.9L L4 1896cc 116ci, Primary
1999 Volkswagen Beetle Base; 2.0L L4 1984cc 121ci; Hatchback; 2.0L L4 1984cc 121ci, Primary
1999 Volkswagen Beetle GL; 1.8L L4 1781cc; Hatchback; 1.8L L4 1781cc, Primary / GLX; 1.8L L4 1781cc; Hatchback; 1.8L L4 1781cc, Primary
1999 Volkswagen Beetle GL; 1.9L L4 1896cc 116ci; Hatchback; 1.9L L4 1896cc 116ci, Primary / GLS; 1.9L L4 1896cc 116ci; Hatchback; 1.9L L4 1896cc 116ci, Primary
1999 Volkswagen Beetle GL; 2.0L L4 1984cc 121ci; Hatchback; 2.0L L4 1984cc 121ci, Primary / GLS; 1.8L L4 1781cc; Hatchback; 1.8L L4 1781cc, Primary
1999 Volkswagen Beetle GLS; 2.0L L4 1984cc 121ci; Hatchback; 2.0L L4 1984cc 121ci, Primary
1999 Volkswagen Beetle TDI; 1.9L L4 1896cc 116ci; Hatchback; 1.9L L4 1896cc 116ci, Primary
2000 Volkswagen Beetle GL; 1.8L L4 1781cc; Hatchback; 1.8L L4 1781cc, Primary / GLX; 1.8L L4 1781cc; Hatchback; 1.8L L4 1781cc, Primary
2000 Volkswagen Beetle GL; 1.9L L4 1896cc 116ci; Hatchback; 1.9L L4 1896cc 116ci, Primary / GLS; 1.9L L4 1896cc 116ci; Hatchback; 1.9L L4 1896cc 116ci, Primary
2000 Volkswagen Beetle GL; 2.0L L4 1984cc 121ci; Hatchback; 2.0L L4 1984cc 121ci, Primary / GLS; 1.8L L4 1781cc; Hatchback; 1.8L L4 1781cc, Primary
2000 Volkswagen Beetle GLS; 2.0L L4 1984cc 121ci; Hatchback; 2.0L L4 1984cc 121ci, Primary
2000 Volkswagen Beetle TDI; 1.9L L4 1896cc 116ci; Hatchback; 1.9L L4 1896cc 116ci, Primary
2001 Volkswagen Beetle GL; 1.8L L4 1781cc; Hatchback; 1.8L L4 1781cc, Primary / GLX; 1.8L L4 1781cc; Hatchback; 1.8L L4 1781cc, Primary
2001 Volkswagen Beetle GL; 1.9L L4 1896cc 116ci; Hatchback; 1.9L L4 1896cc 116ci, Primary / GLS; 1.9L L4 1896cc 116ci; Hatchback; 1.9L L4 1896cc 116ci, Primary
2001 Volkswagen Beetle GL; 2.0L L4 1984cc 121ci; Hatchback; 2.0L L4 1984cc 121ci, Primary / GLS; 1.8L L4 1781cc; Hatchback; 1.8L L4 1781cc, Primary
2001 Volkswagen Beetle GLS; 2.0L L4 1984cc 121ci; Hatchback; 2.0L L4 1984cc 121ci, Primary
2001 Volkswagen Beetle Sport; 1.8L L4 1781cc; Hatchback; 1.8L L4 1781cc, Primary / Sport; 1.9L L4 1896cc 116ci; Hatchback; 1.9L L4 1896cc 116ci, Primary
2001 Volkswagen Beetle Sport; 2.0L L4 1984cc 121ci; Hatchback; 2.0L L4 1984cc 121ci, Primary
2001 Volkswagen Beetle TDI; 1.9L L4 1896cc 116ci; Hatchback; 1.9L L4 1896cc 116ci, Primary
2002 Volkswagen Beetle GL; 1.8L L4 1781cc; Hatchback; 1.8L L4 1781cc, Primary / GLX; 1.8L L4 1781cc; Hatchback; 1.8L L4 1781cc, Primary
2002 Volkswagen Beetle GL; 1.9L L4 1896cc 116ci; Hatchback; 1.9L L4 1896cc 116ci, Primary / GLS; 1.9L L4 1896cc 116ci; Hatchback; 1.9L L4 1896cc 116ci, Primary
2002 Volkswagen Beetle GL; 2.0L L4 1984cc 121ci; Hatchback; 2.0L L4 1984cc 121ci, Primary / GLS; 1.8L L4 1781cc; Hatchback; 1.8L L4 1781cc, Primary
2002 Volkswagen Beetle GLS; 2.0L L4 1984cc 121ci; Hatchback; 2.0L L4 1984cc 121ci, Primary
2002 Volkswagen Beetle Sport; 1.8L L4 1781cc; Hatchback; 1.8L L4 1781cc, Primary / Sport; 1.9L L4 1896cc 116ci; Hatchback; 1.9L L4 1896cc 116ci, Primary
2002 Volkswagen Beetle Sport; 2.0L L4 1984cc 121ci; Hatchback; 2.0L L4 1984cc 121ci, Primary
2002 Volkswagen Beetle TDI; 1.9L L4 1896cc 116ci; Hatchback; 1.9L L4 1896cc 116ci, Primary
2002 Volkswagen Beetle Turbo S; 1.8L L4 1781cc; Hatchback; 1.8L L4 1781cc, Primary
2003 Volkswagen Beetle GL; 1.8L L4 1781cc; Convertible; 1.8L L4 1781cc, Primary
2003 Volkswagen Beetle GL; 1.8L L4 1781cc; Hatchback; 1.8L L4 1781cc, Primary / GLX; 1.8L L4 1781cc; Hatchback; 1.8L L4 1781cc, Primary
2003 Volkswagen Beetle GL; 1.9L L4 1896cc 116ci; Convertible; 1.9L L4 1896cc 116ci, Primary / GLS; 1.9L L4 1896cc 116ci; Convertible; 1.9L L4 1896cc 116ci, Primary / GLX; 1.8L L4 1781cc; Convertible; 1.8L L4 1781cc, Primary
2003 Volkswagen Beetle GL; 1.9L L4 1896cc 116ci; Hatchback; 1.9L L4 1896cc 116ci, Primary / GLS; 1.9L L4 1896cc 116ci; Hatchback; 1.9L L4 1896cc 116ci, Primary
2003 Volkswagen Beetle GL; 2.0L L4 1984cc 121ci; Convertible; 2.0L L4 1984cc 121ci, Primary / GLS; 1.8L L4 1781cc; Convertible; 1.8L L4 1781cc, Primary / GLS; 2.0L L4 1984cc 121ci; Convertible; 2.0L L4 1984cc 121ci, Primary
2003 Volkswagen Beetle GL; 2.0L L4 1984cc 121ci; Hatchback; 2.0L L4 1984cc 121ci, Primary / GLS; 1.8L L4 1781cc; Hatchback; 1.8L L4 1781cc, Primary
2003 Volkswagen Beetle GLS; 2.0L L4 1984cc 121ci; Hatchback; 2.0L L4 1984cc 121ci, Primary
2003 Volkswagen Beetle Sport; 2.0L L4 1984cc 121ci; Hatchback; 2.0L L4 1984cc 121ci, Primary
2003 Volkswagen Beetle TDI; 1.9L L4 1896cc 116ci; Hatchback; 1.9L L4 1896cc 116ci, Primary
2003 Volkswagen Beetle Turbo S; 1.8L L4 1781cc; Hatchback; 1.8L L4 1781cc, Primary
2004 Volkswagen Beetle GL; 1.9L L4 1896cc 116ci; Convertible; 1.9L L4 1896cc 116ci, Primary / GLS; 1.9L L4 1896cc 116ci; Convertible; 1.9L L4 1896cc 116ci, Primary / GLX; 1.8L L4 1781cc; Convertible; 1.8L L4 1781cc, Primary
2004 Volkswagen Beetle GL; 1.9L L4 1896cc 116ci; Hatchback; 1.9L L4 1896cc 116ci, Primary / GLS; 1.9L L4 1896cc 116ci; Hatchback; 1.9L L4 1896cc 116ci, Primary
2004 Volkswagen Beetle GL; 2.0L L4 1984cc 121ci; Convertible; 2.0L L4 1984cc 121ci, Primary / GLS; 1.8L L4 1781cc; Convertible; 1.8L L4 1781cc, Primary / GLS; 2.0L L4 1984cc 121ci; Convertible; 2.0L L4 1984cc 121ci, Primary
2004 Volkswagen Beetle GL; 2.0L L4 1984cc 121ci; Hatchback; 2.0L L4 1984cc 121ci, Primary / GLS; 1.8L L4 1781cc; Hatchback; 1.8L L4 1781cc, Primary
2004 Volkswagen Beetle GLS; 2.0L L4 1984cc 121ci; Hatchback; 2.0L L4 1984cc 121ci, Primary
2004 Volkswagen Beetle Sport; 2.0L L4 1984cc 121ci; Hatchback; 2.0L L4 1984cc 121ci, Primary
2004 Volkswagen Beetle TDI; 1.9L L4 1896cc 116ci; Hatchback; 1.9L L4 1896cc 116ci, Primary
2004 Volkswagen Beetle Turbo S; 1.8L L4 1781cc; Hatchback; 1.8L L4 1781cc, Primary
2005 Volkswagen Beetle GL; 2.0L L4 1984cc 121ci; Convertible; 2.0L L4 1984cc 121ci, Primary / GLS; 1.8L L4 1781cc; Convertible; 1.8L L4 1781cc, Primary / GLS; 2.0L L4 1984cc 121ci; Convertible; 2.0L L4 1984cc 121ci, Primary
2005 Volkswagen Beetle GL; 2.0L L4 1984cc 121ci; Hatchback; 2.0L L4 1984cc 121ci, Primary / GLS; 1.8L L4 1781cc; Hatchback; 1.8L L4 1781cc, Primary
2005 Volkswagen Beetle GLS TDI; 1.9L L4 1896cc 116ci; Hatchback; 1.9L L4 1896cc 116ci, Primary
2005 Volkswagen Beetle GLS; 2.0L L4 1984cc 121ci; Hatchback; 2.0L L4 1984cc 121ci, Primary
2005 Volkswagen Beetle Sport; 2.0L L4 1984cc 121ci; Hatchback; 2.0L L4 1984cc 121ci, Primary
2005 Volkswagen Beetle TDI; 1.9L L4 1896cc 116ci; Hatchback; 1.9L L4 1896cc 116ci, Primary
2005 Volkswagen Beetle Turbo S; 1.8L L4 1781cc; Hatchback; 1.8L L4 1781cc, Primary
2006 Volkswagen Beetle GLS; 2.0L L4 1984cc 121ci; Hatchback; 2.0L L4 1984cc 121ci, Primary
2006 Volkswagen Beetle Sport; 2.0L L4 1984cc 121ci; Hatchback; 2.0L L4 1984cc 121ci, Primary
2006 Volkswagen Beetle TDI; 1.9L L4 1896cc 116ci; Hatchback; 1.9L L4 1896cc 116ci, Primary
2007 Volkswagen Beetle GLS; 2.0L L4 1984cc 121ci; Hatchback; 2.0L L4 1984cc 121ci, Primary
2007 Volkswagen Beetle Sport; 2.0L L4 1984cc 121ci; Hatchback; 2.0L L4 1984cc 121ci, Primary

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 2241.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
