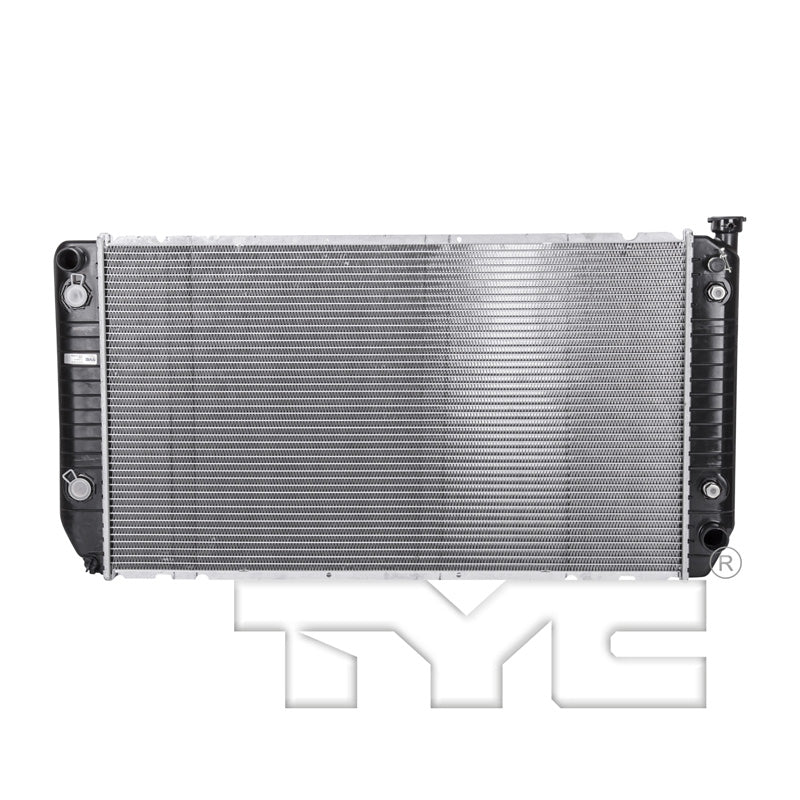

TYC 1696 Radiator Assembly for 1994-2000 Chevrolet C2500

TYC 1696 Radiator Assembly for 1994-2000 Chevrolet C2500
    TYC 1696 Radiator Assembly for 1994-2000 Chevrolet C2500
TYC 1696 Radiator Assembly for 1994-2000 Chevrolet C2500
Brand: TYC
$594.20 CAD
$594.20 CAD
Shipping calculated at checkout.

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.

1696
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Product Description

Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

  • Core Material: Aluminum
  • Total Tube Count: 44
  • Fin Count (every 4"): 41
  • Inlet Diameter (in): 1.38
  • Engine Oil Cooler Type: Plate Oil Cooler
  • Bottom Header: 3.16x20.66
  • TOC Outlet Diameter (IN): 1/2-20UNF
  • Transmission Oil Cooler Included: Yes
  • Toc Outlet Type: Adapter
  • Core Length (in): 34.09
  • TOC Inlet Diameter (IN): 1/2-20UNF
  • Top Header: 3.16x20.66
  • Fin Wave Pitch: 5
  • Fin Wave Height (in): 0.35
  • EOC Distance (IN): 11.50
  • No. Of Rows: 1
  • Tube Count (every 4"): 10
  • Outlet Connection Type: Hose Clamp
  • Outlet Diameter (in): 1.57
  • Inlet Connection Type: Hose Clamp
  • Tube Width X Height: 26x2
  • Core Height (in): 19.41
  • Toc Inlet Type: Adapter
  • Engine Oil Cooler Included: Yes
  • Transmission Oil Cooler Type: Plate Oil Cooler
  • Core Thickness (in): 2.2
  • Flow Configuration: Crossflow
  • Total Fin Row Count: 45
  • Toc Distance (in): 11.50

Package Details

  • Part Number: 1696
  • 94-00 CV CK PU 7.4L V8 A/MT 2R PA RAD
  • Package L x W x H: 25.59" x 7.48" x 46.06"
  • Package Weight: 26.40 lbs.

Interchanges

  • DPI (DataPoint Inc): 1796
  • Vista Pro: 431346
  • GMC: 52491621
  • Chevrolet: 52491621
  • APDI: 8011696
  • Spectra Premium: CU1696
  • Partslink: GM3010242

Vehicle Fitment Table

Year Make Model Position Fitment Precision Note
1994-1998 Chevrolet C2500 Cheyenne; 7.4L V8 454ci; Cab & Chassis; 7.4L V8 454ci, Primary / Cheyenne; 7.4L V8 454ci; Extended Cab Pickup; 7.4L V8 454ci, Primary / Cheyenne; 7.4L V8 454ci; Standard Cab Pickup; 7.4L V8 454ci, Primary / Silverado; 7.4L V8 454ci; Cab & Chassis; 7.4L V8 454ci, Primary / Silverado; 7.4L V8 454ci; Extended Cab Pickup; 7.4L V8 454ci, Primary / Silverado; 7.4L V8 454ci; Standard Cab Pickup; 7.4L V8 454ci, Primary / WT; 7.4L V8 454ci; Standard Cab Pickup; 7.4L V8 454ci, Primary w/o Raised Filler Neck
1994-1999 Chevrolet C2500 Base; 7.4L V8 454ci; Cab & Chassis; 7.4L V8 454ci, Primary / Base; 7.4L V8 454ci; Extended Cab Pickup; 7.4L V8 454ci, Primary / Base; 7.4L V8 454ci; Standard Cab Pickup; 7.4L V8 454ci, Primary w/o Raised Filler Neck
1999 Chevrolet C2500 Base; 7.4L V8 454ci; Crew Cab Pickup; 7.4L V8 454ci, Primary / LS; 7.4L V8 454ci; Cab & Chassis; 7.4L V8 454ci, Primary / LS; 7.4L V8 454ci; Crew Cab Pickup; 7.4L V8 454ci, Primary / LS; 7.4L V8 454ci; Extended Cab Pickup; 7.4L V8 454ci, Primary / LS; 7.4L V8 454ci; Standard Cab Pickup; 7.4L V8 454ci, Primary w/o Raised Filler Neck
2000 Chevrolet C2500 Base; 7.4L V8 454ci; Crew Cab Pickup; 7.4L V8 454ci, Primary / Base; 7.4L V8 454ci; Extended Cab Pickup; 7.4L V8 454ci, Primary / Base; 7.4L V8 454ci; Standard Cab Pickup; 7.4L V8 454ci, Primary / LS; 7.4L V8 454ci; Crew Cab Pickup; 7.4L V8 454ci, Primary / LS; 7.4L V8 454ci; Extended Cab Pickup; 7.4L V8 454ci, Primary / LS; 7.4L V8 454ci; Standard Cab Pickup; 7.4L V8 454ci, Primary w/o 15000 LB GVW; w/o Raised Filler Neck
1994 Chevrolet C2500 Suburban Silverado; 7.4L V8 454ci; Sport Utility; 7.4L V8 454ci, Primary w/o Raised Filler Neck
1994-1999 Chevrolet C2500 Suburban Base; 7.4L V8 454ci; Sport Utility; 7.4L V8 454ci, Primary w/o Raised Filler Neck
1995-1997 Chevrolet C2500 Suburban LT; 7.4L V8 454ci; Sport Utility; 7.4L V8 454ci, Primary w/o Raised Filler Neck
1995-1999 Chevrolet C2500 Suburban LS; 7.4L V8 454ci; Sport Utility; 7.4L V8 454ci, Primary w/o Raised Filler Neck
1994-1998 Chevrolet C3500 Cheyenne; 7.4L V8 454ci; Cab & Chassis; 7.4L V8 454ci, Primary / Cheyenne; 7.4L V8 454ci; Crew Cab Pickup; 7.4L V8 454ci, Primary / Cheyenne; 7.4L V8 454ci; Extended Cab Pickup; 7.4L V8 454ci, Primary / Cheyenne; 7.4L V8 454ci; Standard Cab Pickup; 7.4L V8 454ci, Primary / Silverado; 7.4L V8 454ci; Cab & Chassis; 7.4L V8 454ci, Primary / Silverado; 7.4L V8 454ci; Crew Cab Pickup; 7.4L V8 454ci, Primary / Silverado; 7.4L V8 454ci; Extended Cab Pickup; 7.4L V8 454ci, Primary / Silverado; 7.4L V8 454ci; Standard Cab Pickup; 7.4L V8 454ci, Primary w/o Raised Filler Neck
1994-1999 Chevrolet C3500 Base; 7.4L V8 454ci; Cab & Chassis; 7.4L V8 454ci, Primary / Base; 7.4L V8 454ci; Crew Cab Pickup; 7.4L V8 454ci, Primary / Base; 7.4L V8 454ci; Extended Cab Pickup; 7.4L V8 454ci, Primary / Base; 7.4L V8 454ci; Standard Cab Pickup; 7.4L V8 454ci, Primary w/o Raised Filler Neck
1999 Chevrolet C3500 LS; 7.4L V8 454ci; Cab & Chassis; 7.4L V8 454ci, Primary / LS; 7.4L V8 454ci; Crew Cab Pickup; 7.4L V8 454ci, Primary / LS; 7.4L V8 454ci; Extended Cab Pickup; 7.4L V8 454ci, Primary / LS; 7.4L V8 454ci; Standard Cab Pickup; 7.4L V8 454ci, Primary w/o Raised Filler Neck
2000 Chevrolet C3500 Base; 7.4L V8 454ci; Cab & Chassis; 7.4L V8 454ci, Primary / Base; 7.4L V8 454ci; Crew Cab Pickup; 7.4L V8 454ci, Primary / Base; 7.4L V8 454ci; Extended Cab Pickup; 7.4L V8 454ci, Primary / Base; 7.4L V8 454ci; Standard Cab Pickup; 7.4L V8 454ci, Primary / LS; 7.4L V8 454ci; Cab & Chassis; 7.4L V8 454ci, Primary / LS; 7.4L V8 454ci; Crew Cab Pickup; 7.4L V8 454ci, Primary / LS; 7.4L V8 454ci; Extended Cab Pickup; 7.4L V8 454ci, Primary / LS; 7.4L V8 454ci; Standard Cab Pickup; 7.4L V8 454ci, Primary w/o 15000 LB GVW; w/o Raised Filler Neck
1994-1999 Chevrolet C3500HD Base; 7.4L V8 454ci; Cab & Chassis - Conventional; 7.4L V8 454ci, Primary w/o Raised Filler Neck
1996-1999 Chevrolet C3500HD Base; 7.4L V8 454ci; Cab & Chassis - Crew Cab; 7.4L V8 454ci, Primary w/o Raised Filler Neck
2000 Chevrolet C3500HD Base; 7.4L V8 454ci; Cab & Chassis - Conventional; 7.4L V8 454ci, Primary / Base; 7.4L V8 454ci; Cab & Chassis - Crew Cab; 7.4L V8 454ci, Primary w/o 15000 LB GVW; w/o Raised Filler Neck
1994-1998 Chevrolet K2500 Cheyenne; 7.4L V8 454ci; Cab & Chassis; 7.4L V8 454ci, Primary / Cheyenne; 7.4L V8 454ci; Extended Cab Pickup; 7.4L V8 454ci, Primary / Cheyenne; 7.4L V8 454ci; Standard Cab Pickup; 7.4L V8 454ci, Primary / Silverado; 7.4L V8 454ci; Cab & Chassis; 7.4L V8 454ci, Primary / Silverado; 7.4L V8 454ci; Extended Cab Pickup; 7.4L V8 454ci, Primary / Silverado; 7.4L V8 454ci; Standard Cab Pickup; 7.4L V8 454ci, Primary / WT; 7.4L V8 454ci; Standard Cab Pickup; 7.4L V8 454ci, Primary w/o Raised Filler Neck
1994-1999 Chevrolet K2500 Base; 7.4L V8 454ci; Cab & Chassis; 7.4L V8 454ci, Primary / Base; 7.4L V8 454ci; Extended Cab Pickup; 7.4L V8 454ci, Primary / Base; 7.4L V8 454ci; Standard Cab Pickup; 7.4L V8 454ci, Primary w/o Raised Filler Neck
1999 Chevrolet K2500 Base; 7.4L V8 454ci; Crew Cab Pickup; 7.4L V8 454ci, Primary / LS; 7.4L V8 454ci; Cab & Chassis; 7.4L V8 454ci, Primary / LS; 7.4L V8 454ci; Crew Cab Pickup; 7.4L V8 454ci, Primary / LS; 7.4L V8 454ci; Extended Cab Pickup; 7.4L V8 454ci, Primary / LS; 7.4L V8 454ci; Standard Cab Pickup; 7.4L V8 454ci, Primary w/o Raised Filler Neck
2000 Chevrolet K2500 Base; 7.4L V8 454ci; Crew Cab Pickup; 7.4L V8 454ci, Primary / Base; 7.4L V8 454ci; Extended Cab Pickup; 7.4L V8 454ci, Primary / Base; 7.4L V8 454ci; Standard Cab Pickup; 7.4L V8 454ci, Primary / LS; 7.4L V8 454ci; Crew Cab Pickup; 7.4L V8 454ci, Primary / LS; 7.4L V8 454ci; Extended Cab Pickup; 7.4L V8 454ci, Primary / LS; 7.4L V8 454ci; Standard Cab Pickup; 7.4L V8 454ci, Primary w/o 15000 LB GVW; w/o Raised Filler Neck
1994 Chevrolet K2500 Suburban Silverado; 7.4L V8 454ci; Sport Utility; 7.4L V8 454ci, Primary w/o Raised Filler Neck
1994-1999 Chevrolet K2500 Suburban Base; 7.4L V8 454ci; Sport Utility; 7.4L V8 454ci, Primary w/o Raised Filler Neck
1995-1997 Chevrolet K2500 Suburban LT; 7.4L V8 454ci; Sport Utility; 7.4L V8 454ci, Primary w/o Raised Filler Neck
1995-1999 Chevrolet K2500 Suburban LS; 7.4L V8 454ci; Sport Utility; 7.4L V8 454ci, Primary w/o Raised Filler Neck
1994-1998 Chevrolet K3500 Cheyenne; 7.4L V8 454ci; Cab & Chassis; 7.4L V8 454ci, Primary / Cheyenne; 7.4L V8 454ci; Crew Cab Pickup; 7.4L V8 454ci, Primary / Cheyenne; 7.4L V8 454ci; Extended Cab Pickup; 7.4L V8 454ci, Primary / Cheyenne; 7.4L V8 454ci; Standard Cab Pickup; 7.4L V8 454ci, Primary / Silverado; 7.4L V8 454ci; Cab & Chassis; 7.4L V8 454ci, Primary / Silverado; 7.4L V8 454ci; Crew Cab Pickup; 7.4L V8 454ci, Primary / Silverado; 7.4L V8 454ci; Extended Cab Pickup; 7.4L V8 454ci, Primary / Silverado; 7.4L V8 454ci; Standard Cab Pickup; 7.4L V8 454ci, Primary w/o Raised Filler Neck
1994-1999 Chevrolet K3500 Base; 7.4L V8 454ci; Cab & Chassis; 7.4L V8 454ci, Primary / Base; 7.4L V8 454ci; Crew Cab Pickup; 7.4L V8 454ci, Primary / Base; 7.4L V8 454ci; Extended Cab Pickup; 7.4L V8 454ci, Primary / Base; 7.4L V8 454ci; Standard Cab Pickup; 7.4L V8 454ci, Primary w/o Raised Filler Neck
1999 Chevrolet K3500 LS; 7.4L V8 454ci; Cab & Chassis; 7.4L V8 454ci, Primary / LS; 7.4L V8 454ci; Crew Cab Pickup; 7.4L V8 454ci, Primary / LS; 7.4L V8 454ci; Extended Cab Pickup; 7.4L V8 454ci, Primary / LS; 7.4L V8 454ci; Standard Cab Pickup; 7.4L V8 454ci, Primary w/o Raised Filler Neck
2000 Chevrolet K3500 Base; 7.4L V8 454ci; Cab & Chassis; 7.4L V8 454ci, Primary / Base; 7.4L V8 454ci; Crew Cab Pickup; 7.4L V8 454ci, Primary / Base; 7.4L V8 454ci; Extended Cab Pickup; 7.4L V8 454ci, Primary / Base; 7.4L V8 454ci; Standard Cab Pickup; 7.4L V8 454ci, Primary / LS; 7.4L V8 454ci; Cab & Chassis; 7.4L V8 454ci, Primary / LS; 7.4L V8 454ci; Crew Cab Pickup; 7.4L V8 454ci, Primary / LS; 7.4L V8 454ci; Extended Cab Pickup; 7.4L V8 454ci, Primary / LS; 7.4L V8 454ci; Standard Cab Pickup; 7.4L V8 454ci, Primary w/o 15000 LB GVW; w/o Raised Filler Neck
2000 GMC C2500 Sierra SL; 7.4L V8 454ci; Crew Cab Pickup; 7.4L V8 454ci, Primary / Sierra SL; 7.4L V8 454ci; Extended Cab Pickup; 7.4L V8 454ci, Primary / Sierra SL; 7.4L V8 454ci; Standard Cab Pickup; 7.4L V8 454ci, Primary / Sierra SLE; 7.4L V8 454ci; Crew Cab Pickup; 7.4L V8 454ci, Primary / Sierra SLE; 7.4L V8 454ci; Extended Cab Pickup; 7.4L V8 454ci, Primary / Sierra SLE; 7.4L V8 454ci; Standard Cab Pickup; 7.4L V8 454ci, Primary / Sierra SLT; 7.4L V8 454ci; Crew Cab Pickup; 7.4L V8 454ci, Primary / Sierra SLT; 7.4L V8 454ci; Extended Cab Pickup; 7.4L V8 454ci, Primary w/o 15000 LB GVW; w/o Raised Filler Neck
1994-1999 GMC C2500 Suburban Base; 7.4L V8 454ci; Sport Utility; 7.4L V8 454ci, Primary / SLE; 7.4L V8 454ci; Sport Utility; 7.4L V8 454ci, Primary w/o Raised Filler Neck
1995-1999 GMC C2500 Suburban SLT; 7.4L V8 454ci; Sport Utility; 7.4L V8 454ci, Primary w/o Raised Filler Neck
2000 GMC C3500 Sierra SL; 7.4L V8 454ci; Cab & Chassis; 7.4L V8 454ci, Primary / Sierra SL; 7.4L V8 454ci; Crew Cab Pickup; 7.4L V8 454ci, Primary / Sierra SL; 7.4L V8 454ci; Extended Cab Pickup; 7.4L V8 454ci, Primary / Sierra SL; 7.4L V8 454ci; Standard Cab Pickup; 7.4L V8 454ci, Primary / Sierra SLE; 7.4L V8 454ci; Cab & Chassis; 7.4L V8 454ci, Primary / Sierra SLE; 7.4L V8 454ci; Crew Cab Pickup; 7.4L V8 454ci, Primary / Sierra SLE; 7.4L V8 454ci; Extended Cab Pickup; 7.4L V8 454ci, Primary / Sierra SLE; 7.4L V8 454ci; Standard Cab Pickup; 7.4L V8 454ci, Primary / Sierra SLT; 7.4L V8 454ci; Cab & Chassis; 7.4L V8 454ci, Primary / Sierra SLT; 7.4L V8 454ci; Crew Cab Pickup; 7.4L V8 454ci, Primary / Sierra SLT; 7.4L V8 454ci; Extended Cab Pickup; 7.4L V8 454ci, Primary / Sierra SLT; 7.4L V8 454ci; Standard Cab Pickup; 7.4L V8 454ci, Primary w/o 15000 LB GVW; w/o Raised Filler Neck
2000 GMC C3500HD Base; 7.4L V8 454ci; Cab & Chassis - Conventional; 7.4L V8 454ci, Primary / Base; 7.4L V8 454ci; Cab & Chassis - Crew Cab; 7.4L V8 454ci, Primary w/o 15000 LB GVW; w/o Raised Filler Neck
2000 GMC K2500 Sierra SL; 7.4L V8 454ci; Crew Cab Pickup; 7.4L V8 454ci, Primary / Sierra SL; 7.4L V8 454ci; Extended Cab Pickup; 7.4L V8 454ci, Primary / Sierra SL; 7.4L V8 454ci; Standard Cab Pickup; 7.4L V8 454ci, Primary / Sierra SLE; 7.4L V8 454ci; Crew Cab Pickup; 7.4L V8 454ci, Primary / Sierra SLE; 7.4L V8 454ci; Extended Cab Pickup; 7.4L V8 454ci, Primary / Sierra SLE; 7.4L V8 454ci; Standard Cab Pickup; 7.4L V8 454ci, Primary / Sierra SLT; 7.4L V8 454ci; Crew Cab Pickup; 7.4L V8 454ci, Primary / Sierra SLT; 7.4L V8 454ci; Extended Cab Pickup; 7.4L V8 454ci, Primary w/o 15000 LB GVW; w/o Raised Filler Neck
1994-1999 GMC K2500 Suburban Base; 7.4L V8 454ci; Sport Utility; 7.4L V8 454ci, Primary / SLE; 7.4L V8 454ci; Sport Utility; 7.4L V8 454ci, Primary w/o Raised Filler Neck
1995-1999 GMC K2500 Suburban SLT; 7.4L V8 454ci; Sport Utility; 7.4L V8 454ci, Primary w/o Raised Filler Neck
2000 GMC K3500 Sierra SL; 7.4L V8 454ci; Cab & Chassis; 7.4L V8 454ci, Primary / Sierra SL; 7.4L V8 454ci; Crew Cab Pickup; 7.4L V8 454ci, Primary / Sierra SL; 7.4L V8 454ci; Extended Cab Pickup; 7.4L V8 454ci, Primary / Sierra SL; 7.4L V8 454ci; Standard Cab Pickup; 7.4L V8 454ci, Primary / Sierra SLE; 7.4L V8 454ci; Cab & Chassis; 7.4L V8 454ci, Primary / Sierra SLE; 7.4L V8 454ci; Crew Cab Pickup; 7.4L V8 454ci, Primary / Sierra SLE; 7.4L V8 454ci; Extended Cab Pickup; 7.4L V8 454ci, Primary / Sierra SLE; 7.4L V8 454ci; Standard Cab Pickup; 7.4L V8 454ci, Primary / Sierra SLT; 7.4L V8 454ci; Cab & Chassis; 7.4L V8 454ci, Primary / Sierra SLT; 7.4L V8 454ci; Crew Cab Pickup; 7.4L V8 454ci, Primary / Sierra SLT; 7.4L V8 454ci; Extended Cab Pickup; 7.4L V8 454ci, Primary / Sierra SLT; 7.4L V8 454ci; Standard Cab Pickup; 7.4L V8 454ci, Primary w/o 15000 LB GVW; w/o Raised Filler Neck

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 1696.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
