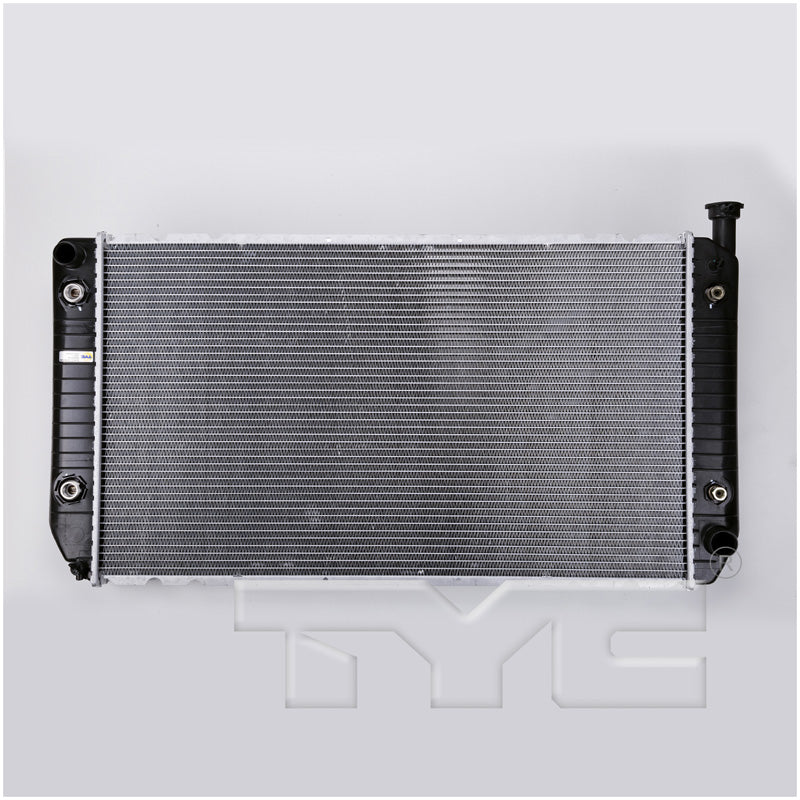

TYC 1521 Radiator Assembly for 1994-2000 Chevrolet C2500
Brand: TYC
- Regular price
- $635.35 CAD
- Sale price
- $635.35 CAD
- Regular price
-
Shipping calculated at checkout.
SKU:1521
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...
Product Description
Performance Overview
OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.
Key Features
Specifications
- Bottom Header: 3.16x20.66
- Engine Oil Cooler Type: Plate Oil Cooler
- TOC Outlet Diameter (IN): 1/2-20UNF
- Fin Wave Height (in): 0.35
- Outlet Connection Type: Hose Clamp
- Toc Outlet Type: Adapter
- Core Material: Aluminum
- Inlet Connection Type: Hose Clamp
- Core Thickness (in): 2.2
- Toc Distance (in): 11.50
- Top Header: 3.16x20.66
- Inlet Diameter (in): 1.38
- Fin Count (every 4"): 41
- Core Height (in): 19.41
- Tube Count (every 4"): 10
- Core Length (in): 34.09
- Tube Width X Height: 26x2
- TOC Inlet Diameter (IN): 1/2-20UNF
- No. Of Rows: 1
- Total Fin Row Count: 45
- Total Tube Count: 44
- Outlet Diameter (in): 1.57
- EOC Distance (IN): 11.50
- Transmission Oil Cooler Type: Plate Oil Cooler
- Engine Oil Cooler Included: Yes
- Flow Configuration: Crossflow
- Toc Inlet Type: Adapter
- Transmission Oil Cooler Included: Yes
- Fin Wave Pitch: 5
Package Details
- Part Number: 1521
- 94-00 CV C2500/3500 7.4L (R. Filler)AT 1R PA RAD
- Package L x W x H: 25.59" x 7.48" x 46.06"
- Package Weight: 26.73 lbs.
Interchanges
- DPI (DataPoint Inc): 1521
- CryoMAX: 1521
- OSC: 1521
- Thermal Solutions Manufacturing: 431342
- GMC: 52491625
- Chevrolet: 52491625
- APDI: 8011521
- Spectra Premium: CU1521
- CRS: CUC1521
- Partslink: GM3010264
- Sunbelt Radiators Inc: SBR1521
Vehicle Fitment Table
| Year | Make | Model | Position | Fitment Precision | Note |
| 1994 | Chevrolet | C2500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1995 | Chevrolet | C2500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1996 | Chevrolet | C2500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1997 | Chevrolet | C2500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1998 | Chevrolet | C2500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1999 | Chevrolet | C2500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 2000 | Chevrolet | C2500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1994 | Chevrolet | C2500 Suburban | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1995 | Chevrolet | C2500 Suburban | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1996 | Chevrolet | C2500 Suburban | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1997 | Chevrolet | C2500 Suburban | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1998 | Chevrolet | C2500 Suburban | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1999 | Chevrolet | C2500 Suburban | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1994 | Chevrolet | C3500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1995 | Chevrolet | C3500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1996 | Chevrolet | C3500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1997 | Chevrolet | C3500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1998 | Chevrolet | C3500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1999 | Chevrolet | C3500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 2000 | Chevrolet | C3500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1994 | Chevrolet | C3500HD | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1995 | Chevrolet | C3500HD | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1996 | Chevrolet | C3500HD | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1997 | Chevrolet | C3500HD | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1998 | Chevrolet | C3500HD | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1999 | Chevrolet | C3500HD | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 2000 | Chevrolet | C3500HD | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1994 | Chevrolet | K2500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1995 | Chevrolet | K2500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1996 | Chevrolet | K2500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1997 | Chevrolet | K2500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1998 | Chevrolet | K2500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1999 | Chevrolet | K2500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 2000 | Chevrolet | K2500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1994 | Chevrolet | K2500 Suburban | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1995 | Chevrolet | K2500 Suburban | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1996 | Chevrolet | K2500 Suburban | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1997 | Chevrolet | K2500 Suburban | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1998 | Chevrolet | K2500 Suburban | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1999 | Chevrolet | K2500 Suburban | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1994 | Chevrolet | K3500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1995 | Chevrolet | K3500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1996 | Chevrolet | K3500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1997 | Chevrolet | K3500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1998 | Chevrolet | K3500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1999 | Chevrolet | K3500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 2000 | Chevrolet | K3500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1994 | GMC | C2500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1995 | GMC | C2500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1996 | GMC | C2500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1997 | GMC | C2500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1998 | GMC | C2500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1999 | GMC | C2500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 2000 | GMC | C2500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1994 | GMC | C2500 Suburban | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1995 | GMC | C2500 Suburban | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1996 | GMC | C2500 Suburban | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1997 | GMC | C2500 Suburban | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1998 | GMC | C2500 Suburban | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1999 | GMC | C2500 Suburban | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1994 | GMC | C3500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1995 | GMC | C3500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1996 | GMC | C3500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1997 | GMC | C3500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1998 | GMC | C3500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1999 | GMC | C3500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 2000 | GMC | C3500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1994 | GMC | C3500HD | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1995 | GMC | C3500HD | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1996 | GMC | C3500HD | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1997 | GMC | C3500HD | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1998 | GMC | C3500HD | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1999 | GMC | C3500HD | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 2000 | GMC | C3500HD | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1994 | GMC | K2500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1995 | GMC | K2500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1996 | GMC | K2500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1997 | GMC | K2500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1998 | GMC | K2500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1999 | GMC | K2500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 2000 | GMC | K2500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1994 | GMC | K2500 Suburban | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1995 | GMC | K2500 Suburban | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1996 | GMC | K2500 Suburban | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1997 | GMC | K2500 Suburban | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1998 | GMC | K2500 Suburban | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1999 | GMC | K2500 Suburban | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1994 | GMC | K3500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1995 | GMC | K3500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1996 | GMC | K3500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1997 | GMC | K3500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1998 | GMC | K3500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 1999 | GMC | K3500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck | |
| 2000 | GMC | K3500 | 7.4L V8 454ci; Automatic | w/ Raised Filler Neck |
FAQ
Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.
What part number is this?
The listed part number is 1521.
Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.
Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
