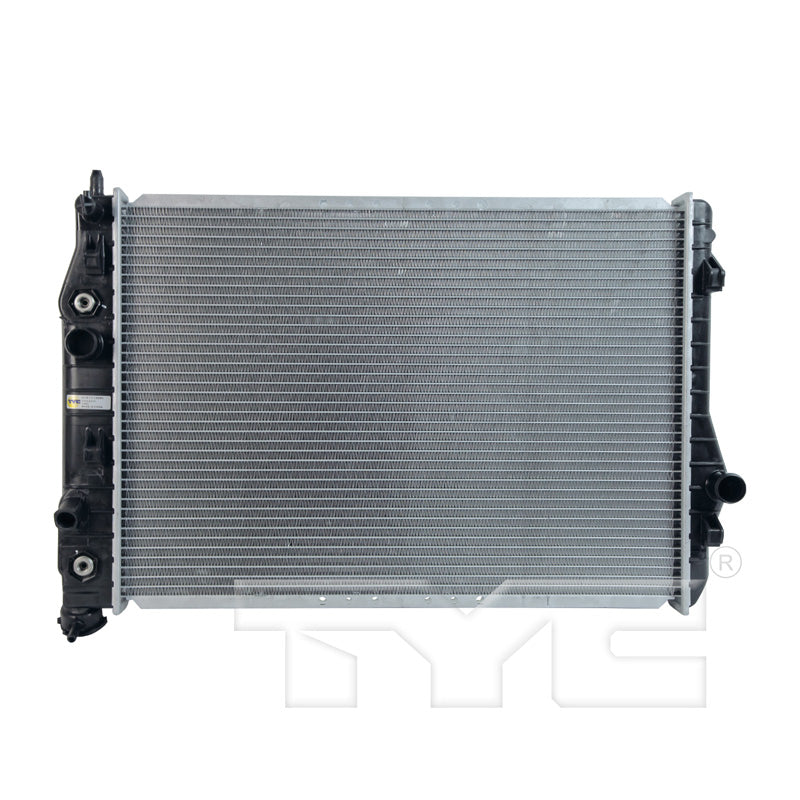

TYC 1485 Radiator Assembly for 1993-2002 Chevrolet Camaro

TYC 1485 Radiator Assembly for 1993-2002 Chevrolet Camaro
    TYC 1485 Radiator Assembly for 1993-2002 Chevrolet Camaro
TYC 1485 Radiator Assembly for 1993-2002 Chevrolet Camaro
Brand: TYC
$299.28 CAD
$299.28 CAD
Shipping calculated at checkout.

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.

1485
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Product Description

Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

  • Total Fin Row Count: 40
  • Core Height (in): 17.24
  • Tube Count (every 4"): 10
  • Core Thickness (in): 1.02
  • Outlet Connection Type: Hose Clamp
  • Inlet Diameter (in): 1.3
  • Fin Wave Pitch: 3.6
  • Flow Configuration: Crossflow
  • Outlet Diameter (in): 1.3
  • No. Of Rows: 1
  • Core Length (in): 24.8
  • Core Material: Aluminum
  • Top Header: 2.43x18.73
  • Fin Wave Height (in): 0.35
  • Toc Distance (in): 11.50
  • Total Tube Count: 39
  • Bottom Header: 2.43x18.73
  • Transmission Oil Cooler Type: Plate Oil Cooler
  • Tube Width X Height: 26x2
  • Engine Oil Cooler Included: No
  • Transmission Oil Cooler Included: Yes
  • Fin Count (every 4"): 56
  • Inlet Connection Type: Hose Clamp

Package Details

  • Part Number: 1485
  • 93-95 CV CAMRO 3.4L V6 A/MT 1R PA RAD
  • Package L x W x H: 23.03" x 6.30" x 31.30"
  • Package Weight: 11.55 lbs.

Interchanges

  • DPI (DataPoint Inc): 2361
  • Vista Pro: 432398
  • Chevrolet: 52470330
  • Pontiac: 52470330
  • APDI: 8011485
  • Spectra Premium: CU1485
  • Partslink: GM3010168
  • Partslink: GM3010170
  • Partslink: GM3010172

Vehicle Fitment Table

Year Make Model Position Fitment Precision Note
1993 Chevrolet Camaro Base; 3.4L V6 207ci; Convertible; 3.4L V6 207ci, Primary / Base; 3.4L V6 207ci; Coupe; 3.4L V6 207ci, Primary
1994 Chevrolet Camaro Base; 3.4L V6 207ci; Convertible; 3.4L V6 207ci, Primary / Base; 3.4L V6 207ci; Coupe; 3.4L V6 207ci, Primary
1995 Chevrolet Camaro Base; 3.4L V6 207ci; Convertible; 3.4L V6 207ci, Primary / Base; 3.4L V6 207ci; Coupe; 3.4L V6 207ci, Primary
1995 Chevrolet Camaro Base; 3.8L V6 3800cc 231ci; Convertible; 3.8L V6 3800cc 231ci, Primary / Base; 3.8L V6 3800cc 231ci; Coupe; 3.8L V6 3800cc 231ci, Primary
1996 Chevrolet Camaro Base; 3.8L V6 3800cc 231ci; Convertible; 3.8L V6 3800cc 231ci, Primary / Base; 3.8L V6 3800cc 231ci; Coupe; 3.8L V6 3800cc 231ci, Primary
1996 Chevrolet Camaro RS; 3.8L V6 3800cc 231ci; Convertible; 3.8L V6 3800cc 231ci, Primary / RS; 3.8L V6 3800cc 231ci; Coupe; 3.8L V6 3800cc 231ci, Primary
1997 Chevrolet Camaro Base; 3.8L V6 3800cc 231ci; Convertible; 3.8L V6 3800cc 231ci, Primary / Base; 3.8L V6 3800cc 231ci; Coupe; 3.8L V6 3800cc 231ci, Primary
1997 Chevrolet Camaro RS; 3.8L V6 3800cc 231ci; Convertible; 3.8L V6 3800cc 231ci, Primary / RS; 3.8L V6 3800cc 231ci; Coupe; 3.8L V6 3800cc 231ci, Primary
1998 Chevrolet Camaro Base; 3.8L V6 3800cc 231ci; Convertible; 3.8L V6 3800cc 231ci, Primary / Base; 3.8L V6 3800cc 231ci; Coupe; 3.8L V6 3800cc 231ci, Primary
1999 Chevrolet Camaro Base; 3.8L V6 3800cc 231ci; Convertible; 3.8L V6 3800cc 231ci, Primary / Base; 3.8L V6 3800cc 231ci; Coupe; 3.8L V6 3800cc 231ci, Primary
2000 Chevrolet Camaro Base; 3.8L V6 3800cc 231ci; Convertible; 3.8L V6 3800cc 231ci, Primary / Base; 3.8L V6 3800cc 231ci; Coupe; 3.8L V6 3800cc 231ci, Primary
2001 Chevrolet Camaro Base; 3.8L V6 3800cc 231ci; Convertible; 3.8L V6 3800cc 231ci, Primary / Base; 3.8L V6 3800cc 231ci; Coupe; 3.8L V6 3800cc 231ci, Primary
2002 Chevrolet Camaro Base; 3.8L V6 3800cc 231ci; Convertible; 3.8L V6 3800cc 231ci, Primary / Base; 3.8L V6 3800cc 231ci; Coupe; 3.8L V6 3800cc 231ci, Primary
1993 Pontiac Firebird Base; 3.4L V6 207ci; Coupe; 3.4L V6 207ci, Primary
1994 Pontiac Firebird Base; 3.4L V6 207ci; Convertible; 3.4L V6 207ci, Primary
1994 Pontiac Firebird Base; 3.4L V6 207ci; Coupe; 3.4L V6 207ci, Primary
1995 Pontiac Firebird Base; 3.4L V6 207ci; Convertible; 3.4L V6 207ci, Primary
1995 Pontiac Firebird Base; 3.4L V6 207ci; Coupe; 3.4L V6 207ci, Primary
1995 Pontiac Firebird Base; 3.8L V6 3800cc 231ci; Convertible; 3.8L V6 3800cc 231ci, Primary / Base; 3.8L V6 3800cc 231ci; Coupe; 3.8L V6 3800cc 231ci, Primary
1996 Pontiac Firebird Base; 3.8L V6 3800cc 231ci; Convertible; 3.8L V6 3800cc 231ci, Primary / Base; 3.8L V6 3800cc 231ci; Coupe; 3.8L V6 3800cc 231ci, Primary
1997 Pontiac Firebird Base; 3.8L V6 3800cc 231ci; Convertible; 3.8L V6 3800cc 231ci, Primary / Base; 3.8L V6 3800cc 231ci; Coupe; 3.8L V6 3800cc 231ci, Primary
1998 Pontiac Firebird Base; 3.8L V6 3800cc 231ci; Convertible; 3.8L V6 3800cc 231ci, Primary / Base; 3.8L V6 3800cc 231ci; Coupe; 3.8L V6 3800cc 231ci, Primary
1999 Pontiac Firebird Base; 3.8L V6 3800cc 231ci; Convertible; 3.8L V6 3800cc 231ci, Primary / Base; 3.8L V6 3800cc 231ci; Coupe; 3.8L V6 3800cc 231ci, Primary
2000 Pontiac Firebird Base; 3.8L V6 3800cc 231ci; Convertible; 3.8L V6 3800cc 231ci, Primary / Base; 3.8L V6 3800cc 231ci; Coupe; 3.8L V6 3800cc 231ci, Primary
2001 Pontiac Firebird Base; 3.8L V6 3800cc 231ci; Convertible; 3.8L V6 3800cc 231ci, Primary / Base; 3.8L V6 3800cc 231ci; Coupe; 3.8L V6 3800cc 231ci, Primary
2002 Pontiac Firebird Base; 3.8L V6 3800cc 231ci; Convertible; 3.8L V6 3800cc 231ci, Primary / Base; 3.8L V6 3800cc 231ci; Coupe; 3.8L V6 3800cc 231ci, Primary

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 1485.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
