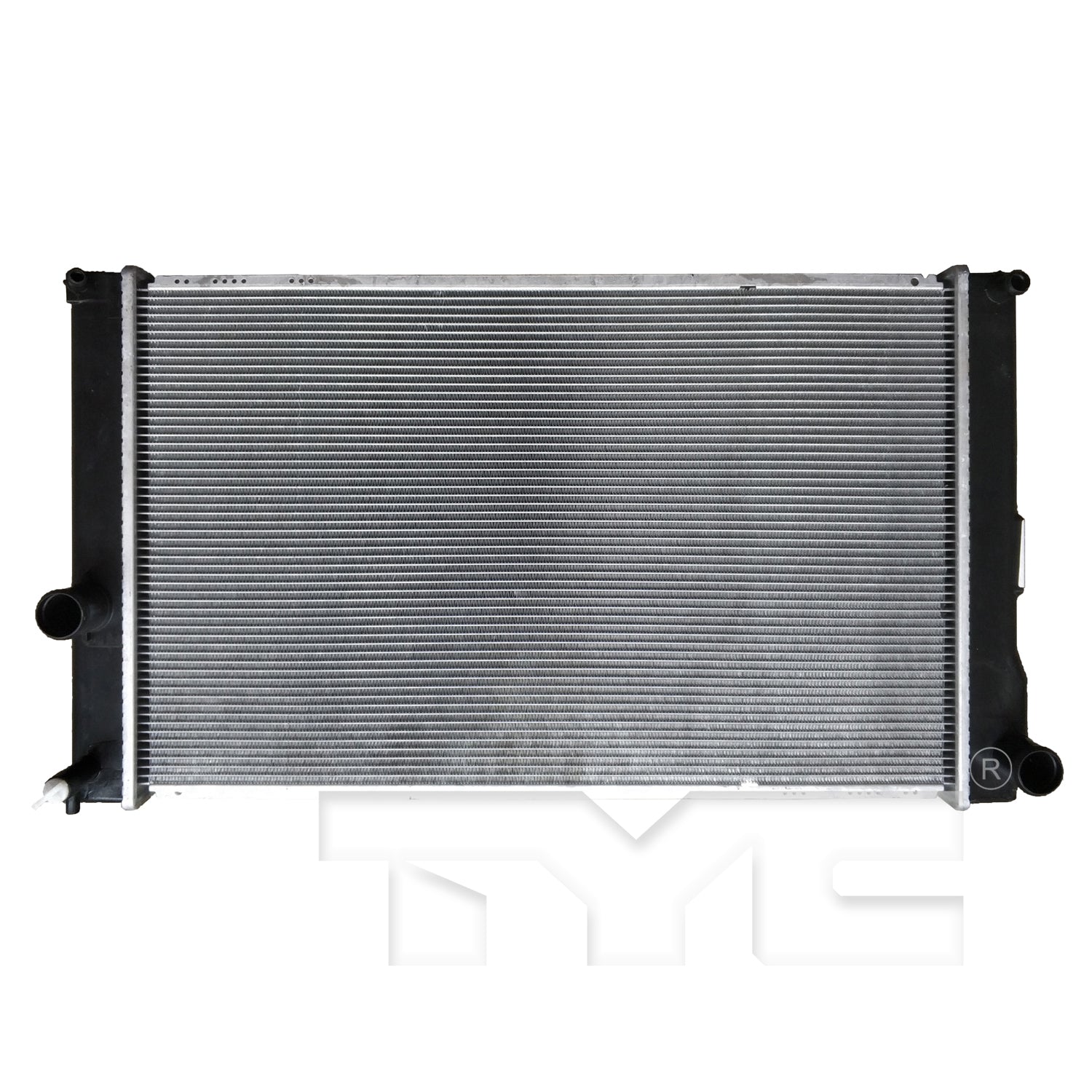

TYC 13696 Radiator Assembly for 2017 Toyota Prius V

TYC 13696 Radiator Assembly for 2017 Toyota Prius V
    TYC 13696 Radiator Assembly for 2017 Toyota Prius V
TYC 13696 Radiator Assembly for 2017 Toyota Prius V
Brand: TYC
$377.91 CAD
$377.91 CAD
Shipping calculated at checkout.

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.

13696
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Product Description

Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

  • Total Tube Count: 56
  • Inlet Diameter (in): 1.36
  • Core Material: Aluminum
  • Fin Wave Pitch: 2.6
  • Outlet Diameter (in): 1.36
  • No. Of Rows: 1
  • Inlet Connection Type: Hose Clamp
  • Core Length (in): 23.62
  • Outlet Connection Type: Hose Clamp
  • Engine Oil Cooler Included: No
  • Bottom Header: 1.69x15.88
  • Transmission Oil Cooler Included: No
  • Tube Count (every 4"): 16
  • Core Thickness (in): 0.63
  • Total Fin Row Count: 57
  • Top Header: 1.69x15.88
  • Core Height (in): 25.16
  • Flow Configuration: Crossflow
  • Fin Count (every 4"): 78
  • Fin Wave Height (in): 0.2
  • Tube Width X Height: 16x1.5

Package Details

  • Part Number: 13696
  • 17-18 TY PRUS V 1.8L L4 AT 1R PA RAD
  • Package L x W x H: 17.32" x 5.31" x 29.33"
  • Package Weight: 7.53 lbs.

Interchanges

  • OSC: 13696
  • Toyota: 16400-37290
  • Sunbelt Radiators Inc: SBR13696
  • Partslink: TO3010365

Vehicle Fitment Table

Year Make Model Position Fitment Precision Note
2017 Toyota Prius V Five; 1.8L L4 1798cc 110ci; Wagon; 1.8L L4 1798cc 110ci, Primary / Four; 1.8L L4 1798cc 110ci; Wagon; 1.8L L4 1798cc 110ci, Primary / Three; 1.8L L4 1798cc 110ci; Wagon; 1.8L L4 1798cc 110ci, Primary / Two; 1.8L L4 1798cc 110ci; Wagon; 1.8L L4 1798cc 110ci, Primary

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 13696.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
