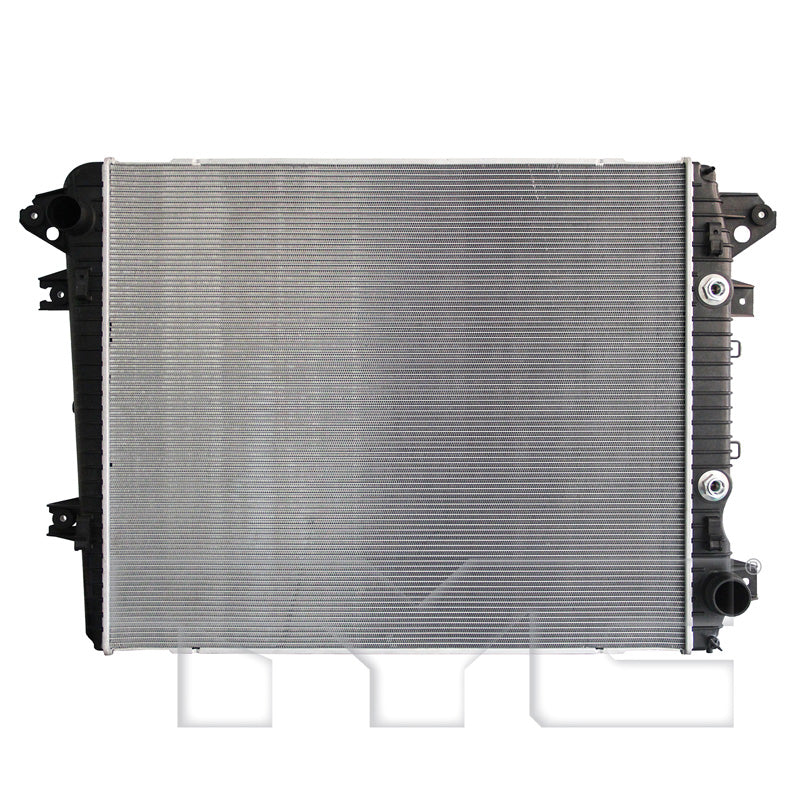

TYC 13690 Radiator Assembly for 2017-2019 Chevrolet Silverado 2500 HD

TYC 13690 Radiator Assembly for 2017-2019 Chevrolet Silverado 2500 HD
    TYC 13690 Radiator Assembly for 2017-2019 Chevrolet Silverado 2500 HD
TYC 13690 Radiator Assembly for 2017-2019 Chevrolet Silverado 2500 HD
Brand: TYC
$949.99 CAD
$949.99 CAD
Shipping calculated at checkout.

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.

13690
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Product Description

Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

  • Outlet Connection Type: Spring Lock
  • Fin Wave Height (in): 6.3
  • Tube Count (every 4"): 13
  • Core Length (in): 33.46
  • Inlet Connection Type: Hose Clamp
  • Core Height (in): 28.50
  • Total Tube Count: 184
  • Outlet Diamter: 56.5
  • Core Material: Aluminum
  • Transmission Oil Cooler Included: Yes
  • Core Thickness (in): 2.36
  • Fin Wave Pitch: 2.9
  • Inlet Diameter: 51
  • Flow Configuration: Crossflow
  • Engine Oil Cooler Included: No
  • Fin Count (every 4"): 70
  • Rows: 2

Package Details

  • Part Number: 13690
  • 17-19 CV/GC SLVRD/SIERA 2500HD 6.6L 2R PA RAD
  • Package L x W x H: 34.65" x 9.25" x 47.83"
  • Package Weight: 45.81 lbs.

Interchanges

  • GMC: 84224661
  • Chevrolet: 84224661
  • Partslink: GM3010615

Vehicle Fitment Table

Year Make Model Position Fitment Precision Note
2017 Chevrolet Silverado 2500 HD High Country; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary / LT; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary / LT; 6.6L V8 6599cc 403ci; Extended Cab Pickup; 6.6L V8 6599cc 403ci, Primary / LTZ; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary / WT; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary / WT; 6.6L V8 6599cc 403ci; Extended Cab Pickup; 6.6L V8 6599cc 403ci, Primary / WT; 6.6L V8 6599cc 403ci; Standard Cab Pickup; 6.6L V8 6599cc 403ci, Primary
2017 Chevrolet Silverado 2500 HD LT; 6.6L V8 6599cc 403ci; Standard Cab Pickup; 6.6L V8 6599cc 403ci, Primary / LTZ; 6.6L V8 6599cc 403ci; Extended Cab Pickup; 6.6L V8 6599cc 403ci, Primary
2018 Chevrolet Silverado 2500 HD High Country; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary / LT; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary / LT; 6.6L V8 6599cc 403ci; Extended Cab Pickup; 6.6L V8 6599cc 403ci, Primary / LTZ; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary / WT; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary / WT; 6.6L V8 6599cc 403ci; Extended Cab Pickup; 6.6L V8 6599cc 403ci, Primary / WT; 6.6L V8 6599cc 403ci; Standard Cab Pickup; 6.6L V8 6599cc 403ci, Primary
2018 Chevrolet Silverado 2500 HD LT; 6.6L V8 6599cc 403ci; Standard Cab Pickup; 6.6L V8 6599cc 403ci, Primary / LTZ; 6.6L V8 6599cc 403ci; Extended Cab Pickup; 6.6L V8 6599cc 403ci, Primary
2019 Chevrolet Silverado 2500 HD High Country; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary / LT; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary / LT; 6.6L V8 6599cc 403ci; Extended Cab Pickup; 6.6L V8 6599cc 403ci, Primary / LTZ; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary / WT; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary / WT; 6.6L V8 6599cc 403ci; Extended Cab Pickup; 6.6L V8 6599cc 403ci, Primary / WT; 6.6L V8 6599cc 403ci; Standard Cab Pickup; 6.6L V8 6599cc 403ci, Primary
2017 Chevrolet Silverado 3500 HD High Country; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary / LT; 6.6L V8 6599cc 403ci; Cab & Chassis; 6.6L V8 6599cc 403ci, Primary / LT; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary / LTZ; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary / WT; 6.6L V8 6599cc 403ci; Cab & Chassis; 6.6L V8 6599cc 403ci, Primary / WT; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary
2017 Chevrolet Silverado 3500 HD LT; 6.6L V8 6599cc 403ci; Extended Cab Pickup; 6.6L V8 6599cc 403ci, Primary / LT; 6.6L V8 6599cc 403ci; Standard Cab Pickup; 6.6L V8 6599cc 403ci, Primary / LTZ; 6.6L V8 6599cc 403ci; Extended Cab Pickup; 6.6L V8 6599cc 403ci, Primary / WT; 6.6L V8 6599cc 403ci; Extended Cab Pickup; 6.6L V8 6599cc 403ci, Primary / WT; 6.6L V8 6599cc 403ci; Standard Cab Pickup; 6.6L V8 6599cc 403ci, Primary
2018 Chevrolet Silverado 3500 HD High Country; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary / LT; 6.6L V8 6599cc 403ci; Cab & Chassis; 6.6L V8 6599cc 403ci, Primary / LT; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary / LTZ; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary / WT; 6.6L V8 6599cc 403ci; Cab & Chassis; 6.6L V8 6599cc 403ci, Primary / WT; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary
2018 Chevrolet Silverado 3500 HD LT; 6.6L V8 6599cc 403ci; Extended Cab Pickup; 6.6L V8 6599cc 403ci, Primary / LT; 6.6L V8 6599cc 403ci; Standard Cab Pickup; 6.6L V8 6599cc 403ci, Primary / LTZ; 6.6L V8 6599cc 403ci; Extended Cab Pickup; 6.6L V8 6599cc 403ci, Primary / WT; 6.6L V8 6599cc 403ci; Extended Cab Pickup; 6.6L V8 6599cc 403ci, Primary / WT; 6.6L V8 6599cc 403ci; Standard Cab Pickup; 6.6L V8 6599cc 403ci, Primary
2019 Chevrolet Silverado 3500 HD High Country; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary / LT; 6.6L V8 6599cc 403ci; Cab & Chassis; 6.6L V8 6599cc 403ci, Primary / LT; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary / LTZ; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary / WT; 6.6L V8 6599cc 403ci; Cab & Chassis; 6.6L V8 6599cc 403ci, Primary / WT; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary
2017 GMC Sierra 2500 HD Base; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary / Base; 6.6L V8 6599cc 403ci; Extended Cab Pickup; 6.6L V8 6599cc 403ci, Primary / Base; 6.6L V8 6599cc 403ci; Standard Cab Pickup; 6.6L V8 6599cc 403ci, Primary / Denali; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary / SLE; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary / SLE; 6.6L V8 6599cc 403ci; Extended Cab Pickup; 6.6L V8 6599cc 403ci, Primary / SLT; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary / SLT; 6.6L V8 6599cc 403ci; Extended Cab Pickup; 6.6L V8 6599cc 403ci, Primary
2017 GMC Sierra 2500 HD SLE; 6.6L V8 6599cc 403ci; Standard Cab Pickup; 6.6L V8 6599cc 403ci, Primary
2018 GMC Sierra 2500 HD Base; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary / Base; 6.6L V8 6599cc 403ci; Extended Cab Pickup; 6.6L V8 6599cc 403ci, Primary / Base; 6.6L V8 6599cc 403ci; Standard Cab Pickup; 6.6L V8 6599cc 403ci, Primary / Denali; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary / SLE; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary / SLE; 6.6L V8 6599cc 403ci; Extended Cab Pickup; 6.6L V8 6599cc 403ci, Primary / SLT; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary / SLT; 6.6L V8 6599cc 403ci; Extended Cab Pickup; 6.6L V8 6599cc 403ci, Primary
2018 GMC Sierra 2500 HD SLE; 6.6L V8 6599cc 403ci; Standard Cab Pickup; 6.6L V8 6599cc 403ci, Primary
2019 GMC Sierra 2500 HD Base; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary / Base; 6.6L V8 6599cc 403ci; Extended Cab Pickup; 6.6L V8 6599cc 403ci, Primary / Base; 6.6L V8 6599cc 403ci; Standard Cab Pickup; 6.6L V8 6599cc 403ci, Primary / Denali; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary / SLE; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary / SLE; 6.6L V8 6599cc 403ci; Extended Cab Pickup; 6.6L V8 6599cc 403ci, Primary / SLT; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary / SLT; 6.6L V8 6599cc 403ci; Extended Cab Pickup; 6.6L V8 6599cc 403ci, Primary
2017 GMC Sierra 3500 HD Base; 6.6L V8 6599cc 403ci; Cab & Chassis; 6.6L V8 6599cc 403ci, Primary / Base; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary / Denali; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary / SLE; 6.6L V8 6599cc 403ci; Cab & Chassis; 6.6L V8 6599cc 403ci, Primary / SLE; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary / SLT; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary
2017 GMC Sierra 3500 HD Base; 6.6L V8 6599cc 403ci; Extended Cab Pickup; 6.6L V8 6599cc 403ci, Primary / Base; 6.6L V8 6599cc 403ci; Standard Cab Pickup; 6.6L V8 6599cc 403ci, Primary / SLE; 6.6L V8 6599cc 403ci; Extended Cab Pickup; 6.6L V8 6599cc 403ci, Primary / SLE; 6.6L V8 6599cc 403ci; Standard Cab Pickup; 6.6L V8 6599cc 403ci, Primary / SLT; 6.6L V8 6599cc 403ci; Extended Cab Pickup; 6.6L V8 6599cc 403ci, Primary
2018 GMC Sierra 3500 HD Base; 6.6L V8 6599cc 403ci; Cab & Chassis; 6.6L V8 6599cc 403ci, Primary / Base; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary / Denali; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary / SLE; 6.6L V8 6599cc 403ci; Cab & Chassis; 6.6L V8 6599cc 403ci, Primary / SLE; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary / SLT; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary
2018 GMC Sierra 3500 HD Base; 6.6L V8 6599cc 403ci; Extended Cab Pickup; 6.6L V8 6599cc 403ci, Primary / Base; 6.6L V8 6599cc 403ci; Standard Cab Pickup; 6.6L V8 6599cc 403ci, Primary / SLE; 6.6L V8 6599cc 403ci; Extended Cab Pickup; 6.6L V8 6599cc 403ci, Primary / SLE; 6.6L V8 6599cc 403ci; Standard Cab Pickup; 6.6L V8 6599cc 403ci, Primary / SLT; 6.6L V8 6599cc 403ci; Extended Cab Pickup; 6.6L V8 6599cc 403ci, Primary
2019 GMC Sierra 3500 HD Base; 6.6L V8 6599cc 403ci; Cab & Chassis; 6.6L V8 6599cc 403ci, Primary / Base; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary / Denali; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary / SLE; 6.6L V8 6599cc 403ci; Cab & Chassis; 6.6L V8 6599cc 403ci, Primary / SLE; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary / SLT; 6.6L V8 6599cc 403ci; Crew Cab Pickup; 6.6L V8 6599cc 403ci, Primary

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 13690.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
