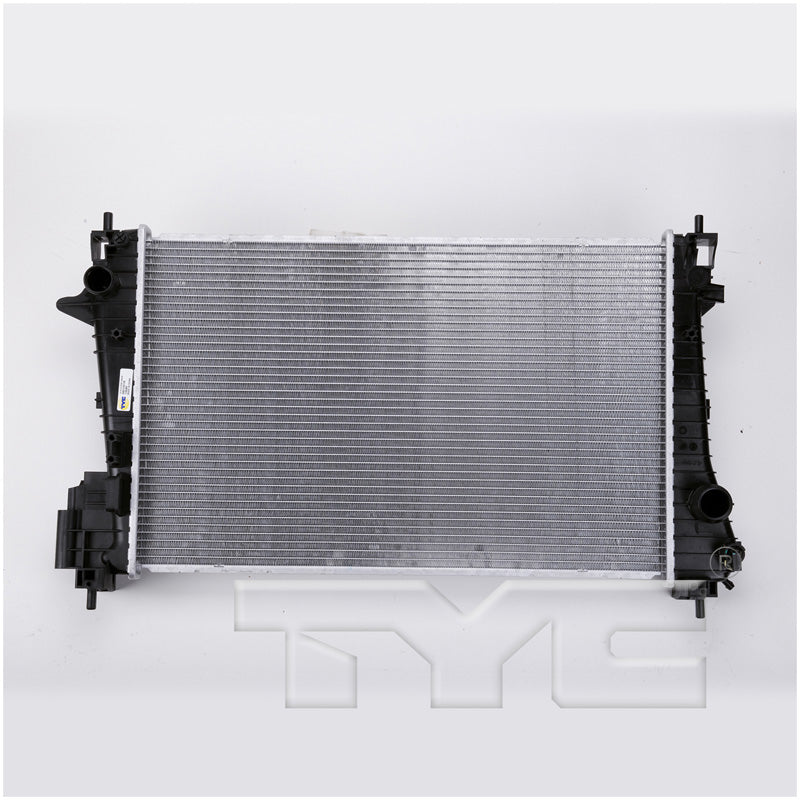

TYC 13680 Radiator Assembly for 2012-2019 Chevrolet Sonic

TYC 13680 Radiator Assembly for 2012-2019 Chevrolet Sonic
    TYC 13680 Radiator Assembly for 2012-2019 Chevrolet Sonic
TYC 13680 Radiator Assembly for 2012-2019 Chevrolet Sonic
Brand: TYC
$290.93 CAD
$290.93 CAD
Shipping calculated at checkout.

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.

13680
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Product Description

Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

  • Bottom Header: 1.77x16.69
  • Fin Wave Height (in): 0.31
  • Tube Width X Height: 16x1.5
  • Outlet Diameter (in): 1.52
  • Outlet Connection Type: Quick Connect (Spring Lock)
  • Core Length (in): 24.41
  • Inlet Connection Type: Hose Clamp
  • Tube Count (every 4"): 11
  • Total Tube Count: 40
  • Engine Oil Cooler Included: No
  • Fin Count (every 4"): 75
  • No. Of Rows: 1
  • Inlet Diameter (in): 1.36
  • Fin Wave Pitch: 2.7
  • Core Height (in): 15.28
  • Flow Configuration: Crossflow
  • Transmission Oil Cooler Included: No
  • Core Material: Aluminum
  • Top Header: 1.77x16.69
  • Total Fin Row Count: 41
  • Core Thickness (in): 0.63

Package Details

  • Part Number: 13680
  • 12-19 CV SONC HBSDN 1.4L L4 MT 1R PA RAD
  • Package L x W x H: 20.08" x 6.69" x 33.46"
  • Package Weight: 8.51 lbs.

Interchanges

  • Chevrolet: 95316048
  • Partslink: GM3010607

Vehicle Fitment Table

Year Make Model Position Fitment Precision Note
2012 Chevrolet Sonic LT; 1.4L L4 1364cc 83ci; Hatchback; Manual, Primary / LT; 1.4L L4 1364cc 83ci; Sedan; Manual, Primary
2012 Chevrolet Sonic LTZ; 1.4L L4 1364cc 83ci; Hatchback; Manual, Primary / LTZ; 1.4L L4 1364cc 83ci; Sedan; Manual, Primary
2013 Chevrolet Sonic LT; 1.4L L4 1364cc 83ci; Hatchback; Manual, Primary / LT; 1.4L L4 1364cc 83ci; Sedan; Manual, Primary
2013 Chevrolet Sonic LTZ; 1.4L L4 1364cc 83ci; Hatchback; Manual, Primary / LTZ; 1.4L L4 1364cc 83ci; Sedan; Manual, Primary
2013 Chevrolet Sonic RS; 1.4L L4 1364cc 83ci; Hatchback; Manual, Primary
2014 Chevrolet Sonic LT; 1.4L L4 1364cc 83ci; Hatchback; Manual, Primary / LT; 1.4L L4 1364cc 83ci; Sedan; Manual, Primary
2014 Chevrolet Sonic LTZ; 1.4L L4 1364cc 83ci; Hatchback; Manual, Primary / LTZ; 1.4L L4 1364cc 83ci; Sedan; Manual, Primary
2014 Chevrolet Sonic RS; 1.4L L4 1364cc 83ci; Hatchback; Manual, Primary
2015 Chevrolet Sonic LT; 1.4L L4 1364cc 83ci; Hatchback; Manual, Primary / LT; 1.4L L4 1364cc 83ci; Sedan; Manual, Primary
2015 Chevrolet Sonic LTZ; 1.4L L4 1364cc 83ci; Hatchback; Manual, Primary / LTZ; 1.4L L4 1364cc 83ci; Sedan; Manual, Primary
2015 Chevrolet Sonic RS; 1.4L L4 1364cc 83ci; Hatchback; Manual, Primary
2015 Chevrolet Sonic RS; 1.4L L4 1364cc 83ci; Sedan; Manual, Primary
2016 Chevrolet Sonic LT; 1.4L L4 1364cc 83ci; Hatchback; Manual, Primary / LT; 1.4L L4 1364cc 83ci; Sedan; Manual, Primary
2016 Chevrolet Sonic RS; 1.4L L4 1364cc 83ci; Hatchback; Manual, Primary
2016 Chevrolet Sonic RS; 1.4L L4 1364cc 83ci; Sedan; Manual, Primary
2017 Chevrolet Sonic LT; 1.4L L4 1364cc 83ci; Hatchback; Manual, Primary / LT; 1.4L L4 1364cc 83ci; Sedan; Manual, Primary
2017 Chevrolet Sonic Premier; 1.4L L4 1364cc 83ci; Hatchback; Manual, Primary / Premier; 1.4L L4 1364cc 83ci; Sedan; Manual, Primary
2018 Chevrolet Sonic LT; 1.4L L4 1364cc 83ci; Hatchback; Manual, Primary / LT; 1.4L L4 1364cc 83ci; Sedan; Manual, Primary
2018 Chevrolet Sonic Premier; 1.4L L4 1364cc 83ci; Hatchback; Manual, Primary / Premier; 1.4L L4 1364cc 83ci; Sedan; Manual, Primary
2019 Chevrolet Sonic LS; 1.4L L4 1364cc 83ci; Sedan; Manual, Primary
2019 Chevrolet Sonic LT; 1.4L L4 1364cc 83ci; Hatchback; Manual, Primary / LT; 1.4L L4 1364cc 83ci; Sedan; Manual, Primary
2019 Chevrolet Sonic Premier; 1.4L L4 1364cc 83ci; Hatchback; Manual, Primary / Premier; 1.4L L4 1364cc 83ci; Sedan; Manual, Primary

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 13680.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
