Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

• Engine Oil Cooler Included: No
• Toc Distance (in): 12.80
• Tube Count (every 4"): 16
• Transmission Oil Cooler Included: Yes
• Fin Wave Pitch: 2.4
• Total Fin Row Count: 117
• Top Header: 1.87x30.47
• Fin Count (every 4"): 85
• Bottom Header: 1.87x30.47
• Total Tube Count: 116
• Core Thickness (in): 1.02
• Flow Configuration: Downflow
• Outlet Connection Type: Hose Clamp
• Tube Width X Height: 26x1.5
• Fin Wave Height (in): 0.2
• Inlet Connection Type: Hose Clamp
• Inlet Diameter (in): 1.36
• Core Height (in): 29.88
• Toc Inlet Type: Tube fitting
• TOC Outlet Diameter (IN): 0.39
• TOC Inlet Diameter (IN): 0.39
• Core Material: Aluminum
• Outlet Diameter (in): 1.36
• No. Of Rows: 1
• Transmission Oil Cooler Type: Plate Oil Cooler
• Toc Outlet Type: Tube fitting
• Core Length (in): 17.68

Package Details

• Part Number: 13663

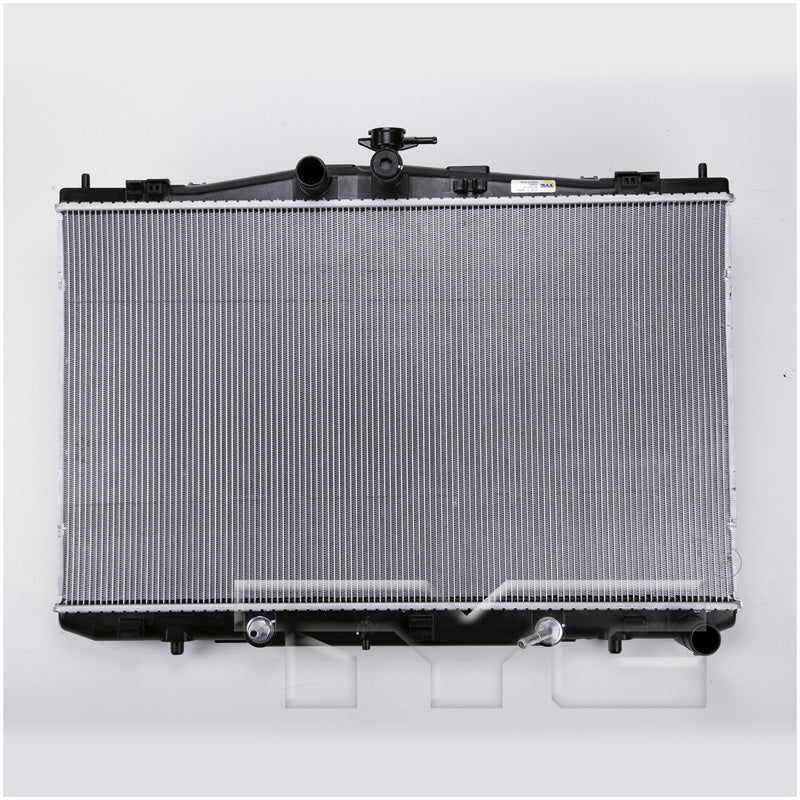

• 17-20 TY SIENA 3.5L V6 1R PA RAD
• Package L x W x H: 7.17" x 25.04" x 32.80"
• Package Weight: 16.10 lbs.

Interchanges

• DPI (DataPoint Inc): 13663
• OSC: 13663
• Toyota: 16041-0P280
• Sunbelt Radiators Inc: SBR13663
• Partslink: TO3010360

Vehicle Fitment Table

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 13663.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
