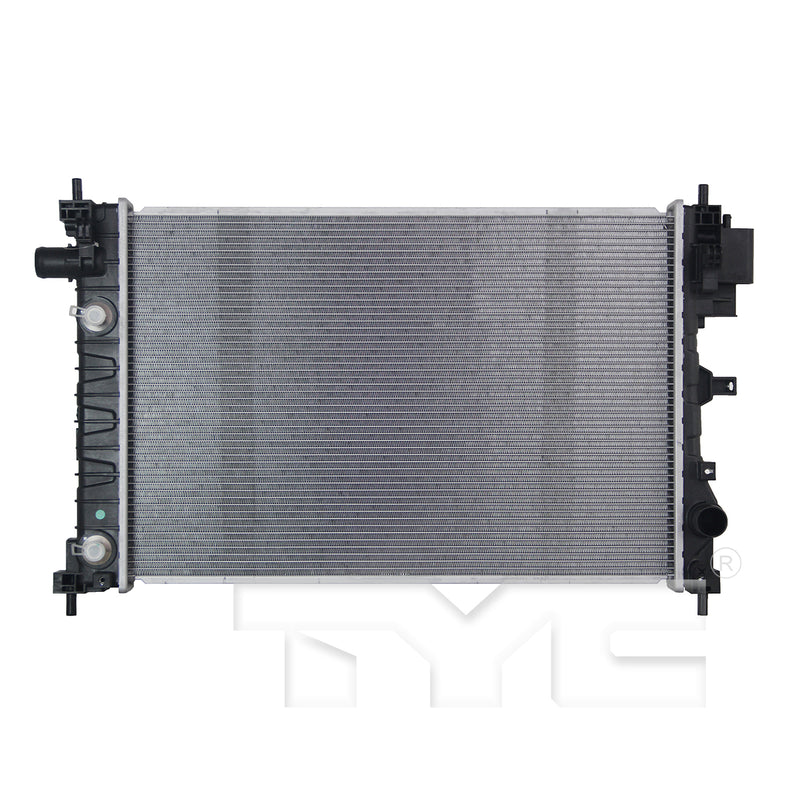

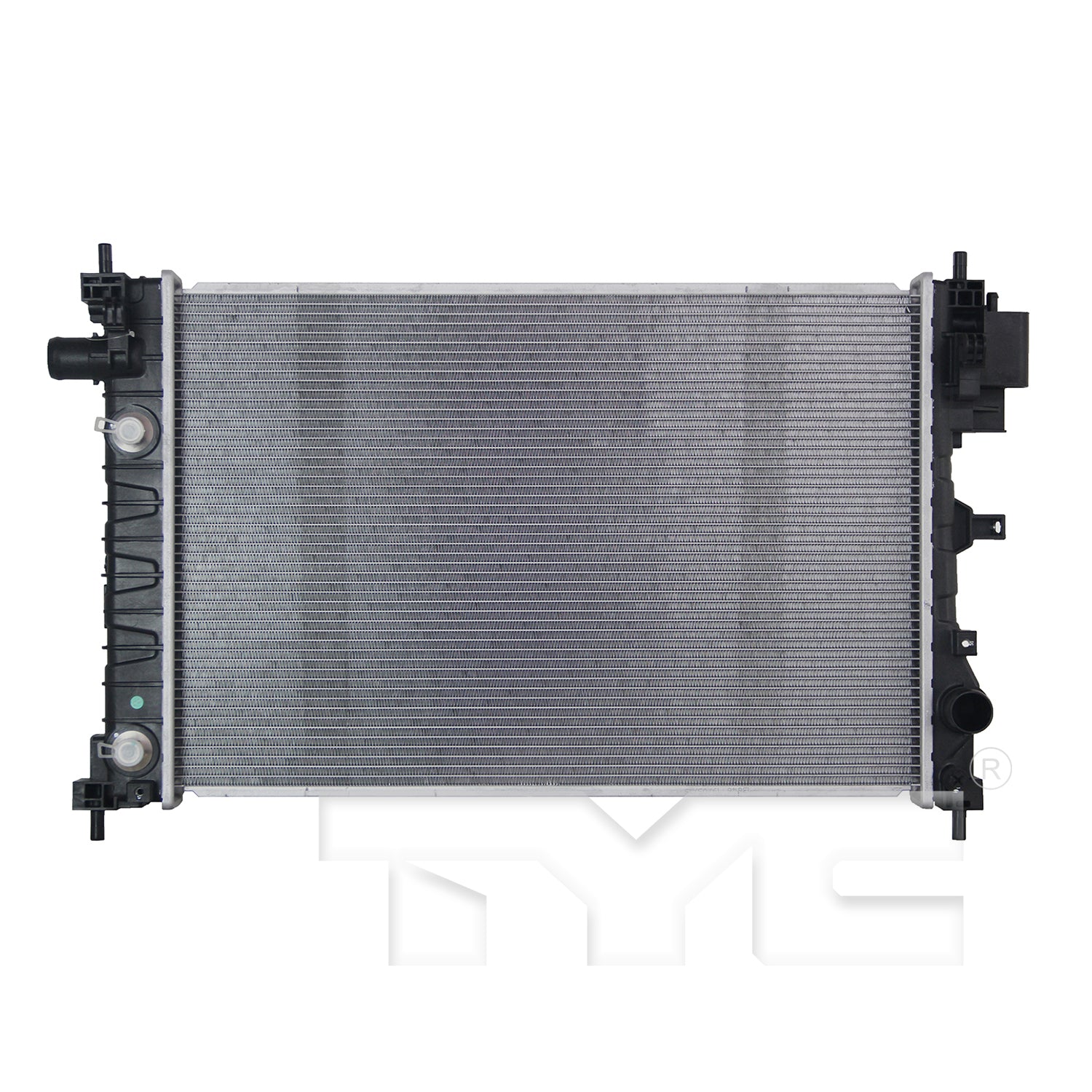

TYC 13646 Radiator Assembly for 2016-2022 Chevrolet Spark

TYC 13646 Radiator Assembly for 2016-2022 Chevrolet Spark
    TYC 13646 Radiator Assembly for 2016-2022 Chevrolet Spark
TYC 13646 Radiator Assembly for 2016-2022 Chevrolet Spark
Brand: TYC
$247.93 CAD
$247.93 CAD
Shipping calculated at checkout.

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.

13646
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Product Description

Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

  • Tube Count (every 4"): 13
  • Flow Configuration: Crossflow
  • Toc Inlet Type: Quick Connect
  • Inlet Diameter (in): 1.34
  • Fin Wave Height (in): 0.25
  • Outlet Diameter (in): 1.34
  • Bottom Header: 2.02x16.94
  • Fin Wave Pitch: 2.6
  • No. Of Rows: 1
  • Transmission Oil Cooler Included: Yes
  • Total Fin Row Count: 51
  • TOC Outlet Diameter (IN): 0.37
  • Toc Outlet Type: Quick Connect
  • Core Length (in): 23.62
  • TOC Inlet Diameter (IN): 0.37
  • Core Thickness (in): 0.63
  • Transmission Oil Cooler Type: Plate Oil Cooler
  • Top Header: 2.02x16.94
  • Inlet Connection Type: Hose Clamp
  • Engine Oil Cooler Included: No
  • Fin Count (every 4"): 78
  • Core Height (in): 15.6
  • Tube Width X Height: 16x1.5
  • Outlet Connection Type: Hose Clamp
  • Core Material: Aluminum
  • Total Tube Count: 50
  • Toc Distance (in): 10.00

Package Details

  • Part Number: 13646
  • 16-20 CV SPRK 1.4L L4 AT/CVT 1R PA RAD
  • Package L x W x H: 20.08" x 5.51" x 32.09"
  • Package Weight: 9.02 lbs.

Interchanges

  • DPI (DataPoint Inc): 13646
  • OSC: 13646
  • CryoMAX: 13646
  • Chevrolet: 42349018
  • APDI: 8013646
  • Spectra Premium: CU13590
  • Partslink: GM3010587
  • Sunbelt Radiators Inc: SBR13646

Vehicle Fitment Table

Year Make Model Position Fitment Precision Note
2016 Chevrolet Spark LS; 1.4L L4 1399cc 85ci; Hatchback; Automatic CVT, Primary / LT; 1.4L L4 1399cc 85ci; Hatchback; Automatic CVT, Primary
2017 Chevrolet Spark ACTIV; 1.4L L4 1399cc 85ci; Hatchback; Automatic CVT, Primary
2017 Chevrolet Spark LS; 1.4L L4 1399cc 85ci; Hatchback; Automatic CVT, Primary / LT; 1.4L L4 1399cc 85ci; Hatchback; Automatic CVT, Primary
2018 Chevrolet Spark ACTIV; 1.4L L4 1399cc 85ci; Hatchback; Automatic CVT, Primary
2018 Chevrolet Spark LS; 1.4L L4 1399cc 85ci; Hatchback; Automatic CVT, Primary / LT; 1.4L L4 1399cc 85ci; Hatchback; Automatic CVT, Primary
2019 Chevrolet Spark ACTIV; 1.4L L4 1399cc 85ci; Hatchback; Automatic CVT, Primary
2019 Chevrolet Spark LS; 1.4L L4 1399cc 85ci; Hatchback; Automatic CVT, Primary / LT; 1.4L L4 1399cc 85ci; Hatchback; Automatic CVT, Primary
2020 Chevrolet Spark ACTIV; 1.4L L4 1399cc 85ci; Hatchback; Automatic CVT, Primary
2020 Chevrolet Spark LS; 1.4L L4 1399cc 85ci; Hatchback; Automatic CVT, Primary / LT; 1.4L L4 1399cc 85ci; Hatchback; Automatic CVT, Primary
2021 Chevrolet Spark ACTIV; 1.4L L4 1399cc 85ci; Hatchback; Automatic CVT, Primary
2021 Chevrolet Spark LS; 1.4L L4 1399cc 85ci; Hatchback; Automatic CVT, Primary / LT; 1.4L L4 1399cc 85ci; Hatchback; Automatic CVT, Primary
2022 Chevrolet Spark ACTIV; 1.4L L4 1399cc 85ci; Hatchback; Automatic CVT, Primary
2022 Chevrolet Spark LS; 1.4L L4 1399cc 85ci; Hatchback; Automatic CVT, Primary / LT; 1.4L L4 1399cc 85ci; Hatchback; Automatic CVT, Primary

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 13646.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
