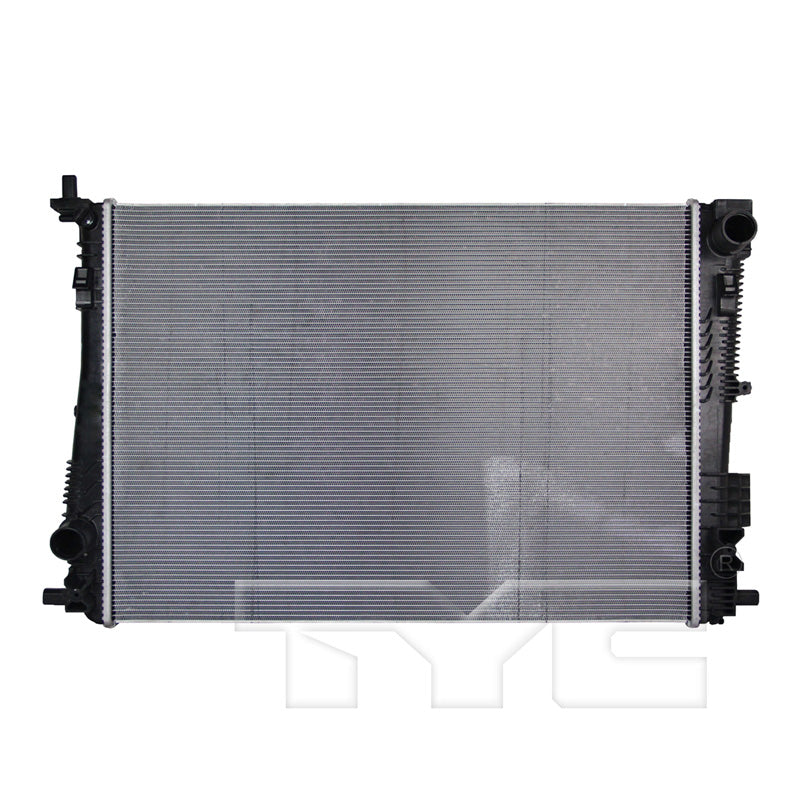

TYC 13641 Radiator Assembly for 2017-2026 Chrysler Pacifica

TYC 13641 Radiator Assembly for 2017-2026 Chrysler Pacifica
    TYC 13641 Radiator Assembly for 2017-2026 Chrysler Pacifica
TYC 13641 Radiator Assembly for 2017-2026 Chrysler Pacifica
Brand: TYC
$290.65 CAD
$290.65 CAD
Shipping calculated at checkout.

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.

13641
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Product Description

Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

  • Inlet Connection Type: Hose Clamp
  • Tube Count (every 4"): 17
  • Flow Configuration: Crossflow
  • Core Material: Aluminum
  • Engine Oil Cooler Included: No
  • Transmission Oil Cooler Included: No
  • Outlet Diameter (in): 1.57
  • Inlet Diameter (in): 1.57
  • Top Header: 1.77x20.35
  • Tube Width X Height: 22x1.5
  • Fin Wave Pitch: 2.2
  • Fin Count (every 4"): 92
  • Core Height (in): 20.49
  • Core Length (in): 27.76
  • Fin Wave Height (in): 0.18
  • No. Of Rows: 1
  • Bottom Header: 1.77x20.35
  • Core Thickness (in): 0.87
  • Outlet Connection Type: Hose Clamp
  • Total Tube Count: 83
  • Total Fin Row Count: 84

Package Details

  • Part Number: 13641
  • 17-26 CR PAFCA 3.6L V6(w/o Tow)1R AT PA RAD
  • Package L x W x H: 6.57" x 23.86" x 35.79"
  • Package Weight: 14.45 lbs.

Interchanges

  • OSC: 13641
  • CSF: 3810
  • Chrysler: 68217318AC
  • Chrysler: 68595954AB
  • APDI: 8013642
  • Partslink: CH3010380
  • Spectra Premium: CU13641

Vehicle Fitment Table

Year Make Model Position Fitment Precision Note
2017 Chrysler Pacifica Limited; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary / Touring L; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary / Touring; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary w/o Towing Pkg
2017 Chrysler Pacifica LX; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary w/o Towing Pkg
2017 Chrysler Pacifica Touring L Plus; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary w/o Towing Pkg
2018 Chrysler Pacifica L; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary w/o Towing Pkg
2018 Chrysler Pacifica Limited; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary / Touring L; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary / Touring; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary w/o Towing Pkg
2018 Chrysler Pacifica LX; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary w/o Towing Pkg
2018 Chrysler Pacifica Touring L Plus; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary w/o Towing Pkg
2018 Chrysler Pacifica Touring Plus; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary w/o Towing Pkg
2019 Chrysler Pacifica L; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary w/o Towing Pkg
2019 Chrysler Pacifica Limited; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary / Touring L; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary / Touring; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary w/o Towing Pkg
2019 Chrysler Pacifica LX; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary w/o Towing Pkg
2019 Chrysler Pacifica Touring L Plus; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary w/o Towing Pkg
2019 Chrysler Pacifica Touring Plus; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary w/o Towing Pkg
2020 Chrysler Pacifica AWD Launch Edition; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary w/o Towing Pkg
2020 Chrysler Pacifica L; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary w/o Towing Pkg
2020 Chrysler Pacifica Limited; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary / Touring L; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary / Touring; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary w/o Towing Pkg
2020 Chrysler Pacifica LX; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary w/o Towing Pkg
2020 Chrysler Pacifica Touring L Plus; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary w/o Towing Pkg
2021 Chrysler Pacifica Limited; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary / Touring L; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary / Touring; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary w/o Towing Pkg
2021 Chrysler Pacifica Pinnacle; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary w/o Towing Pkg
2021 Chrysler Pacifica Touring L Plus; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary w/o Towing Pkg
2022 Chrysler Pacifica Limited; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary / Touring L; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary / Touring; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary w/o Towing Pkg
2022 Chrysler Pacifica Pinnacle; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary w/o Towing Pkg
2023 Chrysler Pacifica Limited; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary / Pinnacle; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary
2023 Chrysler Pacifica Touring L; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary / Touring; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary
2024 Chrysler Pacifica Limited; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary / Pinnacle; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary
2024 Chrysler Pacifica Touring L; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary / Touring; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary
2025 Chrysler Pacifica Limited; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary / Pinnacle; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary
2026 Chrysler Pacifica Limited; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary / Pinnacle; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary
2020 Chrysler Voyager L; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary / LXi; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary
2020 Chrysler Voyager LX; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary
2021 Chrysler Voyager L; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary / LXi; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary
2021 Chrysler Voyager LX; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary
2022 Chrysler Voyager LX; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary
2023 Chrysler Voyager LX; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary
2024 Chrysler Voyager LX; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary
2025 Chrysler Voyager LX; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary
2026 Chrysler Voyager LX; 3.6L V6 3604cc 220ci; Mini Passenger Van; 3.6L V6 3604cc 220ci, Primary

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 13641.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
