Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

• Outlet Diameter (in): 1.52
• Flow Configuration: Crossflow
• Total Tube Count: 63
• Fin Wave Pitch: 2.5
• Engine Oil Cooler Included: No
• No. Of Rows: 1
• Transmission Oil Cooler Included: No
• Outlet Connection Type: Hose Clamp
• Total Fin Row Count: 64
• Fin Wave Height (in): 0.2
• Tube Count (every 4"): 16
• Inlet Diameter (in): 1.52
• Top Header: 1.72x17.39
• Fin Count (every 4"): 81
• Inlet Connection Type: Hose Clamp
• Tube Width X Height: 22x1.5
• Core Length (in): 26.54
• Core Material: Aluminum
• Core Height (in): 16.32
• Core Thickness (in): 0.87
• Bottom Header: 1.72x17.39

Package Details

• Part Number: 13584

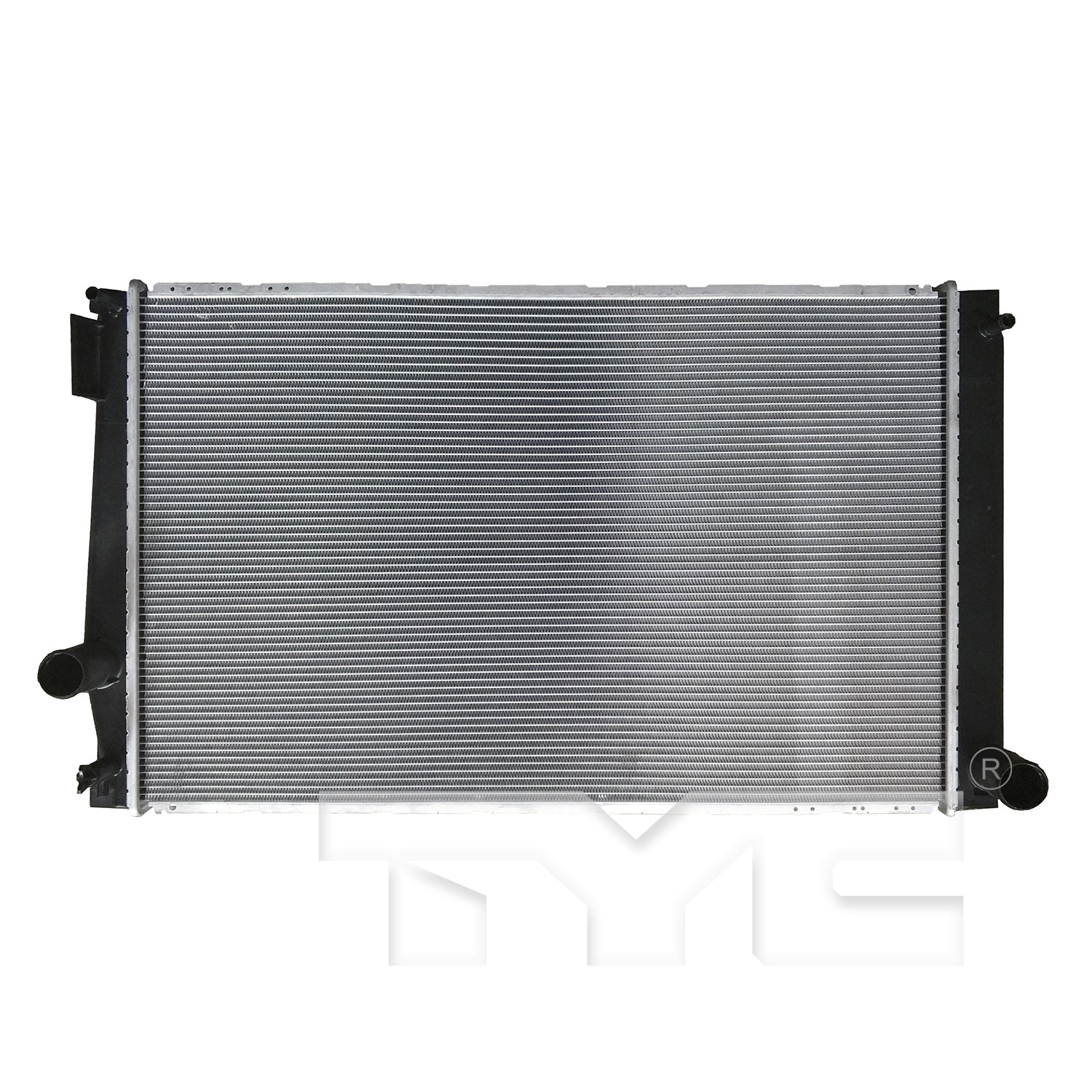

• 16-18 TY RAV-4 (NA BLT) w/o Tow Pkg 2.5L RAD
• Package L x W x H: 18.50" x 5.10" x 32.70"
• Package Weight: 11.20 lbs.

Interchanges

• OSC: 13584
• CryoMAX: 13584
• Toyota: 16400-0V031
• APDI: 8013584
• Spectra Premium: CU13584
• Sunbelt Radiators Inc: SBR13584
• Partslink: TO3010351

Vehicle Fitment Table

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 13584.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
