Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

• Flow Configuration: Crossflow
• Fin Wave Height (in): 0.25
• Tube Count (every 4"): 13
• No. Of Rows: 1
• Engine Oil Cooler Included: No
• Outlet Diameter (in): 1.34
• Inlet Diameter (in): 1.34
• Transmission Oil Cooler Type: Plate Oil Cooler
• Total Tube Count: 55
• Fin Count (every 4"): 92
• Top Header: 2.04x17.61
• Toc Distance (in): 11.81
• Bottom Header: 2.04x17.61
• Core Material: Aluminum
• TOC Inlet Diameter (IN): 0.37
• Transmission Oil Cooler Included: Yes
• Core Length (in): 25.98
• Inlet Connection Type: Hose Clamp
• Outlet Connection Type: Hose Clamp
• Core Height (in): 17.14
• Fin Wave Pitch: 2.2
• Core Thickness (in): 1.02
• Tube Width X Height: 26x1.5
• Toc Outlet Type: Quick Connect
• Toc Inlet Type: Quick Connect
• TOC Outlet Diameter (IN): 0.37
• Total Fin Row Count: 56

Package Details

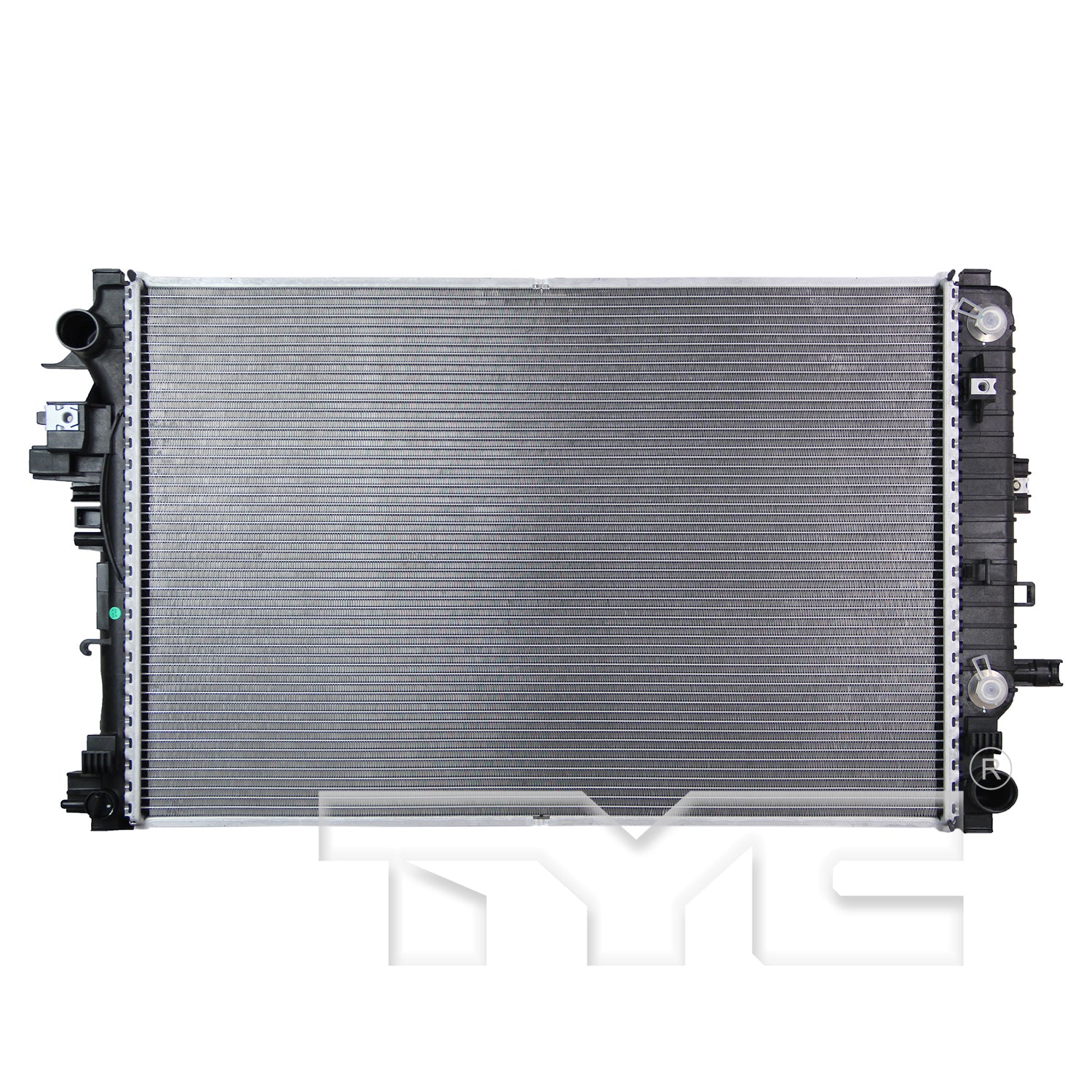

• Part Number: 13574
• 16-18 CV MLIBU 1.5L L4 TUR AT 1R PA RAD
• Package L x W x H: 7.17" x 20.87" x 35.79"
• Package Weight: 15.40 lbs.

Interchanges

• Buick: 84493638
• Chevrolet: 84493638
• Partslink: GM3010583

Vehicle Fitment Table

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 13574.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
