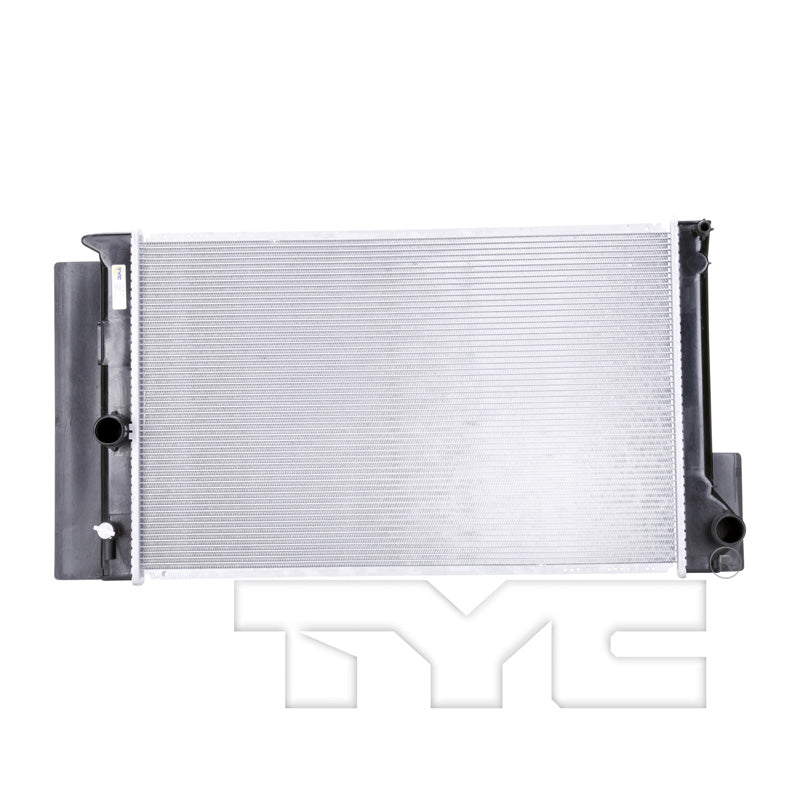

Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

• Flow Configuration: Crossflow
• Total Tube Count: 56
• Core Length (in): 23.62
• Tube Width X Height: 16x1.5
• Engine Oil Cooler Included: No
• Total Fin Row Count: 57
• Fin Wave Pitch: 2.6
• Inlet Diameter (in): 1.36
• No. Of Rows: 1
• Fin Wave Height (in): 0.2
• Bottom Header: 1.69x15.88
• Core Thickness (in): 0.63
• Core Height (in): 14.53
• Outlet Diameter (in): 1.36
• Transmission Oil Cooler Included: No
• Tube Count (every 4"): 16
• Fin Count (every 4"): 78
• Outlet Connection Type: Hose Clamp
• Core Material: Aluminum
• Top Header: 1.69x15.88
• Inlet Connection Type: Hose Clamp

Package Details

• Part Number: 13552
• 16-18 SC IM 1.8L L4 A/MT 1R PA RAD
• Package L x W x H: 17.32" x 4.92" x 31.89"
• Package Weight: 7.92 lbs.

Interchanges

• OSC: 13552
• Toyota: 16400-22160
• Scion: 16400-22160
• APDI: 8013552
• Northern Factory Sales: CR13552
• Spectra Premium: CU13552
• Sunbelt Radiators Inc: SBR13552
• Partslink: SC3010110
• Tong Yang: TY37186A

Vehicle Fitment Table

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 13552.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
