Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

• Outlet Diameter (in): 1.5
• Inlet Connection Type: Hose Clamp
• Transmission Oil Cooler Type: Plate Oil Cooler
• Fin Count (every 4"): 78
• Core Length (in): 26.54
• Outlet Connection Type: Hose Clamp
• Total Fin Row Count: 68
• Core Thickness (in): 1.02
• Total Tube Count: 67
• Core Material: Aluminum
• Fin Wave Pitch: 2.6
• No. Of Rows: 1
• Inlet Diameter (in): 1.5
• Toc Outlet Type: Tube fitting
• Top Header: 2.02x18.52
• TOC Inlet Diameter (IN): 0.39
• Engine Oil Cooler Included: No
• Bottom Header: 2.02x18.52
• Tube Width X Height: 26x1.5
• Tube Count (every 4"): 16
• Fin Wave Height (in): 0.2
• TOC Outlet Diameter (IN): 0.39
• Flow Configuration: Crossflow
• Transmission Oil Cooler Included: Yes
• Toc Distance (in): 9.84
• Toc Inlet Type: Tube fitting
• Core Height (in): 17.34

Package Details

• Part Number: 13550

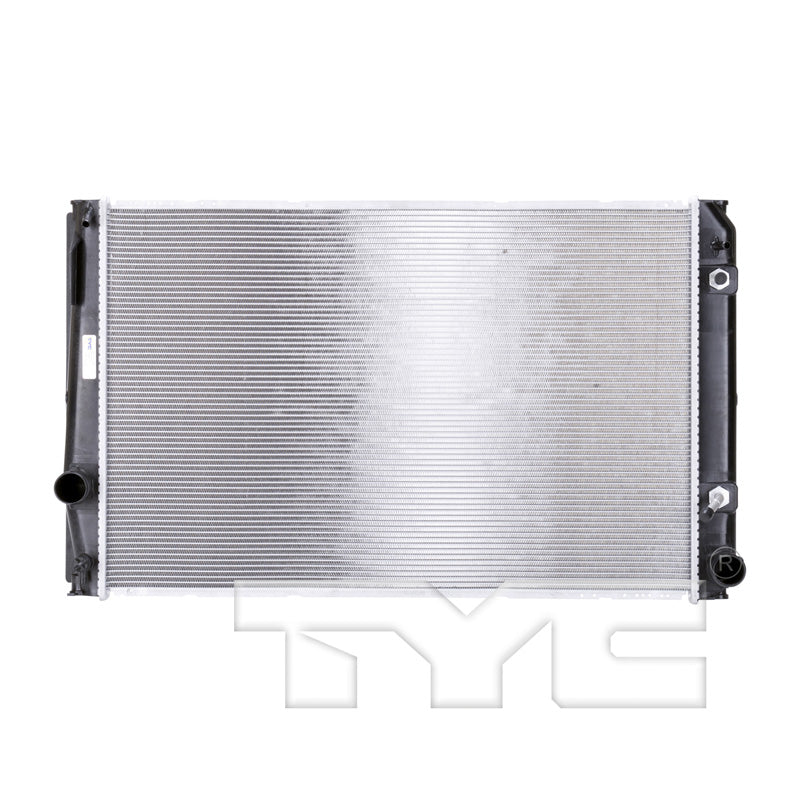

• 09-12 TY RAV-4 3.5L V6 W/ TOW. USA A/MT 1R PA RAD
• Package L x W x H: 19.88" x 5.91" x 32.28"
• Package Weight: 13.55 lbs.

Interchanges

• Toyota: 16400-0P240
• Spectra Premium: CU2893
• Partslink: TO3010348

Vehicle Fitment Table

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 13550.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
