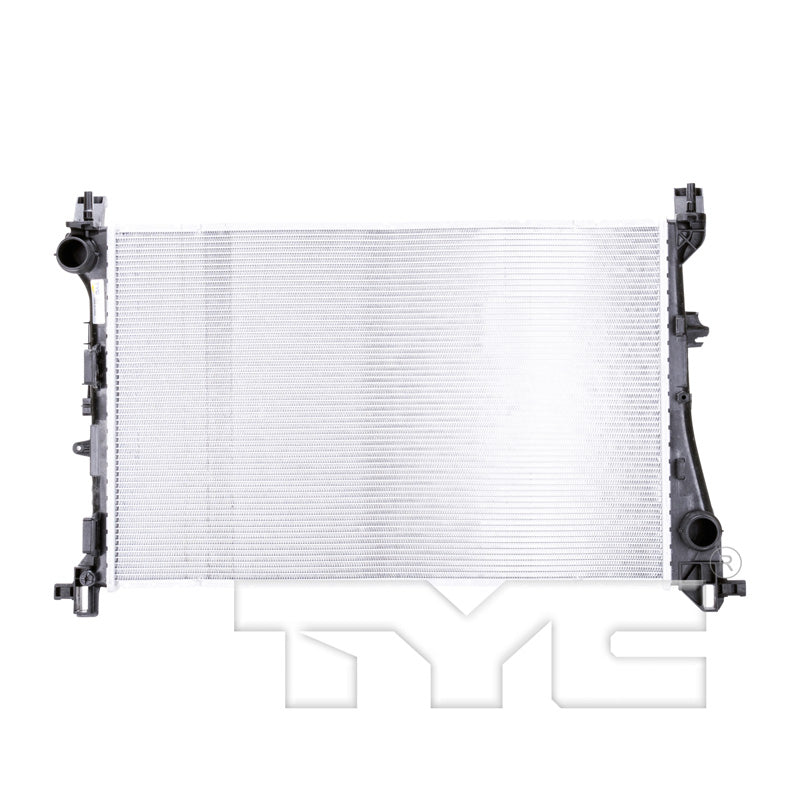

TYC 13513 Radiator Assembly for 2014-2020 Fiat 500L

TYC 13513 Radiator Assembly for 2014-2020 Fiat 500L
    TYC 13513 Radiator Assembly for 2014-2020 Fiat 500L
TYC 13513 Radiator Assembly for 2014-2020 Fiat 500L
Brand: TYC
$354.62 CAD
$354.62 CAD
Shipping calculated at checkout.

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.

13513
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Product Description

Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

  • Inlet Connection Type: Quick Connect (Spring Lock)
  • Outlet Connection Type: Quick Connect (Spring Lock)
  • Tube Width X Height: 26x1.5
  • Top Header: 1.79x16.67
  • Core Thickness (in): 1.02
  • Transmission Oil Cooler Included: No
  • Fin Wave Height (in): 0.2
  • Total Tube Count: 60
  • Tube Count (every 4"): 16
  • Bottom Header: 1.79x16.67
  • Flow Configuration: Crossflow
  • Fin Count (every 4"): 78
  • Outlet Diameter (in): 1.51
  • Fin Wave Pitch: 2.6
  • No. Of Rows: 1
  • Core Material: Aluminum
  • Core Height (in): 15.55
  • Core Length (in): 24.41
  • Inlet Diameter (in): 1.51
  • Engine Oil Cooler Included: No
  • Total Fin Row Count: 61

Package Details

  • Part Number: 13513
  • 14-16 FT 500L 1.4L I4 W/ TUR AT 1R PA RAD
  • Package L x W x H: 20.87" x 6.89" x 32.28"
  • Package Weight: 11.95 lbs.

Interchanges

  • Fiat: 68202037AA
  • APDI: 8013513
  • Spectra Premium: CU13513
  • Partslink: FI3010101

Vehicle Fitment Table

Year Make Model Position Fitment Precision Note
2014 Fiat 500L Easy; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary
2014 Fiat 500L Lounge; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary / Pop; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary / Trekking; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary
2015 Fiat 500L Easy; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary
2015 Fiat 500L Lounge; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary / Pop; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary / Trekking; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary
2015 Fiat 500L Urbana; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary
2016 Fiat 500L Easy; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary
2016 Fiat 500L Lounge; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary / Pop; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary / Trekking; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary
2016 Fiat 500L Urbana; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary
2017 Fiat 500L Easy; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary
2017 Fiat 500L Lounge; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary / Pop; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary / Trekking; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary
2017 Fiat 500L Urbana; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary
2018 Fiat 500L Lounge; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary / Pop; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary / Trekking; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary
2018 Fiat 500L Urbana; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary
2019 Fiat 500L Lounge; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary / Pop; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary / Trekking; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary
2019 Fiat 500L Urbana; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary
2020 Fiat 500L Lounge; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary / Pop; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary / Trekking; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary
2020 Fiat 500L Urbana; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 13513.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
