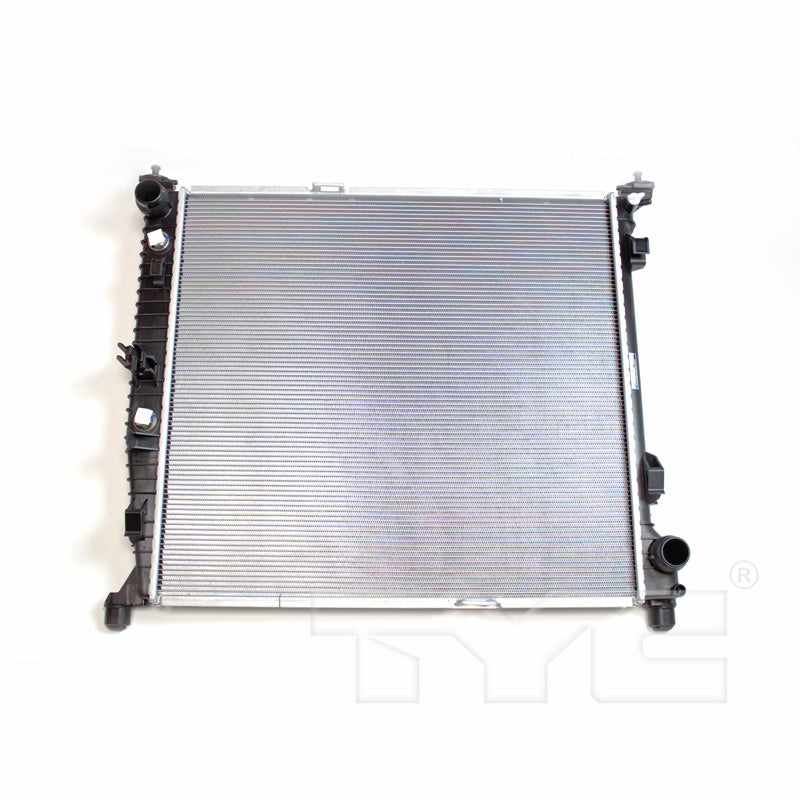

TYC 13505 Radiator Assembly for 2012-2019 Mercedes-Benz GL350

TYC 13505 Radiator Assembly for 2012-2019 Mercedes-Benz GL350
    TYC 13505 Radiator Assembly for 2012-2019 Mercedes-Benz GL350
TYC 13505 Radiator Assembly for 2012-2019 Mercedes-Benz GL350
Brand: TYC
$393.96 CAD
$393.96 CAD
Shipping calculated at checkout.

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.

13505
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Product Description

Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

  • Transmission Oil Cooler Included: Yes
  • Flow Configuration: Crossflow
  • Bottom Header: 2.1x22.38
  • Fin Wave Height (in): 0.2
  • Total Tube Count: 84
  • Inlet Connection Type: Quick Connect (Spring Lock)
  • TOC Outlet Diameter (IN): 0.37
  • Toc Outlet Type: Quick Connect
  • Core Height (in): 21.69
  • Tube Width X Height: 26x1.5
  • Toc Distance (in): 10.00
  • Outlet Diameter (in): 1.52
  • Outlet Connection Type: Quick Connect (Spring Lock)
  • Top Header: 2.1x22.38
  • Core Length (in): 23.43
  • Fin Wave Pitch: 2.6
  • TOC Inlet Diameter (IN): 0.37
  • Toc Inlet Type: Quick Connect
  • Fin Count (every 4"): 78
  • Tube Count (every 4"): 16
  • Total Fin Row Count: 85
  • Core Material: Aluminum
  • Transmission Oil Cooler Type: Plate Oil Cooler
  • Engine Oil Cooler Included: No
  • Core Thickness (in): 1.02
  • Inlet Diameter (in): 1.52
  • No. Of Rows: 1

Package Details

  • Part Number: 13505
  • 12-15 MD M-CLAS 2.1/3.0/3.5L L4/V6 AT 1R PA (W/ TOC) RAD
  • Package L x W x H: 26.57" x 4.72" x 29.92"
  • Package Weight: 16.10 lbs.

Interchanges

  • Mercedes-Benz: 099 500 13 03
  • DENSO: 221-9370
  • APDI: 8013505
  • Spectra Premium: CU13505
  • Partslink: MB3010173

Vehicle Fitment Table

Year Make Model Position Fitment Precision Note
2013 Mercedes-Benz GL350 Bluetec 4Matic; 3.0L V6 2987cc; Sport Utility; 3.0L V6 2987cc, Primary
2014 Mercedes-Benz GL350 Bluetec 4Matic; 3.0L V6 2987cc; Sport Utility; 3.0L V6 2987cc, Primary
2015 Mercedes-Benz GL350 Bluetec 4Matic; 3.0L V6 2987cc; Sport Utility; 3.0L V6 2987cc, Primary
2016 Mercedes-Benz GL350 Bluetec 4Matic; 3.0L V6 2987cc; Sport Utility; 3.0L V6 2987cc, Primary
2015 Mercedes-Benz GL450 4Matic; 3.0L V6 2996cc; Sport Utility; 3.0L V6 2996cc, Primary
2016 Mercedes-Benz GL450 4Matic; 3.0L V6 2996cc; Sport Utility; 3.0L V6 2996cc, Primary
2016 Mercedes-Benz GLE300d 4Matic; 2.1L L4 2143cc 131ci; Sport Utility; 2.1L L4 2143cc 131ci, Primary
2017 Mercedes-Benz GLE300d 4Matic; 2.1L L4 2143cc 131ci; Sport Utility; 2.1L L4 2143cc 131ci, Primary
2016 Mercedes-Benz GLE350 4Matic; 3.5L V6 3498cc; Sport Utility; 3.5L V6 3498cc, Primary / Base; 3.5L V6 3498cc; Sport Utility; 3.5L V6 3498cc, Primary
2017 Mercedes-Benz GLE350 4Matic; 3.5L V6 3498cc; Sport Utility; 3.5L V6 3498cc, Primary / Base; 3.5L V6 3498cc; Sport Utility; 3.5L V6 3498cc, Primary
2018 Mercedes-Benz GLE350 4Matic; 3.5L V6 3498cc; Sport Utility; 3.5L V6 3498cc, Primary / Base; 3.5L V6 3498cc; Sport Utility; 3.5L V6 3498cc, Primary
2016 Mercedes-Benz GLE350d 4Matic; 3.0L V6 2987cc; Sport Utility; 3.0L V6 2987cc, Primary
2016 Mercedes-Benz GLE400 4Matic; 3.0L V6 2996cc; Sport Utility; 3.0L V6 2996cc, Primary
2017 Mercedes-Benz GLE400 4Matic; 3.0L V6 2996cc; Sport Utility; 3.0L V6 2996cc, Primary
2018 Mercedes-Benz GLE400 4Matic; 3.0L V6 2996cc; Sport Utility; 3.0L V6 2996cc, Primary
2019 Mercedes-Benz GLE400 4Matic; 3.0L V6 2996cc; Sport Utility; 3.0L V6 2996cc, Primary
2017 Mercedes-Benz GLE43 AMG 4Matic; 3.0L V6 2996cc; Sport Utility; 3.0L V6 2996cc, Primary
2018 Mercedes-Benz GLE43 AMG 4Matic; 3.0L V6 2996cc; Sport Utility; 3.0L V6 2996cc, Primary
2019 Mercedes-Benz GLE43 AMG 4Matic; 3.0L V6 2996cc; Sport Utility; 3.0L V6 2996cc, Primary
2016 Mercedes-Benz GLE550e 4Matic; 3.0L V6 2996cc; Sport Utility; 3.0L V6 2996cc, Primary
2017 Mercedes-Benz GLE550e 4Matic; 3.0L V6 2996cc; Sport Utility; 3.0L V6 2996cc, Primary
2018 Mercedes-Benz GLE550e 4Matic; 3.0L V6 2996cc; Sport Utility; 3.0L V6 2996cc, Primary
2017 Mercedes-Benz GLS350d 4Matic; 3.0L V6 2987cc; Sport Utility; 3.0L V6 2987cc, Primary
2017 Mercedes-Benz GLS450 4Matic; 3.0L V6 2996cc; Sport Utility; 3.0L V6 2996cc, Primary
2018 Mercedes-Benz GLS450 4Matic; 3.0L V6 2996cc; Sport Utility; 3.0L V6 2996cc, Primary
2019 Mercedes-Benz GLS450 4Matic; 3.0L V6 2996cc; Sport Utility; 3.0L V6 2996cc, Primary
2015 Mercedes-Benz ML250 Bluetec 4Matic; 2.1L L4 2143cc 131ci; Sport Utility; 2.1L L4 2143cc 131ci, Primary
2012 Mercedes-Benz ML350 4Matic; 3.5L V6 3498cc; Sport Utility; 3.5L V6 3498cc, Primary / Base; 3.5L V6 3498cc; Sport Utility; 3.5L V6 3498cc, Primary / Bluetec 4Matic; 3.0L V6 2987cc; Sport Utility; 3.0L V6 2987cc, Primary
2013 Mercedes-Benz ML350 4Matic; 3.5L V6 3498cc; Sport Utility; 3.5L V6 3498cc, Primary / Base; 3.5L V6 3498cc; Sport Utility; 3.5L V6 3498cc, Primary / Bluetec 4Matic; 3.0L V6 2987cc; Sport Utility; 3.0L V6 2987cc, Primary
2014 Mercedes-Benz ML350 4Matic; 3.5L V6 3498cc; Sport Utility; 3.5L V6 3498cc, Primary / Base; 3.5L V6 3498cc; Sport Utility; 3.5L V6 3498cc, Primary / Bluetec 4Matic; 3.0L V6 2987cc; Sport Utility; 3.0L V6 2987cc, Primary
2015 Mercedes-Benz ML350 4Matic; 3.5L V6 3498cc; Sport Utility; 3.5L V6 3498cc, Primary / Base; 3.5L V6 3498cc; Sport Utility; 3.5L V6 3498cc, Primary / Bluetec 4Matic; 3.0L V6 2987cc; Sport Utility; 3.0L V6 2987cc, Primary
2015 Mercedes-Benz ML400 4Matic; 3.0L V6 2996cc; Sport Utility; 3.0L V6 2996cc, Primary

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 13505.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
