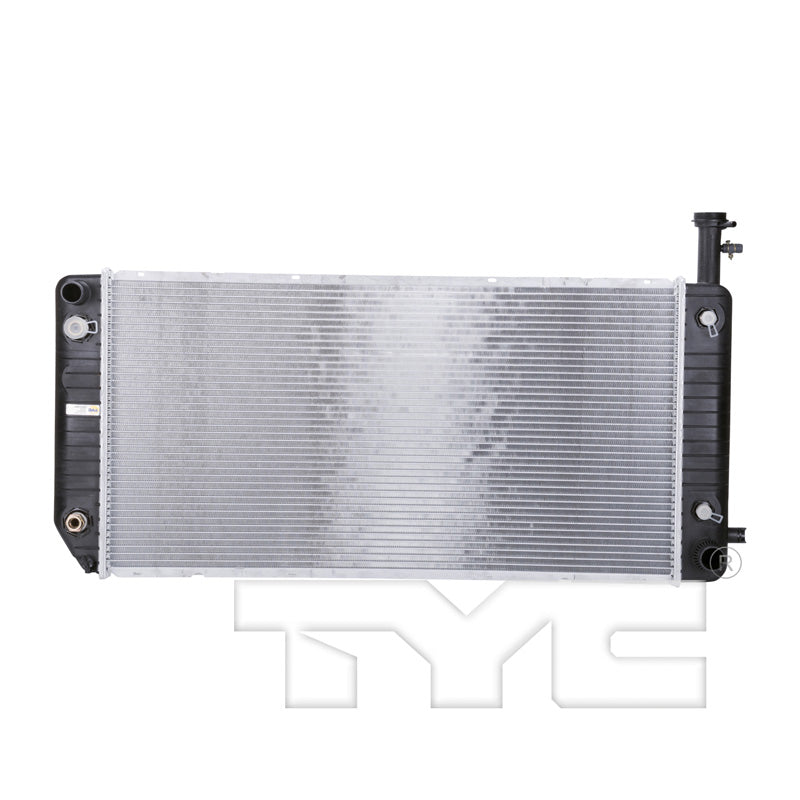

TYC 13476 Radiator Assembly for 2009-2014 Chevrolet Express 2500

TYC 13476 Radiator Assembly for 2009-2014 Chevrolet Express 2500
    TYC 13476 Radiator Assembly for 2009-2014 Chevrolet Express 2500
TYC 13476 Radiator Assembly for 2009-2014 Chevrolet Express 2500
Brand: TYC
$494.83 CAD
$494.83 CAD
Shipping calculated at checkout.

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.

13476
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Product Description

Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

  • Core Height (in): 17.24
  • Inlet Connection Type: Hose Clamp
  • Total Tube Count: 39
  • Inlet Diameter (in): 1.3
  • TOC Outlet Diameter (IN): 0.5
  • Core Length (in): 34.02
  • Toc Outlet Type: Quick Connect
  • Tube Width X Height: 26x2
  • Fin Wave Height (in): 0.35
  • Transmission Oil Cooler Included: Yes
  • Fin Wave Pitch: 2.8
  • No. Of Rows: 1
  • EOC Inlet Type: Quick Connect
  • EOC Inlet Diameter (mm): 9.5
  • EOC Distance (IN): 11.50
  • Top Header: 3.16x18.5
  • Engine Oil Cooler Type: Plate Oil Cooler
  • Outlet Diameter (in): 1.54
  • Core Material: Aluminum
  • TOC Inlet Diameter (IN): 0.5
  • EOC Outlet Diameter (IN): 0.37
  • EOC Inlet Diameter (IN): 0.37
  • Flow Configuration: Crossflow
  • EOC Outlet Type: Quick Connect
  • Engine Oil Cooler Included: Yes
  • Total Fin Row Count: 40
  • Core Thickness (in): 1.02
  • Outlet Connection Type: Quick Connect (Spring Lock)
  • Toc Distance (in): 11.50
  • Tube Count (every 4"): 10
  • Toc Inlet Type: Quick Connect
  • Fin Count (every 4"): 73
  • Bottom Header: 3.16x18.5
  • Transmission Oil Cooler Type: Plate Oil Cooler

Package Details

  • Part Number: 13476
  • 09-14 CV XPRES/GC SVANA 4.8L 1R PA RAD
  • Package L x W x H: 26.38" x 7.48" x 45.67"
  • Package Weight: 21.65 lbs.

Interchanges

  • Chevrolet: 23378649
  • GMC: 23378649
  • APDI: 8013476
  • Spectra Premium: CU13476
  • Partslink: GM3010575

Vehicle Fitment Table

Year Make Model Position Fitment Precision Note
2009 Chevrolet Express 2500 Base; 4.8L V8 294ci; Extended Cargo Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Standard Cargo Van; 4.8L V8 294ci, Primary
2010 Chevrolet Express 2500 Base; 4.8L V8 294ci; Extended Cargo Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Standard Cargo Van; 4.8L V8 294ci, Primary
2011 Chevrolet Express 2500 Base; 4.8L V8 294ci; Extended Cargo Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Standard Cargo Van; 4.8L V8 294ci, Primary
2011 Chevrolet Express 2500 LS; 4.8L V8 294ci; Standard Passenger Van; 4.8L V8 294ci, Primary / LT; 4.8L V8 294ci; Standard Passenger Van; 4.8L V8 294ci, Primary
2012 Chevrolet Express 2500 Base; 4.8L V8 294ci; Extended Cargo Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Standard Cargo Van; 4.8L V8 294ci, Primary
2012 Chevrolet Express 2500 LS; 4.8L V8 294ci; Standard Passenger Van; 4.8L V8 294ci, Primary / LT; 4.8L V8 294ci; Standard Passenger Van; 4.8L V8 294ci, Primary
2013 Chevrolet Express 2500 Base; 4.8L V8 294ci; Extended Cargo Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Standard Cargo Van; 4.8L V8 294ci, Primary
2013 Chevrolet Express 2500 LS; 4.8L V8 294ci; Standard Passenger Van; 4.8L V8 294ci, Primary / LT; 4.8L V8 294ci; Standard Passenger Van; 4.8L V8 294ci, Primary
2014 Chevrolet Express 2500 Base; 4.8L V8 294ci; Extended Cargo Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Standard Cargo Van; 4.8L V8 294ci, Primary
2014 Chevrolet Express 2500 LS; 4.8L V8 294ci; Standard Passenger Van; 4.8L V8 294ci, Primary / LT; 4.8L V8 294ci; Standard Passenger Van; 4.8L V8 294ci, Primary
2009 Chevrolet Express 3500 Base; 4.8L V8 294ci; Cutaway Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Extended Cargo Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Standard Cargo Van; 4.8L V8 294ci, Primary
2010 Chevrolet Express 3500 Base; 4.8L V8 294ci; Cutaway Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Extended Cargo Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Standard Cargo Van; 4.8L V8 294ci, Primary
2011 Chevrolet Express 3500 Base; 4.8L V8 294ci; Cutaway Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Extended Cargo Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Standard Cargo Van; 4.8L V8 294ci, Primary
2012 Chevrolet Express 3500 Base; 4.8L V8 294ci; Cutaway Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Extended Cargo Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Standard Cargo Van; 4.8L V8 294ci, Primary
2012 Chevrolet Express 3500 LS; 4.8L V8 294ci; Extended Passenger Van; 4.8L V8 294ci, Primary / LS; 4.8L V8 294ci; Standard Passenger Van; 4.8L V8 294ci, Primary / LT; 4.8L V8 294ci; Standard Passenger Van; 4.8L V8 294ci, Primary
2012 Chevrolet Express 3500 LT; 4.8L V8 294ci; Extended Passenger Van; 4.8L V8 294ci, Primary
2013 Chevrolet Express 3500 Base; 4.8L V8 294ci; Cutaway Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Extended Cargo Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Standard Cargo Van; 4.8L V8 294ci, Primary
2013 Chevrolet Express 3500 LS; 4.8L V8 294ci; Extended Passenger Van; 4.8L V8 294ci, Primary / LS; 4.8L V8 294ci; Standard Passenger Van; 4.8L V8 294ci, Primary / LT; 4.8L V8 294ci; Standard Passenger Van; 4.8L V8 294ci, Primary
2013 Chevrolet Express 3500 LT; 4.8L V8 294ci; Extended Passenger Van; 4.8L V8 294ci, Primary
2014 Chevrolet Express 3500 Base; 4.8L V8 294ci; Cutaway Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Extended Cargo Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Standard Cargo Van; 4.8L V8 294ci, Primary
2014 Chevrolet Express 3500 LS; 4.8L V8 294ci; Extended Passenger Van; 4.8L V8 294ci, Primary / LS; 4.8L V8 294ci; Standard Passenger Van; 4.8L V8 294ci, Primary / LT; 4.8L V8 294ci; Standard Passenger Van; 4.8L V8 294ci, Primary
2009 GMC Savana 2500 Base; 4.8L V8 294ci; Extended Cargo Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Standard Cargo Van; 4.8L V8 294ci, Primary
2010 GMC Savana 2500 Base; 4.8L V8 294ci; Extended Cargo Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Standard Cargo Van; 4.8L V8 294ci, Primary
2011 GMC Savana 2500 Base; 4.8L V8 294ci; Extended Cargo Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Standard Cargo Van; 4.8L V8 294ci, Primary
2011 GMC Savana 2500 LS; 4.8L V8 294ci; Standard Passenger Van; 4.8L V8 294ci, Primary / LT; 4.8L V8 294ci; Standard Passenger Van; 4.8L V8 294ci, Primary
2012 GMC Savana 2500 Base; 4.8L V8 294ci; Extended Cargo Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Standard Cargo Van; 4.8L V8 294ci, Primary
2012 GMC Savana 2500 LS; 4.8L V8 294ci; Standard Passenger Van; 4.8L V8 294ci, Primary / LT; 4.8L V8 294ci; Standard Passenger Van; 4.8L V8 294ci, Primary
2013 GMC Savana 2500 Base; 4.8L V8 294ci; Extended Cargo Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Standard Cargo Van; 4.8L V8 294ci, Primary
2013 GMC Savana 2500 LS; 4.8L V8 294ci; Standard Passenger Van; 4.8L V8 294ci, Primary / LT; 4.8L V8 294ci; Standard Passenger Van; 4.8L V8 294ci, Primary
2014 GMC Savana 2500 Base; 4.8L V8 294ci; Extended Cargo Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Standard Cargo Van; 4.8L V8 294ci, Primary
2014 GMC Savana 2500 LS; 4.8L V8 294ci; Standard Passenger Van; 4.8L V8 294ci, Primary / LT; 4.8L V8 294ci; Standard Passenger Van; 4.8L V8 294ci, Primary
2009 GMC Savana 3500 Base; 4.8L V8 294ci; Cutaway Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Extended Cargo Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Standard Cargo Van; 4.8L V8 294ci, Primary
2010 GMC Savana 3500 Base; 4.8L V8 294ci; Cutaway Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Extended Cargo Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Standard Cargo Van; 4.8L V8 294ci, Primary
2011 GMC Savana 3500 Base; 4.8L V8 294ci; Cutaway Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Extended Cargo Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Standard Cargo Van; 4.8L V8 294ci, Primary
2012 GMC Savana 3500 Base; 4.8L V8 294ci; Cutaway Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Extended Cargo Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Standard Cargo Van; 4.8L V8 294ci, Primary
2012 GMC Savana 3500 LS; 4.8L V8 294ci; Extended Passenger Van; 4.8L V8 294ci, Primary / LS; 4.8L V8 294ci; Standard Passenger Van; 4.8L V8 294ci, Primary / LT; 4.8L V8 294ci; Extended Passenger Van; 4.8L V8 294ci, Primary / LT; 4.8L V8 294ci; Standard Passenger Van; 4.8L V8 294ci, Primary
2013 GMC Savana 3500 Base; 4.8L V8 294ci; Cutaway Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Extended Cargo Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Standard Cargo Van; 4.8L V8 294ci, Primary
2013 GMC Savana 3500 LS; 4.8L V8 294ci; Extended Passenger Van; 4.8L V8 294ci, Primary / LS; 4.8L V8 294ci; Standard Passenger Van; 4.8L V8 294ci, Primary / LT; 4.8L V8 294ci; Extended Passenger Van; 4.8L V8 294ci, Primary / LT; 4.8L V8 294ci; Standard Passenger Van; 4.8L V8 294ci, Primary
2014 GMC Savana 3500 Base; 4.8L V8 294ci; Cutaway Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Extended Cargo Van; 4.8L V8 294ci, Primary / Base; 4.8L V8 294ci; Standard Cargo Van; 4.8L V8 294ci, Primary
2014 GMC Savana 3500 LS; 4.8L V8 294ci; Extended Passenger Van; 4.8L V8 294ci, Primary / LS; 4.8L V8 294ci; Standard Passenger Van; 4.8L V8 294ci, Primary / LT; 4.8L V8 294ci; Extended Passenger Van; 4.8L V8 294ci, Primary / LT; 4.8L V8 294ci; Standard Passenger Van; 4.8L V8 294ci, Primary

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 13476.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
