Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

• Toc Outlet Type: Tube fitting
• Tube Count (every 4"): 16
• Core Height (in): 29.88
• Fin Wave Pitch: 2.9
• Outlet Diameter (in): 1.36
• Bottom Header: 1.88x30.51
• Core Material: Aluminum
• Total Tube Count: 116
• Flow Configuration: Downflow
• Fin Count (every 4"): 70
• Toc Distance (in): 12.80
• Inlet Connection Type: Hose Clamp
• Fin Wave Height (in): 0.2
• Core Length (in): 20.67
• Transmission Oil Cooler Type: Plate Oil Cooler
• TOC Outlet Diameter (IN): 0.39
• Inlet Diameter (in): 1.36
• Outlet Connection Type: Hose Clamp
• Top Header: 1.88x30.51
• Core Thickness (in): 0.63
• Tube Width X Height: 16x1.5
• Total Fin Row Count: 117
• No. Of Rows: 1
• Transmission Oil Cooler Included: Yes
• Toc Inlet Type: Tube fitting
• Engine Oil Cooler Included: No
• TOC Inlet Diameter (IN): 0.39

Package Details

• Part Number: 13449

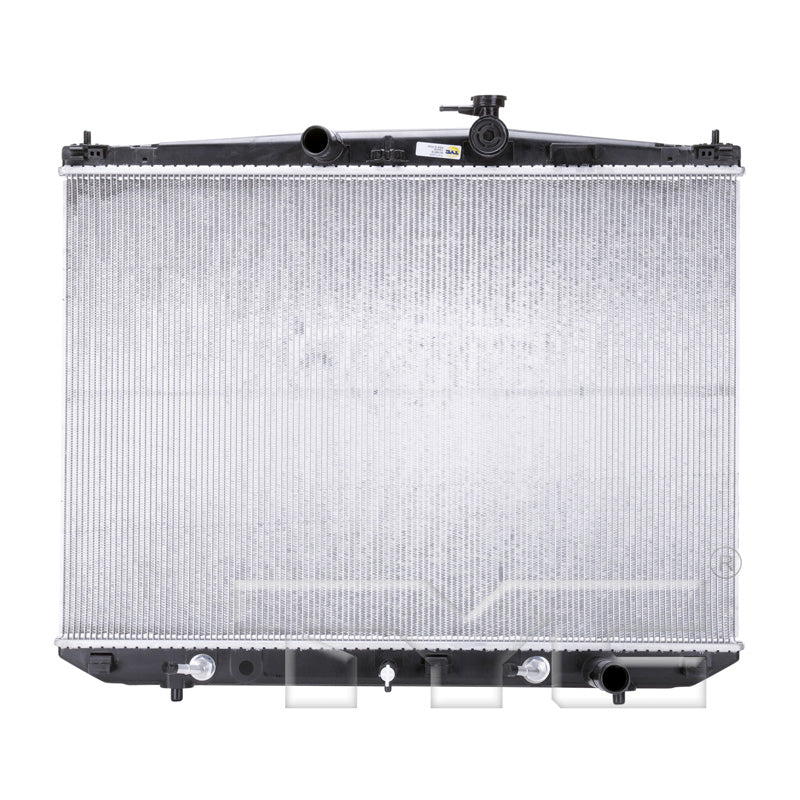

• 14-15 TY HLANDR 3.5L V6 AT 1R PA RAD
• Package L x W x H: 29.83" x 7.16" x 34.60"
• Package Weight: 13.20 lbs.

Interchanges

• Toyota: 16400-0P420
• DENSO: 221-9351
• APDI: 8013449
• Spectra Premium: CU13449
• Partslink: TO3010344

Vehicle Fitment Table

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 13449.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
