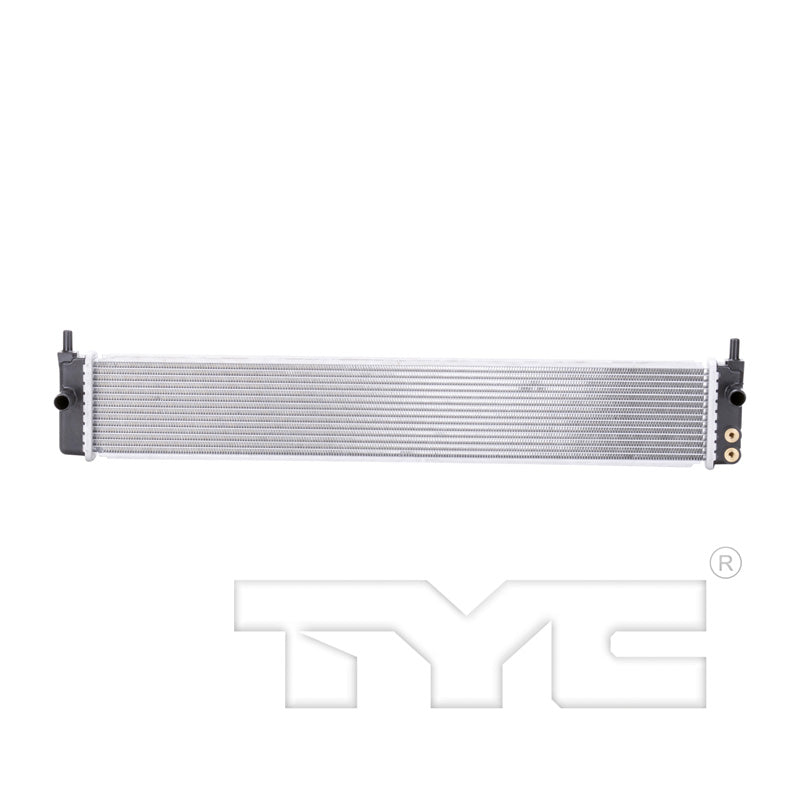

TYC 13436 Intercooler for 2012-2017 Toyota Prius V
- Regular price
- $161.61 CAD
- Sale price
- $161.61 CAD
- Regular price
-
SKU:13436
Product Description
Performance Overview
OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Rigorous high pressure cycling tests to ensure product durability in high pressure turbocharged vehicles. Individually leak-tested to ensure product has no leaks.
Key Features
Specifications
- Flow Configuration: Crossflow
- Top Header: 1.71x4.27
- Core Length (in): 23.62
- Fin Wave Pitch: 2.6
- Tube Width X Height: 22x1.5
- Fin Wave Height (in): 0.2
- Engine Oil Cooler Included: No
- Bottom Header: 1.71x4.27
- Inlet Diameter (in): 0.67
- Core Thickness (in): 0.87
- No. Of Rows: 1
- Total Tube Count: 13
- Fin Count (every 4"): 78
- Tube Count (every 4"): 16
- Transmission Oil Cooler Included: No
- Total Fin Row Count: 14
- Outlet Connection Type: Hose Clamp
- Core Material: Aluminum
- Core Height (in): 3.52
- Outlet Diameter (in): 0.67
- Inlet Connection Type: Hose Clamp
Package Details
- Part Number: 13436
- 12-17 TY PRUS V 1.8L L4 CVT INV COLR
- Package L x W x H: 27.56" x 4.33" x 6.50"
- Package Weight: 3.39 lbs.
Interchanges
- DENSO: 221-9349
- APDI: 8013436
- Spectra Premium: CU13436
- Toyota: G9010-47050
- Partslink: TO3011105
Vehicle Fitment Table
| Year | Make | Model | Position | Fitment Precision | Note |
| 2012 | Toyota | Prius V | Five; 1.8L L4 1798cc 110ci; Wagon; FULL HYBRID EV-GAS (FHEV) / Three; 1.8L L4 1798cc 110ci; Wagon; FULL HYBRID EV-GAS (FHEV) / Two; 1.8L L4 1798cc 110ci; Wagon; FULL HYBRID EV-GAS (FHEV) | ||
| 2013 | Toyota | Prius V | Five; 1.8L L4 1798cc 110ci; Wagon; FULL HYBRID EV-GAS (FHEV) / Three; 1.8L L4 1798cc 110ci; Wagon; FULL HYBRID EV-GAS (FHEV) / Two; 1.8L L4 1798cc 110ci; Wagon; FULL HYBRID EV-GAS (FHEV) | ||
| 2014 | Toyota | Prius V | Five; 1.8L L4 1798cc 110ci; Wagon; FULL HYBRID EV-GAS (FHEV) / Three; 1.8L L4 1798cc 110ci; Wagon; FULL HYBRID EV-GAS (FHEV) / Two; 1.8L L4 1798cc 110ci; Wagon; FULL HYBRID EV-GAS (FHEV) | ||
| 2015 | Toyota | Prius V | Five; 1.8L L4 1798cc 110ci; Wagon; FULL HYBRID EV-GAS (FHEV) / Three; 1.8L L4 1798cc 110ci; Wagon; FULL HYBRID EV-GAS (FHEV) / Two; 1.8L L4 1798cc 110ci; Wagon; FULL HYBRID EV-GAS (FHEV) | ||
| 2015 | Toyota | Prius V | Four; 1.8L L4 1798cc 110ci; Wagon; FULL HYBRID EV-GAS (FHEV) | ||
| 2016 | Toyota | Prius V | Five; 1.8L L4 1798cc 110ci; Wagon; FULL HYBRID EV-GAS (FHEV) / Three; 1.8L L4 1798cc 110ci; Wagon; FULL HYBRID EV-GAS (FHEV) / Two; 1.8L L4 1798cc 110ci; Wagon; FULL HYBRID EV-GAS (FHEV) | ||
| 2016 | Toyota | Prius V | Four; 1.8L L4 1798cc 110ci; Wagon; FULL HYBRID EV-GAS (FHEV) | ||
| 2017 | Toyota | Prius V | Five; 1.8L L4 1798cc 110ci; Wagon; FULL HYBRID EV-GAS (FHEV) / Three; 1.8L L4 1798cc 110ci; Wagon; FULL HYBRID EV-GAS (FHEV) / Two; 1.8L L4 1798cc 110ci; Wagon; FULL HYBRID EV-GAS (FHEV) | ||
| 2017 | Toyota | Prius V | Four; 1.8L L4 1798cc 110ci; Wagon; FULL HYBRID EV-GAS (FHEV) |
FAQ
Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.
What part number is this?
The listed part number is 13436.
Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.
Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
