Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

• Total Tube Count: 46
• Core Height (in): 15.28
• Toc Inlet Type: Tube fitting
• Top Header: 2.02x16.18
• Toc Outlet Type: Tube fitting
• Fin Wave Height (in): 0.25
• Toc Distance (in): 11.50
• Fin Wave Pitch: 2.2
• Outlet Connection Type: Quick Connect (Spring Lock)
• Transmission Oil Cooler Included: Yes
• No. Of Rows: 1
• Core Thickness (in): 1.02
• Total Fin Row Count: 47
• Core Length (in): 18.31
• Engine Oil Cooler Included: No
• Core Material: Aluminum
• Transmission Oil Cooler Type: Plate Oil Cooler
• TOC Inlet Diameter (IN): 0.39
• Flow Configuration: Crossflow
• TOC Outlet Diameter (IN): 0.39
• Tube Width X Height: 26x2
• Inlet Connection Type: Hose Clamp
• Inlet Diameter (in): 1.38
• Fin Count (every 4"): 92
• Bottom Header: 2.02x16.18
• Outlet Diameter (in): 1.38
• Tube Count (every 4"): 12

Package Details

• Part Number: 13415

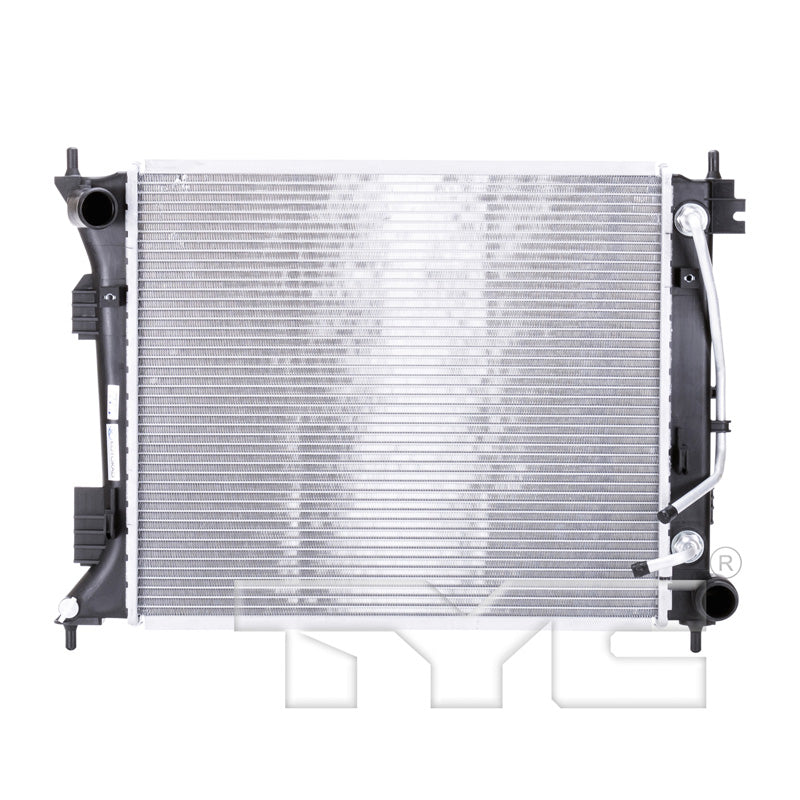

• 13-15 HY VLSTR 1.6L L4 AT W/ TUR 1R PA RAD
• Package L x W x H: 19.69" x 5.71" x 25.59"
• Package Weight: 10.32 lbs.

Interchanges

• DENSO: 221-9339
• Hyundai: 25310-2V750
• APDI: 8013415
• Spectra Premium: CU13415
• Partslink: HY3010184

Vehicle Fitment Table

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 13415.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
