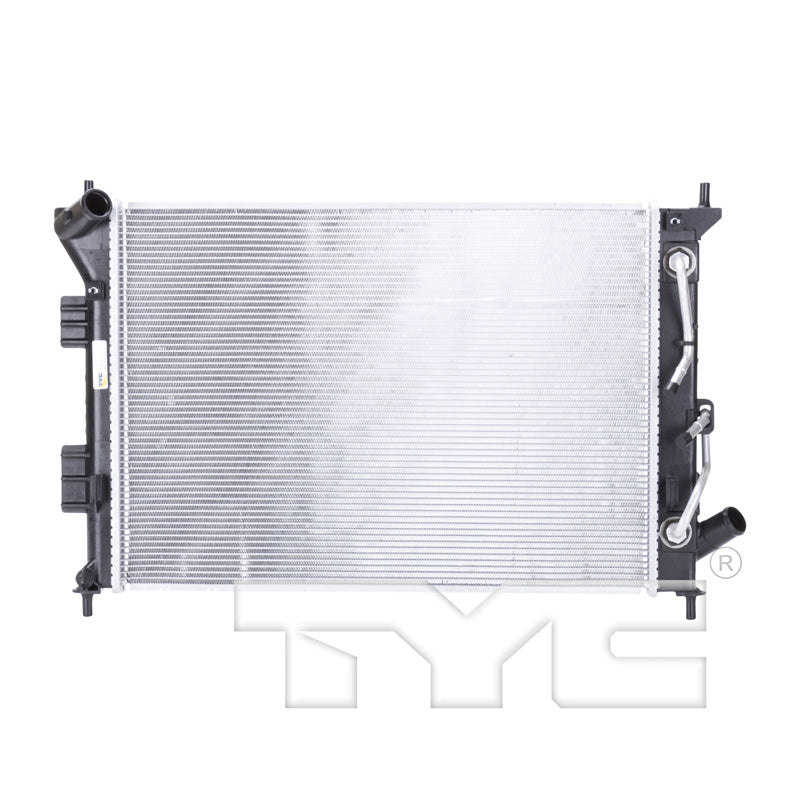

TYC 13414 Radiator Assembly for 2014-2019 Kia Soul

TYC 13414 Radiator Assembly for 2014-2019 Kia Soul
    TYC 13414 Radiator Assembly for 2014-2019 Kia Soul
TYC 13414 Radiator Assembly for 2014-2019 Kia Soul
Brand: TYC
$227.39 CAD
$227.39 CAD
Shipping calculated at checkout.

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.

13414
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Product Description

Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

  • Core Thickness (in): 0.63
  • Tube Count (every 4"): 16
  • Fin Count (every 4"): 85
  • Total Tube Count: 60
  • Engine Oil Cooler Included: No
  • Toc Inlet Type: Tube fitting
  • Outlet Diameter (in): 1.3
  • TOC Inlet Diameter (IN): 0.39
  • Core Height (in): 15.55
  • Transmission Oil Cooler Included: Yes
  • Core Material: Aluminum
  • Total Fin Row Count: 61
  • Core Length (in): 21.73
  • No. Of Rows: 1
  • Toc Outlet Type: Tube fitting
  • Fin Wave Pitch: 2.4
  • Bottom Header: 1.94x16.18
  • Toc Distance (in): 11.02
  • TOC Outlet Diameter (IN): 0.39
  • Transmission Oil Cooler Type: Concentric Oil Cooler
  • Top Header: 1.94x16.18
  • Inlet Diameter (in): 1.3
  • Flow Configuration: Crossflow
  • Tube Width X Height: 16x1.5
  • Fin Wave Height (in): 0.2
  • Inlet Connection Type: Hose Clamp
  • Outlet Connection Type: Hose Clamp

Package Details

  • Part Number: 13414
  • 14-15 KA S-OUL 2.0L AT 1R PA (W/ TOC) RAD
  • Package L x W x H: 19.69" x 5.71" x 29.53"
  • Package Weight: 7.77 lbs.

Interchanges

  • DENSO: 221-9338 / 221-9552
  • Kia: 25310-B2050
  • APDI: 8013414
  • Spectra Premium: CU13414
  • Partslink: KI3010149

Vehicle Fitment Table

Year Make Model Position Fitment Precision Note
2014 Kia Soul !; 2.0L L4 1999cc 122ci; Hatchback; 2.0L L4 1999cc 122ci, Primary
2014 Kia Soul +; 2.0L L4 1999cc 122ci; Hatchback; 2.0L L4 1999cc 122ci, Primary / Base; 1.6L L4 1591cc 97ci; Naturally Aspirated; Hatchback; Automatic, Primary
2015 Kia Soul !; 2.0L L4 1999cc 122ci; Hatchback; 2.0L L4 1999cc 122ci, Primary
2015 Kia Soul +; 2.0L L4 1999cc 122ci; Hatchback; 2.0L L4 1999cc 122ci, Primary / Base; 1.6L L4 1591cc 97ci; Naturally Aspirated; Hatchback; Automatic, Primary
2016 Kia Soul !; 2.0L L4 1999cc 122ci; Hatchback; 2.0L L4 1999cc 122ci, Primary
2016 Kia Soul +; 2.0L L4 1999cc 122ci; Hatchback; 2.0L L4 1999cc 122ci, Primary / Base; 1.6L L4 1591cc 97ci; Naturally Aspirated; Hatchback; Automatic, Primary
2017 Kia Soul +; 2.0L L4 1999cc 122ci; Hatchback; 2.0L L4 1999cc 122ci, Primary / Base; 1.6L L4 1591cc 97ci; Naturally Aspirated; Hatchback; Automatic, Primary
2018 Kia Soul +; 2.0L L4 1999cc 122ci; Hatchback; 2.0L L4 1999cc 122ci, Primary / Base; 1.6L L4 1591cc 97ci; Naturally Aspirated; Hatchback; Automatic, Primary
2019 Kia Soul +; 2.0L L4 1999cc 122ci; Hatchback; 2.0L L4 1999cc 122ci, Primary / Base; 1.6L L4 1591cc 97ci; Naturally Aspirated; Hatchback; Automatic, Primary

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 13414.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
