Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

• Fin Wave Height (in): 0.2
• Core Material: Aluminum
• Core Length (in): 19.69
• Engine Oil Cooler Included: No
• Flow Configuration: Downflow
• No. Of Rows: 1
• Outlet Diameter (in): 1.28
• Total Tube Count: 117
• Core Height (in): 30.14
• Bottom Header: 2.02x31.37
• Inlet Diameter (in): 1.28
• Transmission Oil Cooler Included: No
• Fin Wave Pitch: 2.6
• Outlet Connection Type: Hose Clamp
• Tube Width X Height: 26x1.5
• Total Fin Row Count: 118
• Tube Count (every 4"): 16
• Inlet Connection Type: Hose Clamp
• Fin Count (every 4"): 78
• Top Header: 2.02x31.37
• Core Thickness (in): 1.02

Package Details

• Part Number: 13402

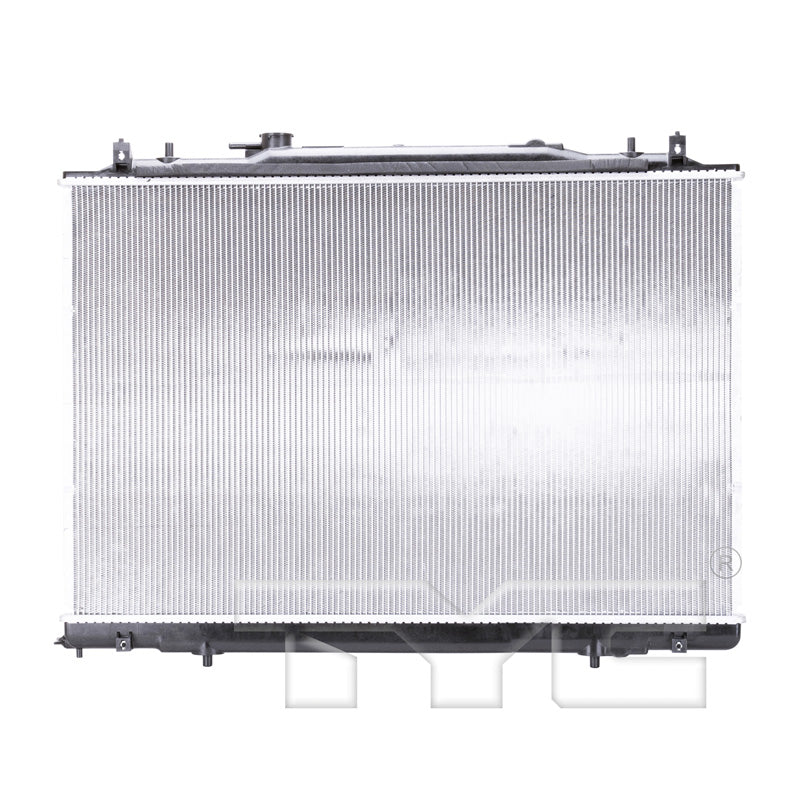

• 14-20 AC M.D.X 3.5L V6 1R PA RAD
• Package L x W x H: 5.98" x 29.84" x 36.38"
• Package Weight: 15.62 lbs.

Interchanges

• Acura: 19010-5J6-A01
• Honda: 19010-5J6-A01
• DENSO: 221-9337
• APDI: 8013402
• Partslink: AC3010153
• Spectra Premium: CU13402

Vehicle Fitment Table

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 13402.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
