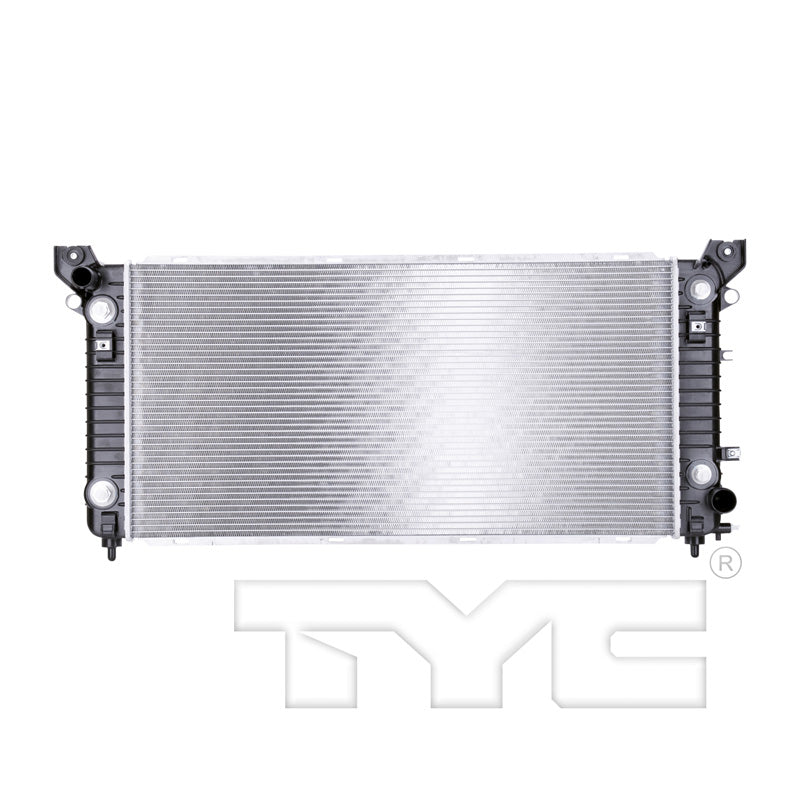

TYC 13396 Radiator Assembly for 2014-2018 Chevrolet Silverado 1500

TYC 13396 Radiator Assembly for 2014-2018 Chevrolet Silverado 1500
    TYC 13396 Radiator Assembly for 2014-2018 Chevrolet Silverado 1500
TYC 13396 Radiator Assembly for 2014-2018 Chevrolet Silverado 1500
Brand: TYC
$368.79 CAD
$368.79 CAD
Shipping calculated at checkout.

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.

13396
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Product Description

Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

  • Inlet Connection Type: Hose Clamp
  • No. Of Rows: 1
  • Core Height (in): 17.15
  • Total Tube Count: 45
  • EOC Outlet Type: Quick Connect
  • EOC Inlet Type: Quick Connect
  • EOC Inlet Diameter (IN): 0.37
  • Outlet Diameter (in): 1.57
  • Inlet Diameter (in): 1.34
  • Fin Wave Height (in): 0.31
  • EOC Distance (IN): 11.50
  • Top Header: 2.26x17.69
  • Transmission Oil Cooler Type: Plate Oil Cooler
  • Outlet Connection Type: Hose Clamp
  • Flow Configuration: Crossflow
  • Core Material: Aluminum
  • Core Length (in): 34.02
  • Toc Inlet Type: Quick Connect
  • Total Fin Row Count: 46
  • Core Thickness (in): 0.87
  • TOC Inlet Diameter (IN): 0.37
  • Tube Width X Height: 22x1.5
  • Engine Oil Cooler Included: Yes
  • EOC Outlet Diameter (IN): 0.37
  • Toc Distance (in): 11.50
  • Fin Count (every 4"): 75
  • TOC Outlet Diameter (IN): 0.37
  • EOC Inlet Diameter (mm): 9.5
  • Fin Wave Pitch: 2.7
  • Transmission Oil Cooler Included: Yes
  • Engine Oil Cooler Type: Plate Oil Cooler
  • Toc Outlet Type: Quick Connect
  • Tube Count (every 4"): 11
  • Bottom Header: 2.85x17.69

Package Details

  • Part Number: 13396
  • 14-19 CV SLVRD 1500 4.3L V6 AT 1R PA(w/o TOW)RAD
  • Package L x W x H: 7.76" x 24.45" x 45.35"
  • Package Weight: 17.50 lbs.

Interchanges

  • DENSO: 221-9452
  • APDI: 8013396
  • GMC: 84186716
  • Chevrolet: 84186716
  • Spectra Premium: CU13396
  • Partslink: GM3010563

Vehicle Fitment Table

Year Make Model Position Fitment Precision Note
2014 Chevrolet Silverado 1500 LT; 4.3L V6 262ci; Crew Cab Pickup; 4.3L V6 262ci, Primary / LT; 4.3L V6 262ci; Extended Cab Pickup; 4.3L V6 262ci, Primary / LT; 4.3L V6 262ci; Standard Cab Pickup; 4.3L V6 262ci, Primary / WT; 4.3L V6 262ci; Crew Cab Pickup; 4.3L V6 262ci, Primary / WT; 4.3L V6 262ci; Extended Cab Pickup; 4.3L V6 262ci, Primary / WT; 4.3L V6 262ci; Standard Cab Pickup; 4.3L V6 262ci, Primary w/o Towing Pkg
2015 Chevrolet Silverado 1500 LS; 4.3L V6 262ci; Crew Cab Pickup; 4.3L V6 262ci, Primary / LS; 4.3L V6 262ci; Extended Cab Pickup; 4.3L V6 262ci, Primary / LS; 4.3L V6 262ci; Standard Cab Pickup; 4.3L V6 262ci, Primary w/o Towing Pkg
2015 Chevrolet Silverado 1500 LT; 4.3L V6 262ci; Crew Cab Pickup; 4.3L V6 262ci, Primary / LT; 4.3L V6 262ci; Extended Cab Pickup; 4.3L V6 262ci, Primary / LT; 4.3L V6 262ci; Standard Cab Pickup; 4.3L V6 262ci, Primary / WT; 4.3L V6 262ci; Crew Cab Pickup; 4.3L V6 262ci, Primary / WT; 4.3L V6 262ci; Extended Cab Pickup; 4.3L V6 262ci, Primary / WT; 4.3L V6 262ci; Standard Cab Pickup; 4.3L V6 262ci, Primary w/o Towing Pkg
2016 Chevrolet Silverado 1500 Custom; 4.3L V6 262ci; Crew Cab Pickup; 4.3L V6 262ci, Primary / Custom; 4.3L V6 262ci; Extended Cab Pickup; 4.3L V6 262ci, Primary w/o Towing Pkg
2016 Chevrolet Silverado 1500 LS; 4.3L V6 262ci; Crew Cab Pickup; 4.3L V6 262ci, Primary / LS; 4.3L V6 262ci; Extended Cab Pickup; 4.3L V6 262ci, Primary / LS; 4.3L V6 262ci; Standard Cab Pickup; 4.3L V6 262ci, Primary w/o Towing Pkg
2016 Chevrolet Silverado 1500 LT; 4.3L V6 262ci; Crew Cab Pickup; 4.3L V6 262ci, Primary / LT; 4.3L V6 262ci; Extended Cab Pickup; 4.3L V6 262ci, Primary / LT; 4.3L V6 262ci; Standard Cab Pickup; 4.3L V6 262ci, Primary / WT; 4.3L V6 262ci; Crew Cab Pickup; 4.3L V6 262ci, Primary / WT; 4.3L V6 262ci; Extended Cab Pickup; 4.3L V6 262ci, Primary / WT; 4.3L V6 262ci; Standard Cab Pickup; 4.3L V6 262ci, Primary w/o Towing Pkg
2017 Chevrolet Silverado 1500 Custom; 4.3L V6 262ci; Crew Cab Pickup; 4.3L V6 262ci, Primary / Custom; 4.3L V6 262ci; Extended Cab Pickup; 4.3L V6 262ci, Primary w/o Towing Pkg
2017 Chevrolet Silverado 1500 LS; 4.3L V6 262ci; Crew Cab Pickup; 4.3L V6 262ci, Primary / LS; 4.3L V6 262ci; Extended Cab Pickup; 4.3L V6 262ci, Primary / LS; 4.3L V6 262ci; Standard Cab Pickup; 4.3L V6 262ci, Primary w/o Towing Pkg
2017 Chevrolet Silverado 1500 LT; 4.3L V6 262ci; Crew Cab Pickup; 4.3L V6 262ci, Primary / LT; 4.3L V6 262ci; Extended Cab Pickup; 4.3L V6 262ci, Primary / LT; 4.3L V6 262ci; Standard Cab Pickup; 4.3L V6 262ci, Primary / WT; 4.3L V6 262ci; Crew Cab Pickup; 4.3L V6 262ci, Primary / WT; 4.3L V6 262ci; Extended Cab Pickup; 4.3L V6 262ci, Primary / WT; 4.3L V6 262ci; Standard Cab Pickup; 4.3L V6 262ci, Primary w/o Towing Pkg
2018 Chevrolet Silverado 1500 Custom; 4.3L V6 262ci; Crew Cab Pickup; 4.3L V6 262ci, Primary / Custom; 4.3L V6 262ci; Extended Cab Pickup; 4.3L V6 262ci, Primary w/o Towing Pkg
2018 Chevrolet Silverado 1500 LS; 4.3L V6 262ci; Crew Cab Pickup; 4.3L V6 262ci, Primary / LS; 4.3L V6 262ci; Extended Cab Pickup; 4.3L V6 262ci, Primary / LS; 4.3L V6 262ci; Standard Cab Pickup; 4.3L V6 262ci, Primary w/o Towing Pkg
2018 Chevrolet Silverado 1500 LT; 4.3L V6 262ci; Crew Cab Pickup; 4.3L V6 262ci, Primary / LT; 4.3L V6 262ci; Extended Cab Pickup; 4.3L V6 262ci, Primary / LT; 4.3L V6 262ci; Standard Cab Pickup; 4.3L V6 262ci, Primary / WT; 4.3L V6 262ci; Crew Cab Pickup; 4.3L V6 262ci, Primary / WT; 4.3L V6 262ci; Extended Cab Pickup; 4.3L V6 262ci, Primary / WT; 4.3L V6 262ci; Standard Cab Pickup; 4.3L V6 262ci, Primary w/o Towing Pkg
2014 GMC Sierra 1500 Base; 4.3L V6 262ci; Crew Cab Pickup; 4.3L V6 262ci, Primary / Base; 4.3L V6 262ci; Extended Cab Pickup; 4.3L V6 262ci, Primary / Base; 4.3L V6 262ci; Standard Cab Pickup; 4.3L V6 262ci, Primary / SLE; 4.3L V6 262ci; Crew Cab Pickup; 4.3L V6 262ci, Primary / SLE; 4.3L V6 262ci; Extended Cab Pickup; 4.3L V6 262ci, Primary / SLE; 4.3L V6 262ci; Standard Cab Pickup; 4.3L V6 262ci, Primary w/o Towing Pkg
2015 GMC Sierra 1500 Base; 4.3L V6 262ci; Crew Cab Pickup; 4.3L V6 262ci, Primary / Base; 4.3L V6 262ci; Extended Cab Pickup; 4.3L V6 262ci, Primary / Base; 4.3L V6 262ci; Standard Cab Pickup; 4.3L V6 262ci, Primary / SLE; 4.3L V6 262ci; Crew Cab Pickup; 4.3L V6 262ci, Primary / SLE; 4.3L V6 262ci; Extended Cab Pickup; 4.3L V6 262ci, Primary / SLE; 4.3L V6 262ci; Standard Cab Pickup; 4.3L V6 262ci, Primary w/o Towing Pkg
2016 GMC Sierra 1500 Base; 4.3L V6 262ci; Crew Cab Pickup; 4.3L V6 262ci, Primary / Base; 4.3L V6 262ci; Extended Cab Pickup; 4.3L V6 262ci, Primary / Base; 4.3L V6 262ci; Standard Cab Pickup; 4.3L V6 262ci, Primary / SLE; 4.3L V6 262ci; Crew Cab Pickup; 4.3L V6 262ci, Primary / SLE; 4.3L V6 262ci; Extended Cab Pickup; 4.3L V6 262ci, Primary / SLE; 4.3L V6 262ci; Standard Cab Pickup; 4.3L V6 262ci, Primary w/o Towing Pkg
2017 GMC Sierra 1500 Base; 4.3L V6 262ci; Crew Cab Pickup; 4.3L V6 262ci, Primary / Base; 4.3L V6 262ci; Extended Cab Pickup; 4.3L V6 262ci, Primary / Base; 4.3L V6 262ci; Standard Cab Pickup; 4.3L V6 262ci, Primary / SLE; 4.3L V6 262ci; Crew Cab Pickup; 4.3L V6 262ci, Primary / SLE; 4.3L V6 262ci; Extended Cab Pickup; 4.3L V6 262ci, Primary / SLE; 4.3L V6 262ci; Standard Cab Pickup; 4.3L V6 262ci, Primary w/o Towing Pkg
2018 GMC Sierra 1500 Base; 4.3L V6 262ci; Crew Cab Pickup; 4.3L V6 262ci, Primary / Base; 4.3L V6 262ci; Extended Cab Pickup; 4.3L V6 262ci, Primary / Base; 4.3L V6 262ci; Standard Cab Pickup; 4.3L V6 262ci, Primary / SLE; 4.3L V6 262ci; Crew Cab Pickup; 4.3L V6 262ci, Primary / SLE; 4.3L V6 262ci; Extended Cab Pickup; 4.3L V6 262ci, Primary / SLE; 4.3L V6 262ci; Standard Cab Pickup; 4.3L V6 262ci, Primary w/o Towing Pkg

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 13396.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
