Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

• Tube Width X Height: 0.629*0.055
• Transmission Oil Cooler Distance between Fittings: 12.80
• Tank Material: Plastic
• Transmission Oil Cooler Type: Concentric
• Inlet Fitting Design: Hose Clamp
• Outlet Fitting Design: Hose Clamp
• TOC Outlet Diameter: 0.39
• Core Thickness (in): 0.63
• Inlet Diameter: 1.27
• Core Length (in): 27.17
• TOC Outlet Fitting Design: Hose Clamp
• TOC Inlet Fitting Design: Hose Clamp
• No. Of Rows: 1
• Core Material: Aluminum
• Core Height (in): 14.76
• Outlet Diamter: 1.28
• Flow Configuration: Downflow
• Fin Height: 0.21
• TOC Inlet Diameter: 0.39

Package Details

• Part Number: 13354

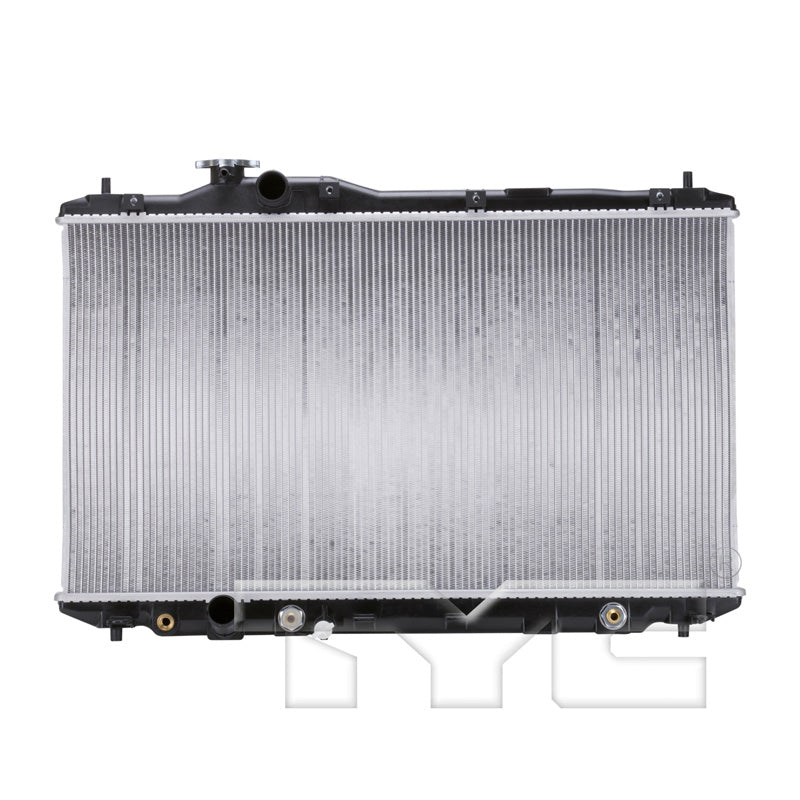

• 13-14 AC I.L.X HYBD (w/ TOC) RAD
• Package L x W x H: 6.57" x 22.68" x 30.43"
• Package Weight: 11.00 lbs.

Interchanges

• DPI (DataPoint Inc): 13354
• Honda: 19010-RW0-A51
• Acura: 19010-RW0-A51
• DENSO: 221-9144
• APDI: 8013257
• Partslink: AC3010150
• Spectra Premium: CU13354

Vehicle Fitment Table

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 13354.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
