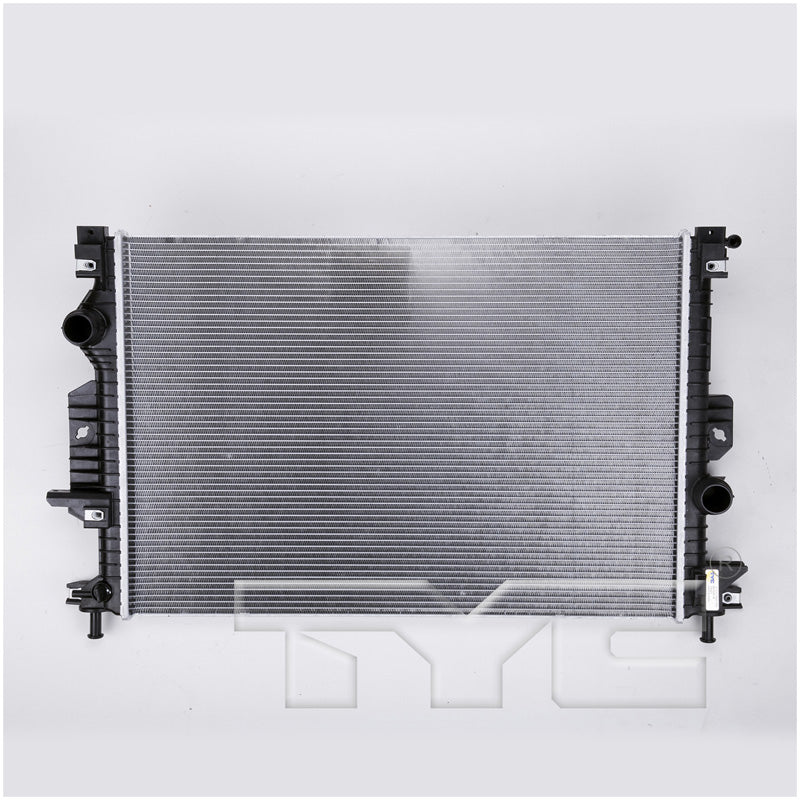

TYC 13331 Radiator Assembly for 2013-2018 Ford C-Max

TYC 13331 Radiator Assembly for 2013-2018 Ford C-Max
    TYC 13331 Radiator Assembly for 2013-2018 Ford C-Max
TYC 13331 Radiator Assembly for 2013-2018 Ford C-Max
Brand: TYC
$295.06 CAD
$295.06 CAD
Shipping calculated at checkout.

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.

13331
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Product Description

Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

  • Bottom Header: 1.83x18.78
  • Top Header: 1.83x18.78
  • Core Height (in): 18.37
  • Core Thickness (in): 0.71
  • Fin Wave Pitch: 2.6
  • Outlet Connection Type: Quick Connect (Spring Lock)
  • Tube Count (every 4"): 13
  • Core Length (in): 26.46
  • Flow Configuration: Crossflow
  • Fin Count (every 4"): 78
  • Core Material: Aluminum
  • Tube Width X Height: 18x1.5
  • No. Of Rows: 1
  • Total Tube Count: 59
  • Engine Oil Cooler Included: No
  • Transmission Oil Cooler Included: No
  • Inlet Diameter (in): 1.52
  • Fin Wave Height (in): 0.25
  • Total Fin Row Count: 60
  • Inlet Connection Type: Quick Connect (Spring Lock)
  • Outlet Diameter (in): 1.52

Package Details

  • Part Number: 13331
  • 13-16 FD CMAX HYBD/ENERGI 2.0L L4 AT 1R PA RAD
  • Package L x W x H: 21.46" x 5.51" x 34.84"
  • Package Weight: 11.68 lbs.

Interchanges

  • DENSO: 221-9312
  • APDI: 8013331
  • Spectra Premium: CU13331
  • Ford: DM5Z 8005 A
  • Partslink: FO3010318

Vehicle Fitment Table

Year Make Model Position Fitment Precision Note
2013 Ford C-Max Energi SEL; 2.0L L4 1999cc 122ci; Hatchback; 2.0L L4 1999cc 122ci, Primary / Hybrid SEL; 2.0L L4 1999cc 122ci; Hatchback; 2.0L L4 1999cc 122ci, Primary
2013 Ford C-Max Hybrid SE; 2.0L L4 1999cc 122ci; Hatchback; 2.0L L4 1999cc 122ci, Primary
2014 Ford C-Max Energi SEL; 2.0L L4 1999cc 122ci; Hatchback; 2.0L L4 1999cc 122ci, Primary / Hybrid SEL; 2.0L L4 1999cc 122ci; Hatchback; 2.0L L4 1999cc 122ci, Primary
2014 Ford C-Max Hybrid SE; 2.0L L4 1999cc 122ci; Hatchback; 2.0L L4 1999cc 122ci, Primary
2015 Ford C-Max Energi SEL; 2.0L L4 1999cc 122ci; Hatchback; 2.0L L4 1999cc 122ci, Primary / Hybrid SEL; 2.0L L4 1999cc 122ci; Hatchback; 2.0L L4 1999cc 122ci, Primary
2015 Ford C-Max Hybrid SE; 2.0L L4 1999cc 122ci; Hatchback; 2.0L L4 1999cc 122ci, Primary
2016 Ford C-Max Energi SEL; 2.0L L4 1999cc 122ci; Hatchback; 2.0L L4 1999cc 122ci, Primary / Hybrid SEL; 2.0L L4 1999cc 122ci; Hatchback; 2.0L L4 1999cc 122ci, Primary
2016 Ford C-Max Hybrid SE; 2.0L L4 1999cc 122ci; Hatchback; 2.0L L4 1999cc 122ci, Primary
2017 Ford C-Max Energi SE; 2.0L L4 1999cc 122ci; Hatchback; 2.0L L4 1999cc 122ci, Primary / Energi Titanium; 2.0L L4 1999cc 122ci; Hatchback; 2.0L L4 1999cc 122ci, Primary
2017 Ford C-Max Hybrid SE; 2.0L L4 1999cc 122ci; Hatchback; 2.0L L4 1999cc 122ci, Primary
2017 Ford C-Max Hybrid Titanium; 2.0L L4 1999cc 122ci; Hatchback; 2.0L L4 1999cc 122ci, Primary
2018 Ford C-Max Hybrid SE; 2.0L L4 1999cc 122ci; Hatchback; 2.0L L4 1999cc 122ci, Primary
2018 Ford C-Max Hybrid Titanium; 2.0L L4 1999cc 122ci; Hatchback; 2.0L L4 1999cc 122ci, Primary

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 13331.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.

Common Searches

  • Radiator Assembly for Ford C-Max
  • 13331 fitment
  • TYC Radiator Assembly
  • 2013-2016 Ford C-Max Radiator Assembly
