Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

• Transmission Oil Cooler Included: Yes
• TOC Inlet Diameter (IN): 0.39
• Flow Configuration: Crossflow
• Outlet Diameter (in): 1.38
• Fin Wave Height (in): 0.25
• Tube Count (every 4"): 12
• Core Material: Aluminum
• Bottom Header: 1.96x19.48
• Fin Count (every 4"): 78
• No. Of Rows: 1
• Inlet Diameter (in): 1.38
• Tube Width X Height: 26x2
• Total Fin Row Count: 58
• Top Header: 1.96x19.48
• Accessories Included: Pipe M14*P1.5*1
• Engine Oil Cooler Included: No
• Total Tube Count: 57
• Core Length (in): 19.09
• Core Height (in): 18.87
• Outlet Connection Type: Hose Clamp
• Fin Wave Pitch: 2.6
• Toc Inlet Type: Tube fitting
• Inlet Connection Type: Hose Clamp
• Toc Outlet Type: Tube fitting
• Core Thickness (in): 1.02
• TOC Outlet Diameter (IN): 0.39
• Toc Distance (in): 14.57
• Transmission Oil Cooler Type: Concentric Oil Cooler

Package Details

• Part Number: 13324

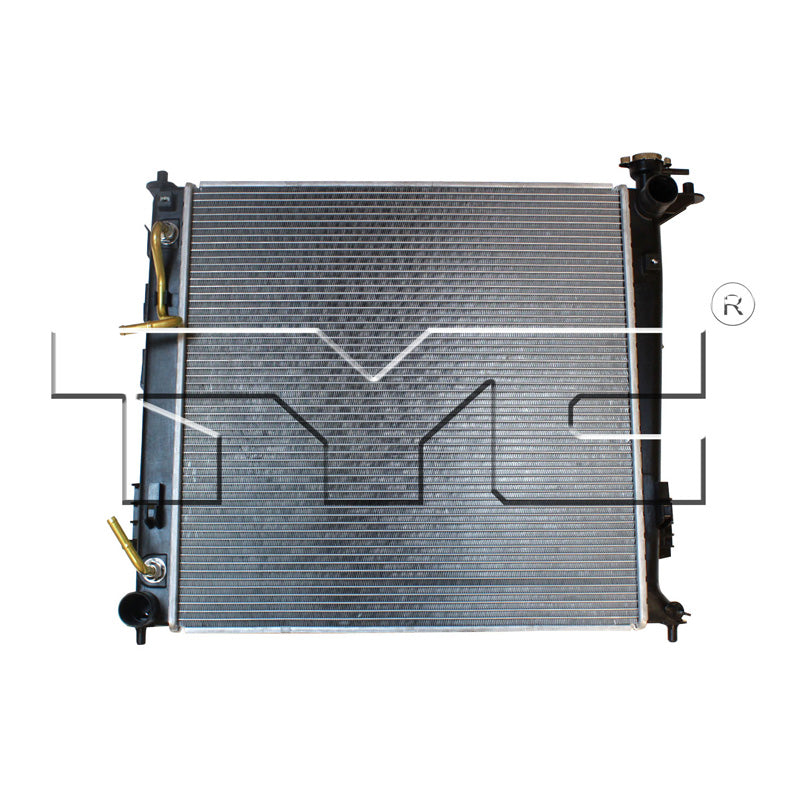

• 11-16 KA SPTGE 2.0L L4 A/MT 1R PA (w/ TOC) RAD
• Package L x W x H: 6.57" x 23.86" x 29.84"
• Package Weight: 12.85 lbs.

Interchanges

• DPI (DataPoint Inc): 13324
• DENSO: 221-9306
• Kia: 25310 2S200
• APDI: 8013324
• Spectra Premium: CU13324
• Partslink: KI3010143

Vehicle Fitment Table

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 13324.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
