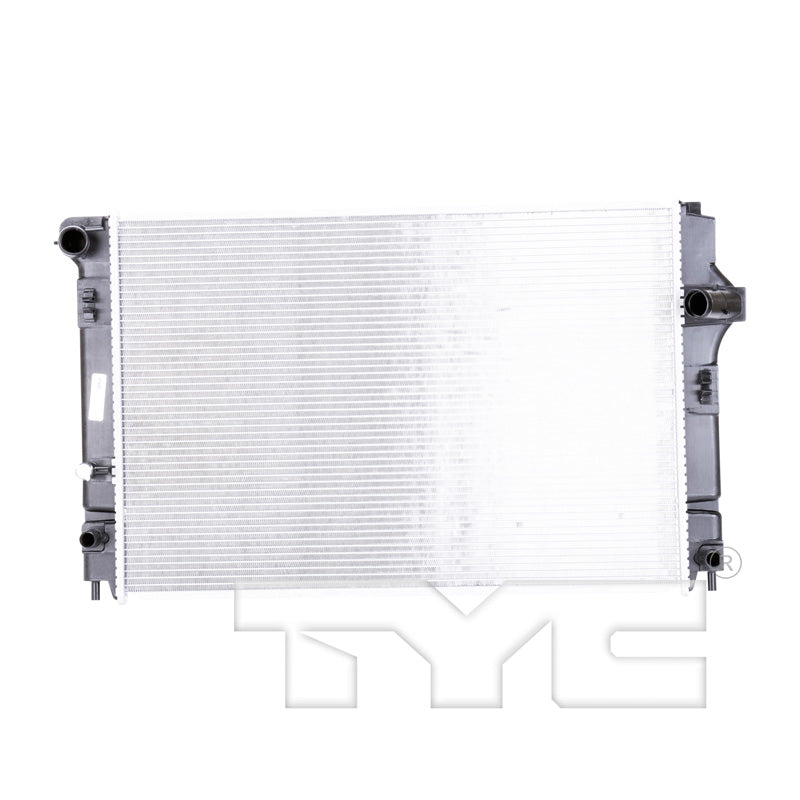

TYC 13319 Radiator Assembly for 2012-2019 Toyota Prius C

TYC 13319 Radiator Assembly for 2012-2019 Toyota Prius C
    TYC 13319 Radiator Assembly for 2012-2019 Toyota Prius C
TYC 13319 Radiator Assembly for 2012-2019 Toyota Prius C
Brand: TYC
$204.82 CAD
$204.82 CAD
Shipping calculated at checkout.

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.

13319
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Product Description

Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

  • Core Thickness (in): 0.63
  • Total Fin Row Count: 52
  • Top Header: 1.43x17.02
  • Flow Configuration: Crossflow
  • Transmission Oil Cooler Included: No
  • Fin Wave Height (in): 0.25
  • Tube Count (every 4"): 13
  • Tube Width X Height: 16x1.5
  • Total Tube Count: 51
  • Inlet Diameter (in): 1.26
  • Bottom Header: 1.43x17.02
  • Core Height (in): 17.13
  • Engine Oil Cooler Included: No
  • Fin Count (every 4"): 92
  • Inlet Connection Type: Hose Clamp
  • No. Of Rows: 1
  • Outlet Diameter (in): 1.26
  • Core Length (in): 23.62
  • Fin Wave Pitch: 2.2
  • Outlet Connection Type: Hose Clamp
  • Core Material: Aluminum

Package Details

  • Part Number: 13319
  • 12-16 TY PRUS C 1.5L L4 AT 1R PA RAD
  • Package L x W x H: 18.50" x 5.12" x 30.71"
  • Package Weight: 7.50 lbs.

Interchanges

  • Toyota: 16400-21331
  • DENSO: 221-9302
  • APDI: 8013319
  • Spectra Premium: CU13319
  • Partslink: TO3010342

Vehicle Fitment Table

Year Make Model Position Fitment Precision Note
2012 Toyota Prius C Four; 1.5L L4 1497cc 91ci; Hatchback; 1.5L L4 1497cc 91ci, Primary / One; 1.5L L4 1497cc 91ci; Hatchback; 1.5L L4 1497cc 91ci, Primary / Three; 1.5L L4 1497cc 91ci; Hatchback; 1.5L L4 1497cc 91ci, Primary / Two; 1.5L L4 1497cc 91ci; Hatchback; 1.5L L4 1497cc 91ci, Primary
2013 Toyota Prius C Four; 1.5L L4 1497cc 91ci; Hatchback; 1.5L L4 1497cc 91ci, Primary / One; 1.5L L4 1497cc 91ci; Hatchback; 1.5L L4 1497cc 91ci, Primary / Three; 1.5L L4 1497cc 91ci; Hatchback; 1.5L L4 1497cc 91ci, Primary / Two; 1.5L L4 1497cc 91ci; Hatchback; 1.5L L4 1497cc 91ci, Primary
2014 Toyota Prius C Four; 1.5L L4 1497cc 91ci; Hatchback; 1.5L L4 1497cc 91ci, Primary / One; 1.5L L4 1497cc 91ci; Hatchback; 1.5L L4 1497cc 91ci, Primary / Three; 1.5L L4 1497cc 91ci; Hatchback; 1.5L L4 1497cc 91ci, Primary / Two; 1.5L L4 1497cc 91ci; Hatchback; 1.5L L4 1497cc 91ci, Primary
2015 Toyota Prius C Four; 1.5L L4 1497cc 91ci; Hatchback; 1.5L L4 1497cc 91ci, Primary / One; 1.5L L4 1497cc 91ci; Hatchback; 1.5L L4 1497cc 91ci, Primary / Three; 1.5L L4 1497cc 91ci; Hatchback; 1.5L L4 1497cc 91ci, Primary / Two; 1.5L L4 1497cc 91ci; Hatchback; 1.5L L4 1497cc 91ci, Primary
2016 Toyota Prius C Four; 1.5L L4 1497cc 91ci; Hatchback; 1.5L L4 1497cc 91ci, Primary / One; 1.5L L4 1497cc 91ci; Hatchback; 1.5L L4 1497cc 91ci, Primary / Three; 1.5L L4 1497cc 91ci; Hatchback; 1.5L L4 1497cc 91ci, Primary / Two; 1.5L L4 1497cc 91ci; Hatchback; 1.5L L4 1497cc 91ci, Primary
2016 Toyota Prius C Persona Series; 1.5L L4 1497cc 91ci; Hatchback; 1.5L L4 1497cc 91ci, Primary
2017 Toyota Prius C Four; 1.5L L4 1497cc 91ci; Hatchback; 1.5L L4 1497cc 91ci, Primary / One; 1.5L L4 1497cc 91ci; Hatchback; 1.5L L4 1497cc 91ci, Primary / Three; 1.5L L4 1497cc 91ci; Hatchback; 1.5L L4 1497cc 91ci, Primary / Two; 1.5L L4 1497cc 91ci; Hatchback; 1.5L L4 1497cc 91ci, Primary
2018 Toyota Prius C Four; 1.5L L4 1497cc 91ci; Hatchback; 1.5L L4 1497cc 91ci, Primary / One; 1.5L L4 1497cc 91ci; Hatchback; 1.5L L4 1497cc 91ci, Primary / Three; 1.5L L4 1497cc 91ci; Hatchback; 1.5L L4 1497cc 91ci, Primary / Two; 1.5L L4 1497cc 91ci; Hatchback; 1.5L L4 1497cc 91ci, Primary
2019 Toyota Prius C L; 1.5L L4 1497cc 91ci; Hatchback; 1.5L L4 1497cc 91ci, Primary / LE; 1.5L L4 1497cc 91ci; Hatchback; 1.5L L4 1497cc 91ci, Primary

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 13319.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
