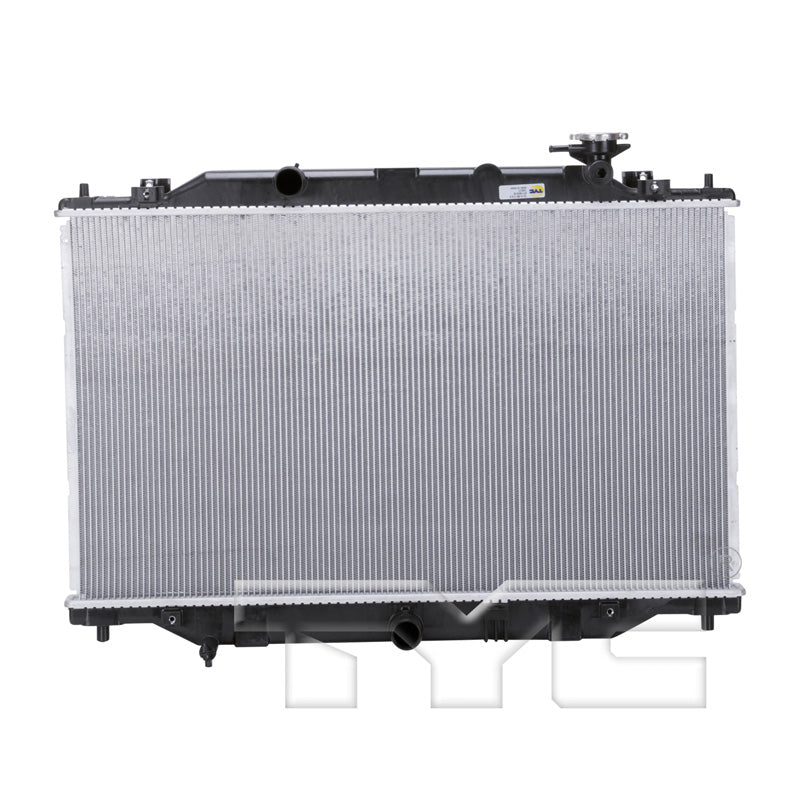

TYC 13317 Radiator Assembly for 2013-2016 Mazda CX-5

TYC 13317 Radiator Assembly for 2013-2016 Mazda CX-5
    TYC 13317 Radiator Assembly for 2013-2016 Mazda CX-5
TYC 13317 Radiator Assembly for 2013-2016 Mazda CX-5
Brand: TYC
$249.49 CAD
$249.49 CAD
Shipping calculated at checkout.

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.

13317
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Product Description

Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

  • Bottom Header: 2.02x29.88
  • Inlet Diameter (in): 1.32
  • Engine Oil Cooler Included: No
  • Fin Wave Height (in): 0.2
  • Core Length (in): 16.73
  • Outlet Diameter (in): 1.32
  • Total Tube Count: 111
  • Fin Count (every 4"): 78
  • Core Height (in): 28.6
  • Transmission Oil Cooler Included: No
  • Core Thickness (in): 0.63
  • Flow Configuration: Downflow
  • Tube Width X Height: 16x1.5
  • Fin Wave Pitch: 2.6
  • Top Header: 2.02x29.88
  • Outlet Connection Type: Hose Clamp
  • Tube Count (every 4"): 16
  • No. Of Rows: 1
  • Core Material: Aluminum
  • Inlet Connection Type: Hose Clamp
  • Total Fin Row Count: 112

Package Details

  • Part Number: 13317
  • 13-15 MZ C.X-5 2.0L L4 A/MT 1R PA RAD
  • Package L x W x H: 24.02" x 6.69" x 31.10"
  • Package Weight: 11.51 lbs.

Interchanges

  • DENSO: 221-9300
  • APDI: 8013317
  • Spectra Premium: CU13317
  • Partslink: MA3010235
  • Mazda: PE01-15-200A
  • Mazda: PE01-15-200B

Vehicle Fitment Table

Year Make Model Position Fitment Precision Note
2013 Mazda CX-5 Grand Touring; 2.0L L4 1998cc 122ci; Sport Utility; 2.0L L4 1998cc 122ci, Primary / Touring; 2.0L L4 1998cc 122ci; Sport Utility; 2.0L L4 1998cc 122ci, Primary
2013 Mazda CX-5 Sport; 2.0L L4 1998cc 122ci; Sport Utility; 2.0L L4 1998cc 122ci, Primary
2014 Mazda CX-5 Grand Touring; 2.5L L4 2488cc 152ci; Sport Utility; 2.5L L4 2488cc 152ci, Primary / Touring; 2.5L L4 2488cc 152ci; Sport Utility; 2.5L L4 2488cc 152ci, Primary
2014 Mazda CX-5 Sport; 2.0L L4 1998cc 122ci; Sport Utility; 2.0L L4 1998cc 122ci, Primary
2015 Mazda CX-5 Grand Touring; 2.5L L4 2488cc 152ci; Sport Utility; 2.5L L4 2488cc 152ci, Primary / Touring; 2.5L L4 2488cc 152ci; Sport Utility; 2.5L L4 2488cc 152ci, Primary
2015 Mazda CX-5 Sport; 2.0L L4 1998cc 122ci; Sport Utility; 2.0L L4 1998cc 122ci, Primary
2015 Mazda CX-5 Sport; 2.5L L4 2488cc 152ci; Sport Utility; 2.5L L4 2488cc 152ci, Primary
2016 Mazda CX-5 Grand Touring; 2.5L L4 2488cc 152ci; Sport Utility; 2.5L L4 2488cc 152ci, Primary / Touring; 2.5L L4 2488cc 152ci; Sport Utility; 2.5L L4 2488cc 152ci, Primary
2016 Mazda CX-5 Sport; 2.0L L4 1998cc 122ci; Sport Utility; 2.0L L4 1998cc 122ci, Primary
2016 Mazda CX-5 Sport; 2.5L L4 2488cc 152ci; Sport Utility; 2.5L L4 2488cc 152ci, Primary

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 13317.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
