Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

• Core Thickness (in): 0.63
• Core Material: Aluminum
• TOC Inlet Diameter: 0.39
• Inlet Diameter: 1.35
• TOC Inlet Fitting Design: Hose Clamp
• Tube Width X Height: 0.629*0.055
• Inlet Fitting Design: Hose Clamp
• Transmission Oil Cooler Distance between Fittings: 8.86
• Transmission Oil Cooler Type: Concentric
• Outlet Fitting Design: Hose Clamp
• Fin Height: 0.21
• Flow Configuration: Crossflow
• TOC Outlet Fitting Design: Hose Clamp
• TOC Outlet Diameter: 0.39
• Tank Material: Plastic
• Core Height (in): 15.43
• Outlet Diamter: 1.35
• No. Of Rows: 1
• Core Length (in): 23.5

Package Details

• Part Number: 13255

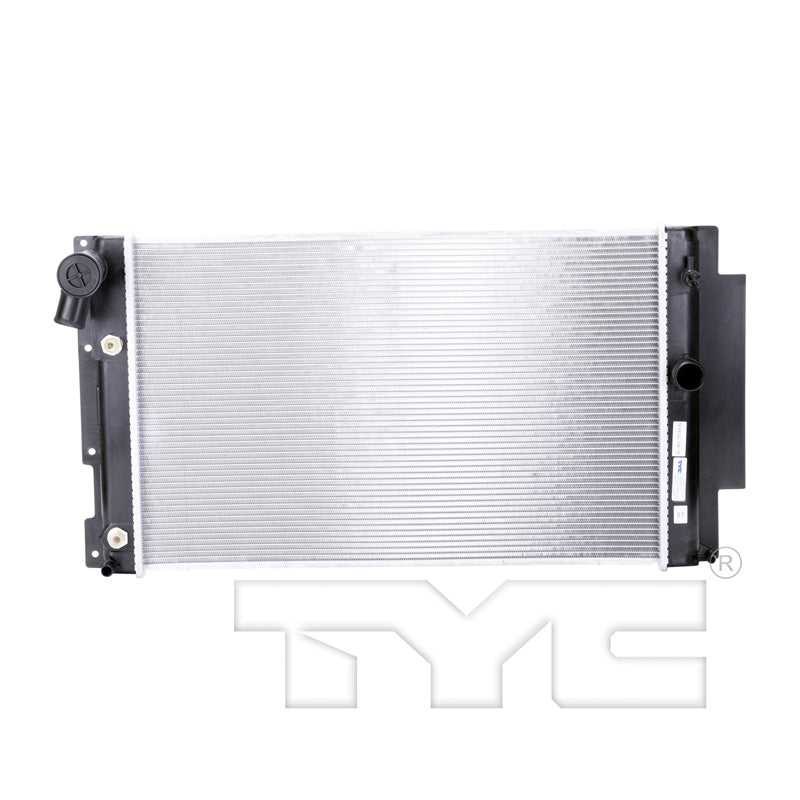

• 11-16 SC TC 2.5L L4 A/MT 1R PA(w/ TOC) RAD
• Package L x W x H: 17.32" x 6.50" x 32.28"
• Package Weight: 8.99 lbs.

Interchanges

• Scion: 16400-36190
• DENSO: 221-9281
• APDI: 8013255
• Spectra Premium: CU13255
• Partslink: SC3010107

Vehicle Fitment Table

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 13255.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
