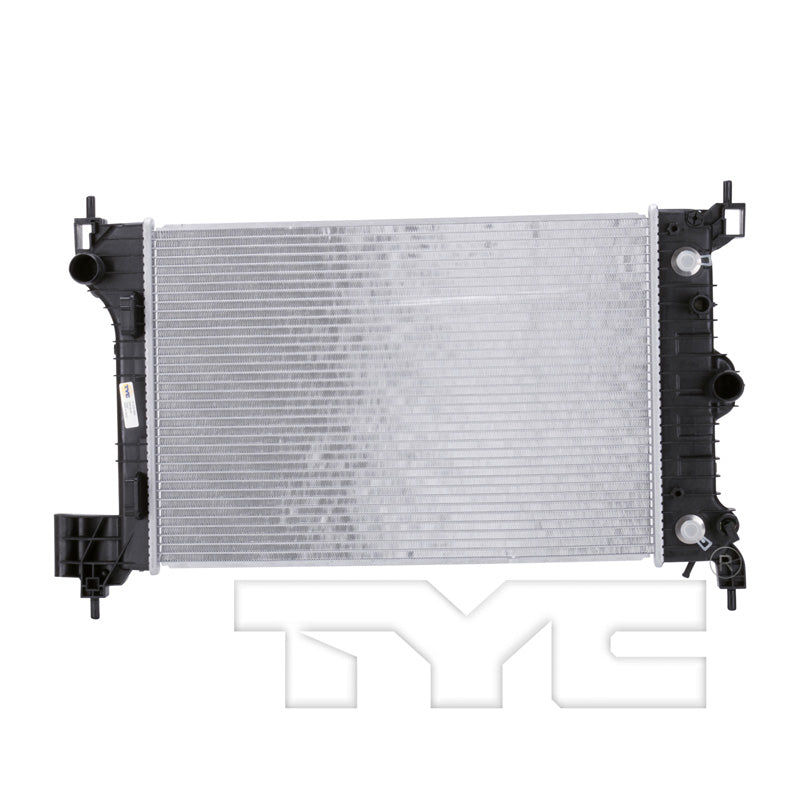

TYC 13247 Radiator Assembly for 2012-2018 Chevrolet Sonic

TYC 13247 Radiator Assembly for 2012-2018 Chevrolet Sonic
    TYC 13247 Radiator Assembly for 2012-2018 Chevrolet Sonic
TYC 13247 Radiator Assembly for 2012-2018 Chevrolet Sonic
Brand: TYC
$251.97 CAD
$251.97 CAD
Shipping calculated at checkout.

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.

13247
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Product Description

Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

  • Core Thickness (in): 0.63
  • Transmission Oil Cooler Type: Plate Oil Cooler
  • Core Length (in): 21.65
  • Fin Count (every 4"): 75
  • Fin Wave Pitch: 2.7
  • Outlet Diameter (in): 1.34
  • Core Height (in): 14.49
  • Transmission Oil Cooler Included: Yes
  • Inlet Diameter (in): 1.34
  • Fin Wave Height (in): 0.31
  • Top Header: 1.43x15.69
  • Inlet Connection Type: Hose Clamp
  • Total Fin Row Count: 37
  • Core Material: Aluminum
  • Toc Inlet Type: Quick Connect
  • TOC Outlet Diameter (IN): 0.37
  • Flow Configuration: Crossflow
  • Toc Outlet Type: Quick Connect
  • Outlet Connection Type: Hose Clamp
  • Tube Count (every 4"): 10
  • Engine Oil Cooler Included: No
  • Total Tube Count: 36
  • Toc Distance (in): 11.50
  • Bottom Header: 1.79x15.69
  • TOC Inlet Diameter (IN): 0.37
  • Tube Width X Height: 16x2
  • No. Of Rows: 1

Package Details

  • Part Number: 13247
  • 12-19 CV SONC 1.8L L4 AT 1R PA (w/ TOC) RAD
  • Package L x W x H: 20.08" x 5.71" x 31.69"
  • Package Weight: 8.20 lbs.

Interchanges

  • DPI (DataPoint Inc): 13247
  • DENSO: 221-9276
  • APDI: 8013247
  • Chevrolet: 95316047
  • Spectra Premium: CU13247
  • Partslink: GM3010546

Vehicle Fitment Table

Year Make Model Position Fitment Precision Note
2012 Chevrolet Sonic LS; 1.8L L4 1796cc 110ci; Hatchback; Automatic, Primary
2012 Chevrolet Sonic LS; 1.8L L4 1796cc 110ci; Sedan; Automatic, Primary / LT; 1.8L L4 1796cc 110ci; Hatchback; Automatic, Primary / LT; 1.8L L4 1796cc 110ci; Sedan; Automatic, Primary
2012 Chevrolet Sonic LTZ; 1.8L L4 1796cc 110ci; Hatchback; Automatic, Primary / LTZ; 1.8L L4 1796cc 110ci; Sedan; Automatic, Primary
2013 Chevrolet Sonic LS; 1.8L L4 1796cc 110ci; Hatchback; Automatic, Primary
2013 Chevrolet Sonic LS; 1.8L L4 1796cc 110ci; Sedan; Automatic, Primary / LT; 1.8L L4 1796cc 110ci; Hatchback; Automatic, Primary / LT; 1.8L L4 1796cc 110ci; Sedan; Automatic, Primary
2013 Chevrolet Sonic LTZ; 1.8L L4 1796cc 110ci; Hatchback; Automatic, Primary / LTZ; 1.8L L4 1796cc 110ci; Sedan; Automatic, Primary
2014 Chevrolet Sonic LS; 1.8L L4 1796cc 110ci; Hatchback; Automatic, Primary
2014 Chevrolet Sonic LS; 1.8L L4 1796cc 110ci; Sedan; Automatic, Primary / LT; 1.8L L4 1796cc 110ci; Hatchback; Automatic, Primary / LT; 1.8L L4 1796cc 110ci; Sedan; Automatic, Primary
2014 Chevrolet Sonic LTZ; 1.8L L4 1796cc 110ci; Hatchback; Automatic, Primary / LTZ; 1.8L L4 1796cc 110ci; Sedan; Automatic, Primary
2015 Chevrolet Sonic LS; 1.8L L4 1796cc 110ci; Hatchback; Automatic, Primary
2015 Chevrolet Sonic LS; 1.8L L4 1796cc 110ci; Sedan; Automatic, Primary / LT; 1.8L L4 1796cc 110ci; Hatchback; Automatic, Primary / LT; 1.8L L4 1796cc 110ci; Sedan; Automatic, Primary
2016 Chevrolet Sonic LS; 1.8L L4 1796cc 110ci; Hatchback; Automatic, Primary
2016 Chevrolet Sonic LS; 1.8L L4 1796cc 110ci; Sedan; Automatic, Primary / LT; 1.8L L4 1796cc 110ci; Hatchback; Automatic, Primary / LT; 1.8L L4 1796cc 110ci; Sedan; Automatic, Primary
2017 Chevrolet Sonic LS; 1.8L L4 1796cc 110ci; Sedan; Automatic, Primary / LT; 1.8L L4 1796cc 110ci; Hatchback; Automatic, Primary / LT; 1.8L L4 1796cc 110ci; Sedan; Automatic, Primary
2018 Chevrolet Sonic LS; 1.8L L4 1796cc 110ci; Sedan; Automatic, Primary / LT; 1.8L L4 1796cc 110ci; Hatchback; Automatic, Primary / LT; 1.8L L4 1796cc 110ci; Sedan; Automatic, Primary

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 13247.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
