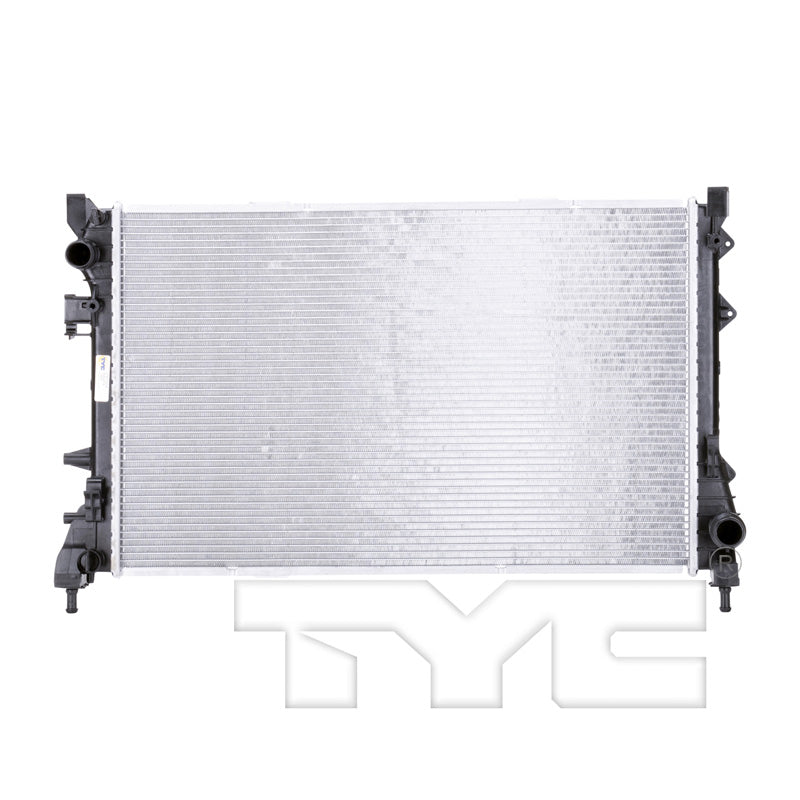

TYC 13245 Radiator Assembly for 2012-2019 Fiat 500

TYC 13245 Radiator Assembly for 2012-2019 Fiat 500
    TYC 13245 Radiator Assembly for 2012-2019 Fiat 500
TYC 13245 Radiator Assembly for 2012-2019 Fiat 500
Brand: TYC
$183.60 CAD
$183.60 CAD
Shipping calculated at checkout.

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.

13245
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Product Description

Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

  • Fin Wave Pitch: 2.2
  • Total Tube Count: 49
  • Flow Configuration: Crossflow
  • Core Length (in): 24.41
  • Core Height (in): 15.3
  • Fin Wave Height (in): 0.25
  • Inlet Connection Type: Hose Clamp
  • Total Fin Row Count: 50
  • Transmission Oil Cooler Included: No
  • Top Header: 1.45x16.08
  • Bottom Header: 1.45x16.08
  • Inlet Diameter (in): 1.18
  • Fin Count (every 4"): 92
  • Tube Count (every 4"): 13
  • No. Of Rows: 1
  • Tube Width X Height: 16x1.5
  • Core Material: Aluminum
  • Engine Oil Cooler Included: No
  • Outlet Diameter (in): 1.28
  • Outlet Connection Type: Quick Connect (Spring Lock)
  • Core Thickness (in): 0.63

Package Details

  • Part Number: 13245
  • 12-19 FT 5.0.0 HB/CONV 1.4L/1.4L TUR A/MT 1R PA RAD
  • Package L x W x H: 19.49" x 6.10" x 30.71"
  • Package Weight: 8.40 lbs.

Interchanges

  • DENSO: 221-9428
  • Fiat: 55111352AA
  • APDI: 8013245
  • Spectra Premium: CU13245
  • Partslink: FI3010100

Vehicle Fitment Table

Year Make Model Position Fitment Precision Note
2012 Fiat 500 Abarth; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary / Lounge; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary / Pop; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary / c Lounge; 1.4L L4 1368cc 83ci; Convertible; 1.4L L4 1368cc 83ci, Primary / c Pop; 1.4L L4 1368cc 83ci; Convertible; 1.4L L4 1368cc 83ci, Primary
2012 Fiat 500 c Gucci; 1.4L L4 1368cc 83ci; Convertible; 1.4L L4 1368cc 83ci, Primary
2012 Fiat 500 Gucci; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary
2012 Fiat 500 Sport; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary
2013 Fiat 500 Abarth Cabrio; 1.4L L4 1368cc 83ci; Convertible; 1.4L L4 1368cc 83ci, Primary
2013 Fiat 500 Abarth; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary / Lounge; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary / Pop; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary / c Lounge; 1.4L L4 1368cc 83ci; Convertible; 1.4L L4 1368cc 83ci, Primary / c Pop; 1.4L L4 1368cc 83ci; Convertible; 1.4L L4 1368cc 83ci, Primary
2013 Fiat 500 E; Hatchback, Primary
2013 Fiat 500 Gucci; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary
2013 Fiat 500 Sport; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary
2013 Fiat 500 Turbo; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary
2014 Fiat 500 Abarth Cabrio; 1.4L L4 1368cc 83ci; Convertible; 1.4L L4 1368cc 83ci, Primary
2014 Fiat 500 Abarth; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary / Lounge; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary / Pop; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary / c Lounge; 1.4L L4 1368cc 83ci; Convertible; 1.4L L4 1368cc 83ci, Primary / c Pop; 1.4L L4 1368cc 83ci; Convertible; 1.4L L4 1368cc 83ci, Primary
2014 Fiat 500 E; Hatchback, Primary
2014 Fiat 500 Sport; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary
2014 Fiat 500 Turbo; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary
2015 Fiat 500 Abarth Cabrio; 1.4L L4 1368cc 83ci; Convertible; 1.4L L4 1368cc 83ci, Primary
2015 Fiat 500 Abarth; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary / Lounge; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary / Pop; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary / c Lounge; 1.4L L4 1368cc 83ci; Convertible; 1.4L L4 1368cc 83ci, Primary / c Pop; 1.4L L4 1368cc 83ci; Convertible; 1.4L L4 1368cc 83ci, Primary
2015 Fiat 500 E; Hatchback, Primary
2015 Fiat 500 Sport; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary
2015 Fiat 500 Turbo; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary
2016 Fiat 500 Abarth Cabrio; 1.4L L4 1368cc 83ci; Convertible; 1.4L L4 1368cc 83ci, Primary
2016 Fiat 500 Abarth; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary / Lounge; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary / Pop; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary / c Lounge; 1.4L L4 1368cc 83ci; Convertible; 1.4L L4 1368cc 83ci, Primary / c Pop; 1.4L L4 1368cc 83ci; Convertible; 1.4L L4 1368cc 83ci, Primary
2016 Fiat 500 E; Hatchback, Primary
2016 Fiat 500 Easy; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary / c Easy; 1.4L L4 1368cc 83ci; Convertible; 1.4L L4 1368cc 83ci, Primary
2016 Fiat 500 Sport; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary
2016 Fiat 500 Turbo; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary
2017 Fiat 500 Abarth Cabrio; 1.4L L4 1368cc 83ci; Convertible; 1.4L L4 1368cc 83ci, Primary
2017 Fiat 500 Abarth; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary / Lounge; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary / Pop; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary / c Lounge; 1.4L L4 1368cc 83ci; Convertible; 1.4L L4 1368cc 83ci, Primary / c Pop; 1.4L L4 1368cc 83ci; Convertible; 1.4L L4 1368cc 83ci, Primary
2017 Fiat 500 E; Hatchback, Primary
2018 Fiat 500 Abarth Cabrio; 1.4L L4 1368cc 83ci; Convertible; 1.4L L4 1368cc 83ci, Primary
2018 Fiat 500 Abarth; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary / Lounge; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary / Pop; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary / c Lounge; 1.4L L4 1368cc 83ci; Convertible; 1.4L L4 1368cc 83ci, Primary / c Pop; 1.4L L4 1368cc 83ci; Convertible; 1.4L L4 1368cc 83ci, Primary
2019 Fiat 500 1957 Retro Edition; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary
2019 Fiat 500 Abarth Cabrio; 1.4L L4 1368cc 83ci; Convertible; 1.4L L4 1368cc 83ci, Primary
2019 Fiat 500 Abarth; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary / Lounge; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary / Pop; 1.4L L4 1368cc 83ci; Hatchback; 1.4L L4 1368cc 83ci, Primary / c Lounge; 1.4L L4 1368cc 83ci; Convertible; 1.4L L4 1368cc 83ci, Primary / c Pop; 1.4L L4 1368cc 83ci; Convertible; 1.4L L4 1368cc 83ci, Primary

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 13245.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
