Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

• Engine Oil Cooler Included: No
• Inlet Diameter (in): 1.38
• Top Header: 2.01x22.66
• Core Height (in): 21.99
• Toc Distance (in): 12.01
• Outlet Diameter (in): 1.38
• Fin Count (every 4"): 85
• Toc Inlet Type: Quick Connect
• Core Material: Aluminum
• No. Of Rows: 1
• Core Thickness (in): 1.02
• Total Fin Row Count: 59
• Inlet Connection Type: Hose Clamp
• Bottom Header: 3.19x22.66
• Outlet Connection Type: Hose Clamp
• Flow Configuration: Crossflow
• Total Tube Count: 58
• Tube Width X Height: 26x2
• Fin Wave Pitch: 2.4
• Transmission Oil Cooler Type: Plate Oil Cooler
• Transmission Oil Cooler Included: Yes
• Toc Outlet Type: Quick Connect
• TOC Outlet Diameter (IN): 0.37
• Core Length (in): 24.45
• Fin Wave Height (in): 0.3
• Tube Count (every 4"): 11
• TOC Inlet Diameter (IN): 0.37

Package Details

• Part Number: 13240

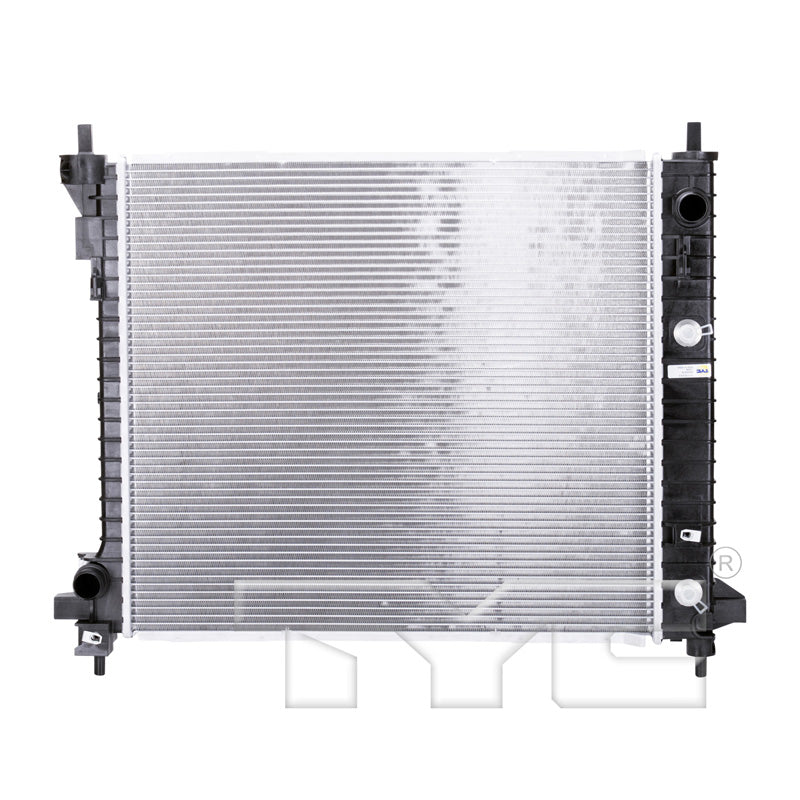

• 10-12 CD S.R.X 3.0L V6 AT 1R PA(w/TOC)RAD
• Package L x W x H: 28.15" x 6.69" x 34.06"
• Package Weight: 17.38 lbs.

Interchanges

• Cadillac: 20818748
• DENSO: 221-9273
• APDI: 8013240
• Spectra Premium: CU13240
• Partslink: GM3010543

Vehicle Fitment Table

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 13240.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
