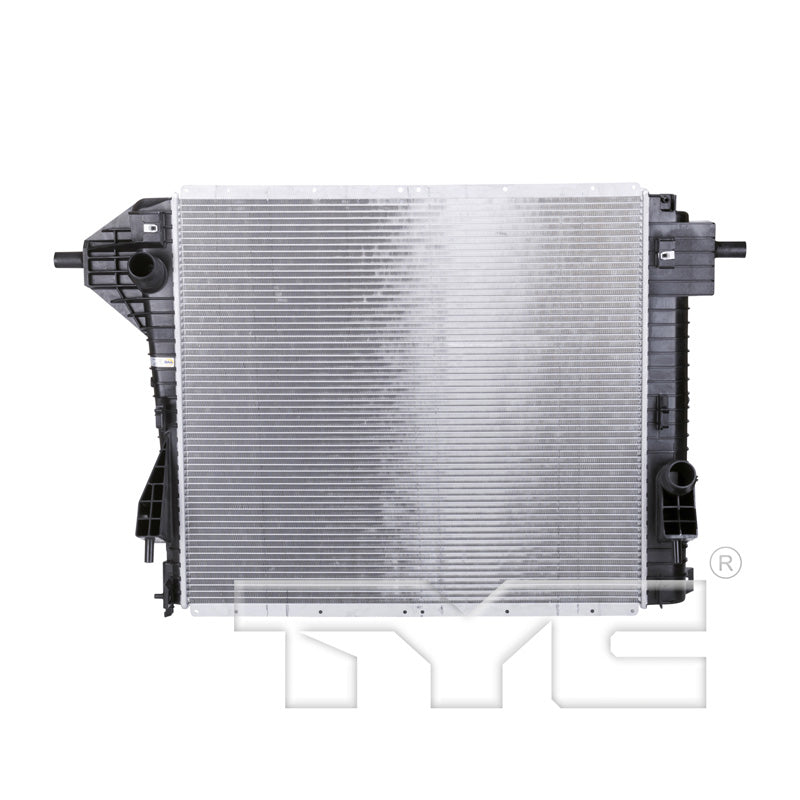

TYC 13231 Radiator Assembly for 2011-2016 Ford F-250 Super Duty

TYC 13231 Radiator Assembly for 2011-2016 Ford F-250 Super Duty
    TYC 13231 Radiator Assembly for 2011-2016 Ford F-250 Super Duty
TYC 13231 Radiator Assembly for 2011-2016 Ford F-250 Super Duty
Brand: TYC
$564.01 CAD
$564.01 CAD
Shipping calculated at checkout.

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.

13231
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Product Description

Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

  • Outlet Diameter (in): 1.83
  • No. Of Rows: 1
  • Core Length (in): 30.51
  • Fin Count (every 4"): 68
  • Toc Outlet Type: Tube fitting
  • Total Fin Row Count: 63
  • Top Header: 1.99x27.89
  • Tube Width X Height: 26x2
  • Transmission Oil Cooler Type: Plate Oil Cooler
  • Core Height (in): 27.2
  • Core Material: Aluminum
  • Core Thickness (in): 1.02
  • Inlet Connection Type: Quick Connect (Spring Lock)
  • Tube Count (every 4"): 10
  • Toc Inlet Type: Tube fitting
  • Engine Oil Cooler Included: No
  • TOC Inlet Diameter (IN): 0.5
  • Flow Configuration: Crossflow
  • Bottom Header: 3.19x27.89
  • Total Tube Count: 62
  • Transmission Oil Cooler Included: Yes
  • Fin Wave Height (in): 0.35
  • Inlet Diameter (in): 1.83
  • Outlet Connection Type: Quick Connect (Spring Lock)
  • Toc Distance (in): 12.01
  • TOC Outlet Diameter (IN): 0.5
  • Fin Wave Pitch: 3

Package Details

  • Part Number: 13231
  • 11-16 FD F-250/F-350 SUPER DUTY 6.2L V8 1R PA (w/ TOC) RAD (A/F:13145)
  • Package L x W x H: 32.09" x 11.22" x 48.62"
  • Package Weight: 34.03 lbs.

Interchanges

  • DPI (DataPoint Inc): 13145
  • DPI (DataPoint Inc): 13231
  • DENSO: 221-9261
  • DENSO: 221-9284
  • APDI: 8013145
  • Ford: BC3Z 8005 H
  • Spectra Premium: CU13231
  • Partslink: FO3010304

Vehicle Fitment Table

Year Make Model Position Fitment Precision Note
2011 Ford F-250 Super Duty King Ranch; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / Lariat; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / Lariat; 6.2L V8 6210cc 379ci; Extended Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XL; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XL; 6.2L V8 6210cc 379ci; Extended Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XL; 6.2L V8 6210cc 379ci; Standard Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XLT; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XLT; 6.2L V8 6210cc 379ci; Extended Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XLT; 6.2L V8 6210cc 379ci; Standard Cab Pickup; 6.2L V8 6210cc 379ci, Primary
2012 Ford F-250 Super Duty King Ranch; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / Lariat; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / Lariat; 6.2L V8 6210cc 379ci; Extended Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XL; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XL; 6.2L V8 6210cc 379ci; Extended Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XL; 6.2L V8 6210cc 379ci; Standard Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XLT; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XLT; 6.2L V8 6210cc 379ci; Extended Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XLT; 6.2L V8 6210cc 379ci; Standard Cab Pickup; 6.2L V8 6210cc 379ci, Primary
2013 Ford F-250 Super Duty King Ranch; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / Lariat; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / Lariat; 6.2L V8 6210cc 379ci; Extended Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XL; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XL; 6.2L V8 6210cc 379ci; Extended Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XL; 6.2L V8 6210cc 379ci; Standard Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XLT; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XLT; 6.2L V8 6210cc 379ci; Extended Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XLT; 6.2L V8 6210cc 379ci; Standard Cab Pickup; 6.2L V8 6210cc 379ci, Primary
2013 Ford F-250 Super Duty Platinum; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary
2014 Ford F-250 Super Duty King Ranch; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / Lariat; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / Lariat; 6.2L V8 6210cc 379ci; Extended Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XL; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XL; 6.2L V8 6210cc 379ci; Extended Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XL; 6.2L V8 6210cc 379ci; Standard Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XLT; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XLT; 6.2L V8 6210cc 379ci; Extended Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XLT; 6.2L V8 6210cc 379ci; Standard Cab Pickup; 6.2L V8 6210cc 379ci, Primary
2014 Ford F-250 Super Duty Platinum; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary
2015 Ford F-250 Super Duty King Ranch; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / Lariat; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / Lariat; 6.2L V8 6210cc 379ci; Extended Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XL; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XL; 6.2L V8 6210cc 379ci; Extended Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XL; 6.2L V8 6210cc 379ci; Standard Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XLT; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XLT; 6.2L V8 6210cc 379ci; Extended Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XLT; 6.2L V8 6210cc 379ci; Standard Cab Pickup; 6.2L V8 6210cc 379ci, Primary
2015 Ford F-250 Super Duty Platinum; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary
2016 Ford F-250 Super Duty King Ranch; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / Lariat; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / Lariat; 6.2L V8 6210cc 379ci; Extended Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XL; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XL; 6.2L V8 6210cc 379ci; Extended Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XL; 6.2L V8 6210cc 379ci; Standard Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XLT; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XLT; 6.2L V8 6210cc 379ci; Extended Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XLT; 6.2L V8 6210cc 379ci; Standard Cab Pickup; 6.2L V8 6210cc 379ci, Primary
2016 Ford F-250 Super Duty Platinum; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary
2011 Ford F-350 Super Duty King Ranch; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / Lariat; 6.2L V8 6210cc 379ci; Cab & Chassis; 6.2L V8 6210cc 379ci, Primary / Lariat; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / Lariat; 6.2L V8 6210cc 379ci; Extended Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XL; 6.2L V8 6210cc 379ci; Cab & Chassis; 6.2L V8 6210cc 379ci, Primary / XL; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XL; 6.2L V8 6210cc 379ci; Extended Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XL; 6.2L V8 6210cc 379ci; Standard Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XLT; 6.2L V8 6210cc 379ci; Cab & Chassis; 6.2L V8 6210cc 379ci, Primary / XLT; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XLT; 6.2L V8 6210cc 379ci; Extended Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XLT; 6.2L V8 6210cc 379ci; Standard Cab Pickup; 6.2L V8 6210cc 379ci, Primary
2012 Ford F-350 Super Duty King Ranch; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / Lariat; 6.2L V8 6210cc 379ci; Cab & Chassis; 6.2L V8 6210cc 379ci, Primary / Lariat; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / Lariat; 6.2L V8 6210cc 379ci; Extended Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XL; 6.2L V8 6210cc 379ci; Cab & Chassis; 6.2L V8 6210cc 379ci, Primary / XL; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XL; 6.2L V8 6210cc 379ci; Extended Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XL; 6.2L V8 6210cc 379ci; Standard Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XLT; 6.2L V8 6210cc 379ci; Cab & Chassis; 6.2L V8 6210cc 379ci, Primary / XLT; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XLT; 6.2L V8 6210cc 379ci; Extended Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XLT; 6.2L V8 6210cc 379ci; Standard Cab Pickup; 6.2L V8 6210cc 379ci, Primary
2013 Ford F-350 Super Duty King Ranch; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / Lariat; 6.2L V8 6210cc 379ci; Cab & Chassis; 6.2L V8 6210cc 379ci, Primary / Lariat; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / Lariat; 6.2L V8 6210cc 379ci; Extended Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XL; 6.2L V8 6210cc 379ci; Cab & Chassis; 6.2L V8 6210cc 379ci, Primary / XL; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XL; 6.2L V8 6210cc 379ci; Extended Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XL; 6.2L V8 6210cc 379ci; Standard Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XLT; 6.2L V8 6210cc 379ci; Cab & Chassis; 6.2L V8 6210cc 379ci, Primary / XLT; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XLT; 6.2L V8 6210cc 379ci; Extended Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XLT; 6.2L V8 6210cc 379ci; Standard Cab Pickup; 6.2L V8 6210cc 379ci, Primary
2013 Ford F-350 Super Duty Platinum; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary
2014 Ford F-350 Super Duty King Ranch; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / Lariat; 6.2L V8 6210cc 379ci; Cab & Chassis; 6.2L V8 6210cc 379ci, Primary / Lariat; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / Lariat; 6.2L V8 6210cc 379ci; Extended Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XL; 6.2L V8 6210cc 379ci; Cab & Chassis; 6.2L V8 6210cc 379ci, Primary / XL; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XL; 6.2L V8 6210cc 379ci; Extended Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XL; 6.2L V8 6210cc 379ci; Standard Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XLT; 6.2L V8 6210cc 379ci; Cab & Chassis; 6.2L V8 6210cc 379ci, Primary / XLT; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XLT; 6.2L V8 6210cc 379ci; Extended Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XLT; 6.2L V8 6210cc 379ci; Standard Cab Pickup; 6.2L V8 6210cc 379ci, Primary
2014 Ford F-350 Super Duty Platinum; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary
2015 Ford F-350 Super Duty King Ranch; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / Lariat; 6.2L V8 6210cc 379ci; Cab & Chassis; 6.2L V8 6210cc 379ci, Primary / Lariat; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / Lariat; 6.2L V8 6210cc 379ci; Extended Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XL; 6.2L V8 6210cc 379ci; Cab & Chassis; 6.2L V8 6210cc 379ci, Primary / XL; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XL; 6.2L V8 6210cc 379ci; Extended Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XL; 6.2L V8 6210cc 379ci; Standard Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XLT; 6.2L V8 6210cc 379ci; Cab & Chassis; 6.2L V8 6210cc 379ci, Primary / XLT; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XLT; 6.2L V8 6210cc 379ci; Extended Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XLT; 6.2L V8 6210cc 379ci; Standard Cab Pickup; 6.2L V8 6210cc 379ci, Primary
2015 Ford F-350 Super Duty Platinum; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary
2016 Ford F-350 Super Duty King Ranch; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / Lariat; 6.2L V8 6210cc 379ci; Cab & Chassis; 6.2L V8 6210cc 379ci, Primary / Lariat; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / Lariat; 6.2L V8 6210cc 379ci; Extended Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XL; 6.2L V8 6210cc 379ci; Cab & Chassis; 6.2L V8 6210cc 379ci, Primary / XL; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XL; 6.2L V8 6210cc 379ci; Extended Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XL; 6.2L V8 6210cc 379ci; Standard Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XLT; 6.2L V8 6210cc 379ci; Cab & Chassis; 6.2L V8 6210cc 379ci, Primary / XLT; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XLT; 6.2L V8 6210cc 379ci; Extended Cab Pickup; 6.2L V8 6210cc 379ci, Primary / XLT; 6.2L V8 6210cc 379ci; Standard Cab Pickup; 6.2L V8 6210cc 379ci, Primary
2016 Ford F-350 Super Duty Platinum; 6.2L V8 6210cc 379ci; Crew Cab Pickup; 6.2L V8 6210cc 379ci, Primary

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 13231.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
