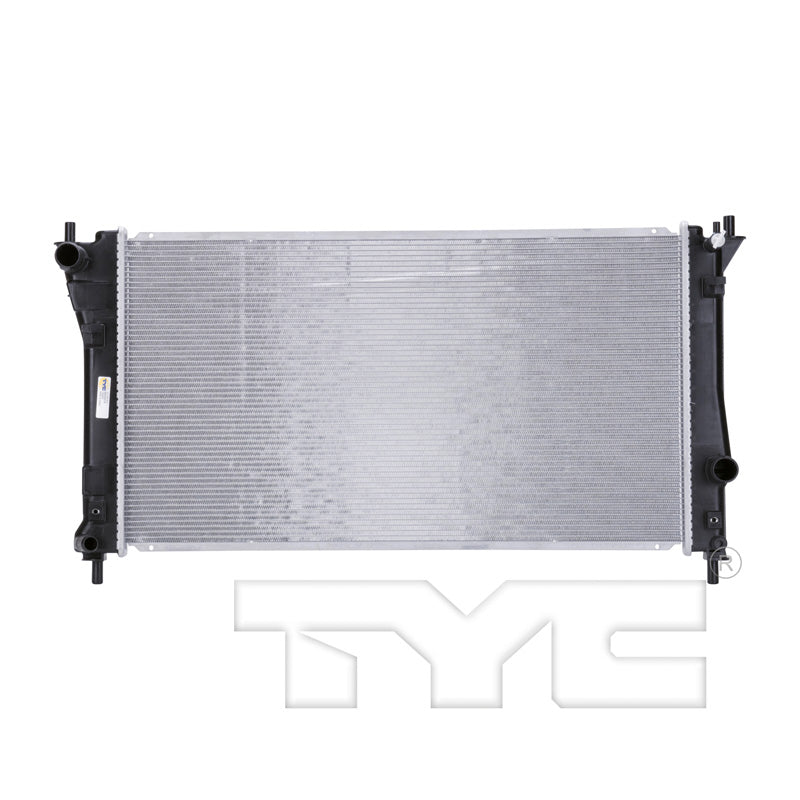

TYC 13220 Radiator Assembly for 2012-2015 Mazda 5

TYC 13220 Radiator Assembly for 2012-2015 Mazda 5
    TYC 13220 Radiator Assembly for 2012-2015 Mazda 5
TYC 13220 Radiator Assembly for 2012-2015 Mazda 5
Brand: TYC
$247.86 CAD
$247.86 CAD
Shipping calculated at checkout.

Verify Your Fitment

See If This Product Fits Your Vehicle

This fits your vehicle!
( CHANGE VEHICLE )
Click here to find fitting parts.
This does not fit your vehicle.
( CHANGE VEHICLE )
Click here to find fitting parts.

13220
Estimate Delivery Time
Enter your postal code to check estimated delivery time.
Estimated Ship Out
Checking ship-out time...

Product Description

Performance Overview

OE-comparable core dimensions to achieve sufficient surface area for optimal cooling. Individually leak-tested to ensure product has no leaks.

Key Features

Specifications

  • Core Length (in): 26.61
  • Inlet Connection Type: Hose Clamp
  • Fin Wave Height (in): 0.2
  • Fin Count (every 4"): 78
  • Outlet Diameter (in): 1.26
  • Total Fin Row Count: 57
  • Fin Wave Pitch: 2.6
  • Engine Oil Cooler Included: No
  • Top Header: 1.44x15.89
  • Total Tube Count: 56
  • Flow Configuration: Crossflow
  • Inlet Diameter (in): 1.26
  • Core Thickness (in): 0.63
  • Bottom Header: 2.02x15.88
  • Outlet Connection Type: Hose Clamp
  • Core Height (in): 14.53
  • Tube Count (every 4"): 16
  • Tube Width X Height: 16x1.5
  • Transmission Oil Cooler Included: No
  • Core Material: Aluminum
  • No. Of Rows: 1

Package Details

  • Part Number: 13220
  • 12-17 MZ MZ-5 2.5L L4 AT 1R PA RAD
  • Package L x W x H: 18.90" x 6.89" x 34.65"
  • Package Weight: 9.24 lbs.

Interchanges

  • DPI (DataPoint Inc): 13220
  • DENSO: 221-9267
  • APDI: 8013220
  • Spectra Premium: CU13220
  • Mazda: LFYA-15-SB0
  • Partslink: MA3010234

Vehicle Fitment Table

Year Make Model Position Fitment Precision Note
2012 Mazda 5 Grand Touring; 2.5L L4 2488cc 152ci; Mini Passenger Van; 2.5L L4 2488cc 152ci, Primary / Sport; 2.5L L4 2488cc 152ci; Mini Passenger Van; 2.5L L4 2488cc 152ci, Primary / Touring; 2.5L L4 2488cc 152ci; Mini Passenger Van; 2.5L L4 2488cc 152ci, Primary
2013 Mazda 5 Grand Touring; 2.5L L4 2488cc 152ci; Mini Passenger Van; 2.5L L4 2488cc 152ci, Primary / Sport; 2.5L L4 2488cc 152ci; Mini Passenger Van; 2.5L L4 2488cc 152ci, Primary / Touring; 2.5L L4 2488cc 152ci; Mini Passenger Van; 2.5L L4 2488cc 152ci, Primary
2014 Mazda 5 Grand Touring; 2.5L L4 2488cc 152ci; Mini Passenger Van; 2.5L L4 2488cc 152ci, Primary / Sport; 2.5L L4 2488cc 152ci; Mini Passenger Van; 2.5L L4 2488cc 152ci, Primary / Touring; 2.5L L4 2488cc 152ci; Mini Passenger Van; 2.5L L4 2488cc 152ci, Primary
2015 Mazda 5 Grand Touring; 2.5L L4 2488cc 152ci; Mini Passenger Van; 2.5L L4 2488cc 152ci, Primary / Sport; 2.5L L4 2488cc 152ci; Mini Passenger Van; 2.5L L4 2488cc 152ci, Primary / Touring; 2.5L L4 2488cc 152ci; Mini Passenger Van; 2.5L L4 2488cc 152ci, Primary

FAQ

Will this fit my vehicle?
Please verify your year, make, model, position, and any fitment notes using the Vehicle Fitment Table above before purchase.

What part number is this?
The listed part number is 13220.

Is this product designed for direct replacement?
Yes. This product is intended to match the compatible vehicle applications listed in the Vehicle Fitment Table.

Should I confirm fitment before ordering?
Yes. Always compare your original part, position, and vehicle details with the Vehicle Fitment Table before ordering.
